Color:
Includes: Lathe machine, Remote control box with speed control, Banjo, Tool rest, Face plate
Does Not Include: Optional bed extensions, Vacuum chuck, Additional tooling
Built for woodturners who need a large capacity lathe with variable speed control and dual control panel operation.

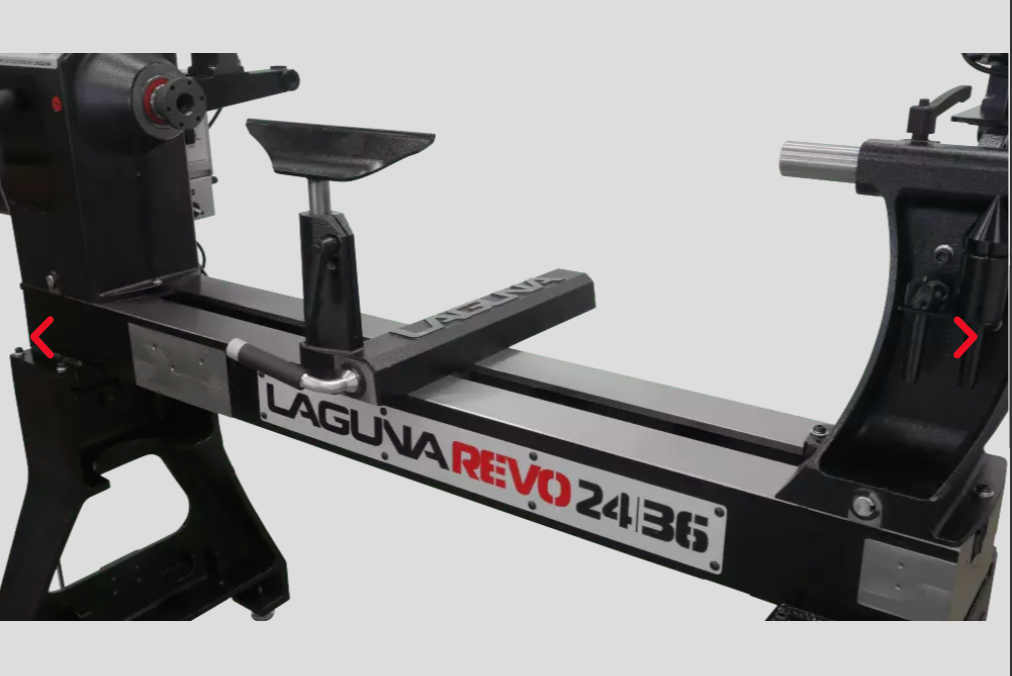

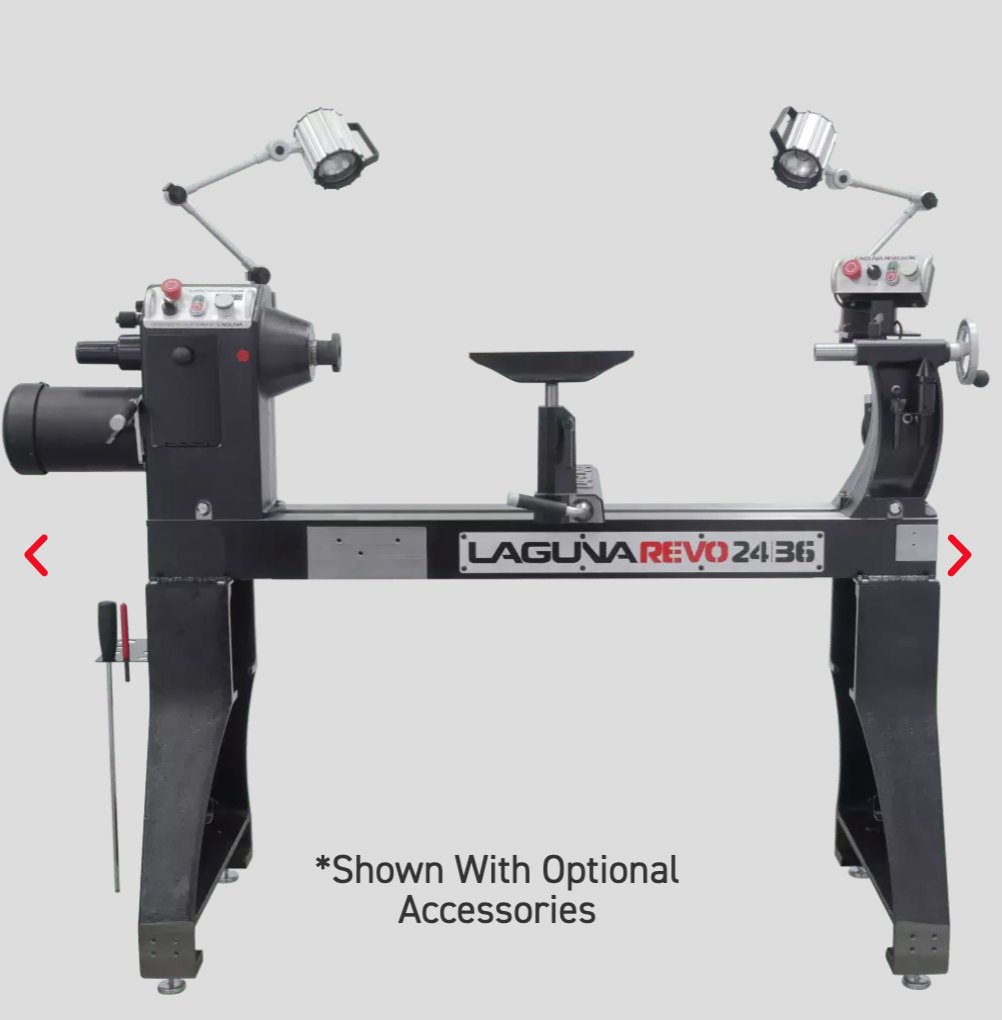

The Lathes Revo 24 x 36 is a full size variable speed wood lathe designed for bowl turning, spindle work, and larger turning projects. It uses a 3HP induction motor with a Delta S1 variable frequency drive that allows the operator to control spindle speed across both low and high speed ranges.

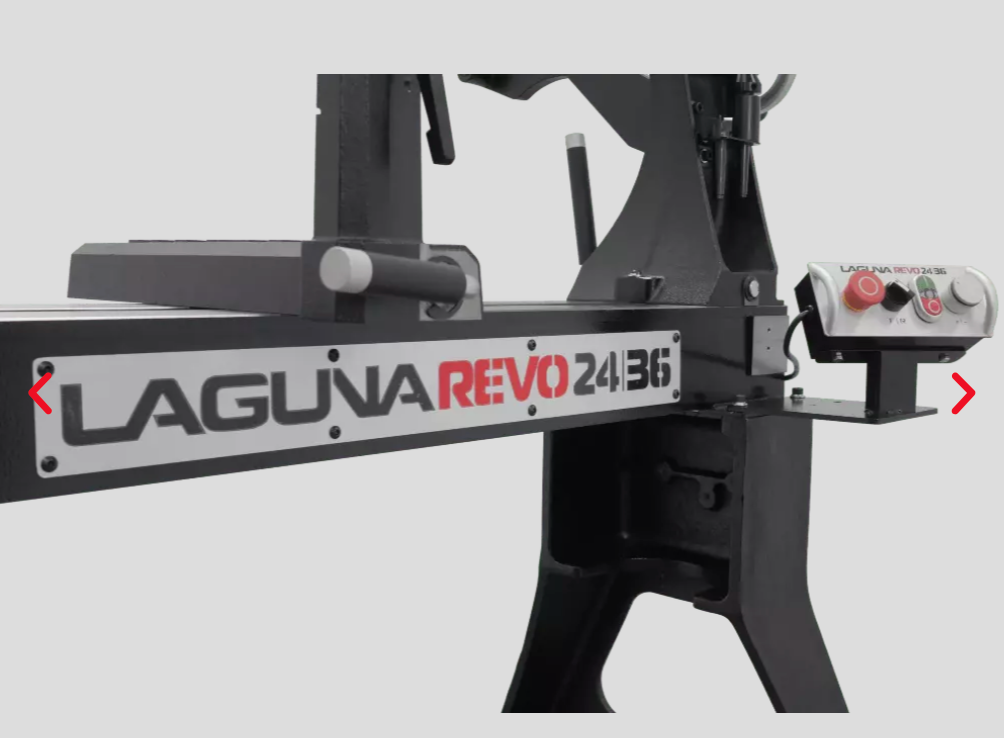

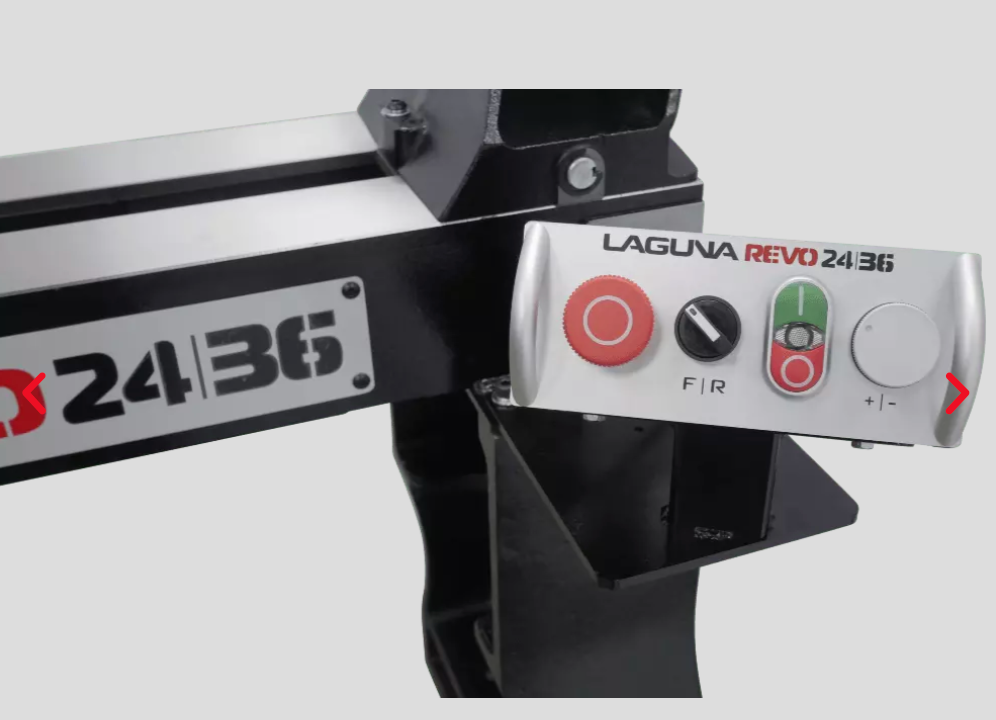

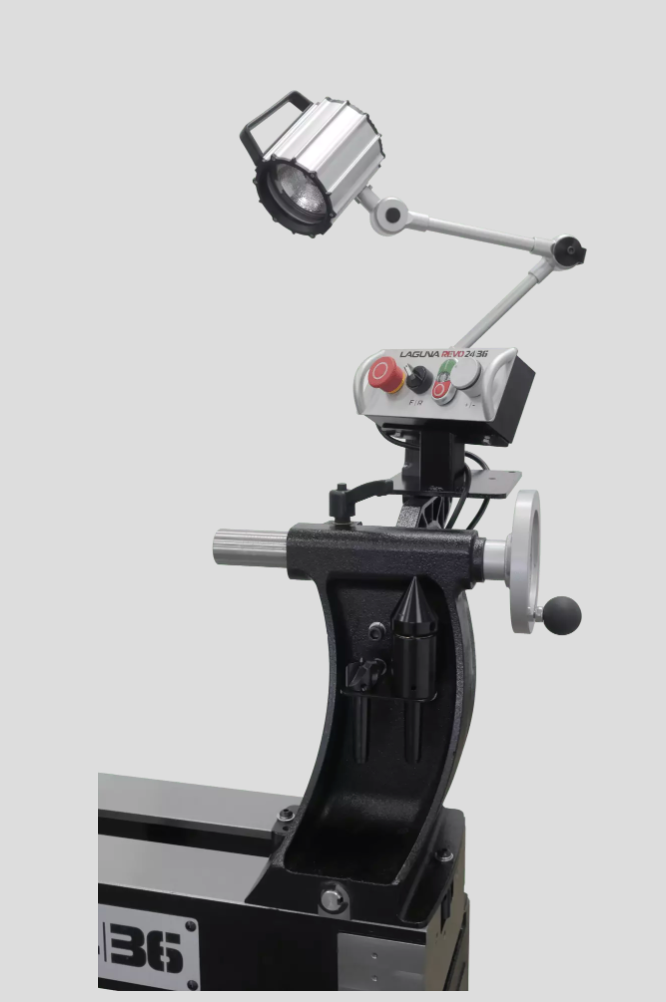

The lathe includes two control panel positions. One panel is mounted at the headstock and the second remote panel can be mounted in a high or low position. The operator can start, stop, and change spindle speed from either location depending on the selected control switch.
In real shop use this machine is commonly used by experienced woodturners and small production shops working on bowls, platters, and long spindle projects where stability and variable speed control are required.
Motor: 3 HP induction motor
Input Power: 220V single phase
Output Power: 3 phase via VFD
Variable Speed Drive: Delta S1 VFD
RPM Range Low: 50 to 1300 RPM
RPM Range High: 135 to 3500 RPM
Swing Over Bed: 24 inches
Distance Between Centers: 36 inches
USED FOR
Not For
If you do not have 220V power, this is not your machine.
Turning Type | Capacity
Bowl Turning | Up to 24 inch diameter
Spindle Turning | Up to 36 inches between centers
Maximum Output: 3 HP motor
Duty Cycle:
Designed for continuous woodturning operation
The Revo 24 x 36 is designed for woodturners who need more swing capacity and a stable platform for larger turning projects. The dual control panel design allows speed changes from either position depending on how the operator is standing at the machine.
Is This Machine Right For You
You May Need A Different Machine If
Technical Specifications for the Lathes Revo 24 x 36 Lathe 220V
Motor: 3 HP induction motor, 1725 RPM
Input Voltage: 220V
Frequency: 60Hz
Phase: 1 phase input, 3 phase output
Variable Frequency Drive: Delta S1
Recommended Breaker: 15 Amp
RPM Low Range: 50 to 1300 RPM
RPM High Range: 135 to 3500 RPM
Distance Between Centers: 36 inches
Swing Over Bed: 24 inches
Swing Over Banjo: 19.75 inches
Maximum Outboard Turning: 38 inches with optional extension
Headstock Spindle: 1.25 inch x 8 TPI RH
Spindle Taper: MT2

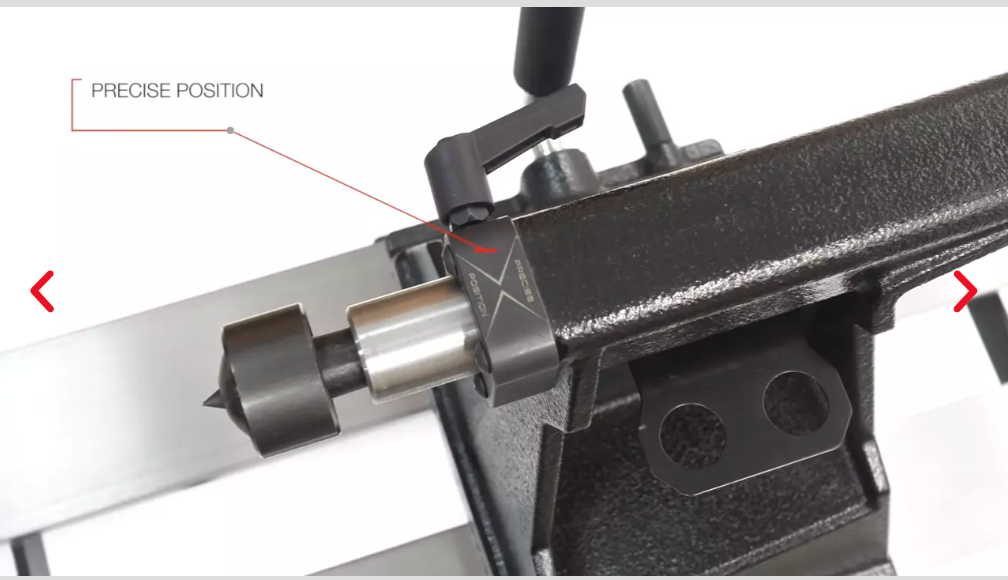

Tailstock Quill: MT2
Tailstock Quill Travel: 4.5 inches
Tool Rest Post Size: 1 inch
Tool Rest Length: 12 inches
Face Plate Diameter: 3 inches
Bed Material: ASTM A36 steel
Front Bearing: TPI Taiwan 6307LLU
Rear Bearing: TPI Taiwan 6205LLU
Spindle Index Positions: 14 / 36 / 48
Headstock Through Bore: 0.375 inch
Floor to Bed Height: 32.5 inches
Floor to Spindle Center: 44.5 inches
Dimensions: 60 x 26 x 52.25 inches
Shipping Weight: 610 lbs
Power Requirements
220V single phase input
15 amp breaker recommended
6-15P plug
Lathes Revo 24 x 36 Lathe Package Includes
Revo 24|36 Lathe 220V Accessories
Upgrade options available via dropdown selections.
Revo Lathe Model Comparison
