Bench Grinder vs Belt Grinder — Which Is Better for Fabrication Work?
Bench Grinder vs Belt Grinder — Which Is Better for Fabrication Work?
Walk into almost any small metal fabrication shop and you’ll see at least one grinder.
But what kind?
Some shops rely heavily on a bench grinder. Others swear by a belt grinder. Many serious fabrication shops eventually own both.
If you’re trying to decide between a bench grinder vs belt grinder for fabrication work, the real answer depends on:
-
What material you’re shaping
-
How aggressive you need to grind
-
Whether you’re cleaning welds or shaping parts
-
How much control and finish quality matter
This guide breaks down the differences in real shop terms — not marketing language — so you can choose the right grinder for your workflow.
What Is a Bench Grinder?
A bench grinder is a stationary grinding machine with:
-
Two grinding wheels
-
Fixed RPM motor
-
Tool rests
-
Spark guards
It’s typically bolted to a workbench or pedestal.
Common wheel types:
-
Coarse grinding wheels
-
Fine grinding wheels
-
Wire wheels
-
Buffing wheels
Bench grinders are simple, affordable, and extremely common in fabrication shops.

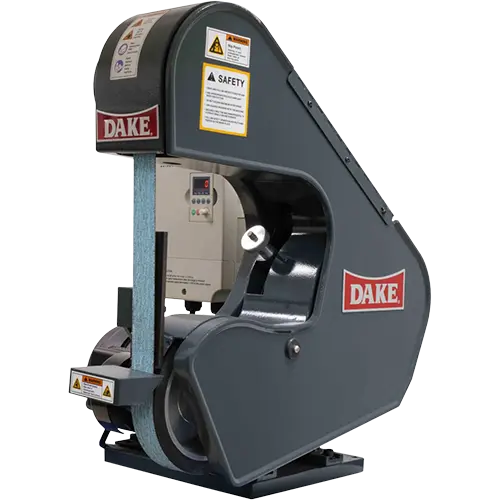

What Is a Belt Grinder?
A belt grinder uses:
-
An abrasive belt
-
Adjustable tracking system
-
Contact wheel or flat platen
-
Variable belt speeds (on some models)
Belt grinders are available in:
-
2x42 hobby class
-
2x72 professional class
-
Industrial multi-head models
They are widely used for:
-
Metal shaping
-
Knife making
-
Weld blending
-
Edge rounding
-
Surface finishing
The abrasive belt runs continuously in one direction, creating a very different grinding action compared to a rotating stone wheel.
Core Difference in Grinding Action
The biggest difference between a bench grinder and belt grinder is how material is removed.
Bench Grinder:
-
Uses a rotating stone wheel
-
Material contacts a fixed circular surface
-
More aggressive point pressure
-
Higher risk of overheating
Belt Grinder:
-
Uses a moving abrasive belt
-
Larger contact surface
-
Smoother material removal
-
Better control over finish
That difference affects accuracy, finish quality, and versatility.
Best For / Not For
Bench Grinder — Best For:
-
Tool sharpening
-
Light deburring
-
Cleaning up small welds
-
Wire wheel applications
-
Shop utility tasks
Bench Grinder — Not For:
-
Large weld blending
-
Heavy material shaping
-
Fine surface finishing
-
Complex contour work
Belt Grinder — Best For:
-
Weld blending
-
Surface finishing
-
Edge shaping
-
Material profiling
-
High-precision shaping
Belt Grinder — Not For:
-
Quick wire wheel cleaning
-
Simple tool touch-ups (unless configured for it)
-
Ultra-low-budget setups
Surface Finish Comparison
One of the biggest differences shows up in finish quality.
Bench grinders tend to:
-
Leave circular scratch patterns
-
Create deeper grind marks
-
Heat material quickly
Belt grinders:
-
Produce linear scratch patterns
-
Offer smoother blending
-
Provide more control over finish progression
If your fabrication work includes visible weld blending or aesthetic finishing, belt grinders generally outperform bench grinders.
Heat Control and Material Integrity
Heat is a major concern in fabrication.
Excessive heat can:
-
Warp thin material
-
Alter metal properties
-
Damage heat-treated parts
Bench grinders concentrate friction in a small area.
This increases heat quickly.
Belt grinders distribute contact across a wider surface and move abrasive constantly.
That reduces localized heat buildup.
If you grind stainless steel or thin sheet metal regularly, belt grinders offer better control.
Weld Blending and Cleanup
Weld cleanup is common in fabrication work.
Bench grinders can:
-
Knock down heavy welds
-
Remove slag
-
Rough-shape beads
But they are less precise for blending.
Belt grinders excel at:
-
Smoothing weld transitions
-
Feathering edges
-
Achieving uniform surface texture
If you fabricate visible structural pieces like gates, railings, or frames, belt grinders produce cleaner final appearance.
Material Removal Rate
Bench grinders remove material aggressively — but in a limited area.
They’re good for:
-
Quick edge knocking
-
Heavy burr removal
Belt grinders can remove material quickly too — especially with coarse belts — but with better surface control.
For serious shaping, belt grinders provide more predictable material removal.
Versatility of Attachments
Bench grinders allow:
-
Wire wheels
-
Buffing wheels
-
Polishing wheels
-
Specialty stones
They function as general-purpose shop tools.
Belt grinders allow:
-
Multiple grit belts
-
Surface conditioning belts
-
Scotch-Brite belts
-
Contact wheels of different diameters
Belt systems offer broader abrasive options.
Precision and Control
Control matters in fabrication.
Bench grinders offer:
-
Fixed angle grinding
-
Limited surface adjustment
Belt grinders offer:
-
Adjustable platen
-
Variable belt speed (in some models)
-
Ability to grind flat or contoured surfaces
If you need tight control over edge geometry, belt grinders outperform bench grinders.
Simple Decision Rules (If X → Then Y)
If you mostly sharpen tools → Bench grinder.
If you regularly blend welds → Belt grinder.
If you need surface finishing → Belt grinder.
If you’re on a tight budget → Bench grinder first.
If aesthetics matter → Belt grinder.
If you need wire wheel cleaning → Bench grinder.
Cost Comparison
Bench Grinder
-
$100–$300 typical range
-
Minimal accessories needed
-
Low upfront investment
Belt Grinder
-
$400–$2,000+ depending on class
-
Abrasive belts cost more than grinding wheels
-
More mechanical complexity
Bench grinders are cheaper upfront.
Belt grinders cost more — but often deliver better fabrication results.
Maintenance Considerations
Bench grinder maintenance:
-
Wheel dressing
-
Bearing lubrication
-
Guard adjustments
Belt grinder maintenance:
-
Belt replacement
-
Tracking adjustments
-
Contact wheel inspection
Both require upkeep, but belt grinders may require more frequent abrasive replacement.
Space Requirements
Bench grinders:
-
Compact footprint
-
Mount directly to bench
Belt grinders:
-
Larger footprint
-
Often pedestal-mounted
-
Require space for belt changes
In small shops with limited space, bench grinders are easier to integrate.
Production Fabrication Environment
In professional fabrication shops, belt grinders are often preferred for:
-
Consistent weld blending
-
Faster finishing
-
Cleaner results
Bench grinders remain common for:
-
Utility work
-
Tool sharpening
-
Wire wheel cleaning
Most production-oriented shops benefit from having both.
When a Bench Grinder Is Enough
A bench grinder may be sufficient if:
-
You fabricate rough structural components
-
Aesthetic finish is secondary
-
Budget is limited
-
You primarily remove slag and burrs
For heavy structural steel with minimal finishing requirements, a bench grinder can handle daily tasks.
When a Belt Grinder Is Worth It
A belt grinder becomes valuable when:
-
You need clean weld transitions
-
Customers expect polished finish
-
You work with stainless steel
-
You fabricate visible architectural metal
For appearance-focused fabrication, belt grinders pay off.
Ergonomics and Workflow
Bench grinders are stationary and typically limited in positioning.
Belt grinders often allow:
-
Angled grinding
-
Contour shaping
-
More natural motion
If you spend significant time finishing parts, belt grinders may reduce operator fatigue.
Fabrication Shop Setup Strategy
If starting a small shop under budget constraints:
Start with:
-
Bench grinder for general utility
-
Angle grinders for heavy removal
Upgrade to:
-
Belt grinder once workload justifies it
For growing fabrication shops, belt grinders often become standard finishing equipment.
Safety Differences
Bench grinders:
-
Risk of wheel shattering
-
Concentrated sparks
-
Guard adjustments critical
Belt grinders:
-
Belt breakage possible
-
Wide spark spread
-
Dust control important
Both require eye protection, guards, and safe operation.
FAQ
Is a belt grinder better than a bench grinder?
For weld blending and finishing, yes. For tool sharpening and wire wheels, bench grinder works well.
Can a bench grinder replace a belt grinder?
Not effectively for fine blending and finishing work.
Are belt grinders worth the cost?
If your fabrication includes visible finishes or stainless work, yes.
Which grinder removes material faster?
Both can remove material quickly, but belt grinders offer more control.
Honest Disqualifier
If your fabrication work:
-
Is purely structural
-
Doesn’t require aesthetic finish
-
Involves minimal grinding
A bench grinder may be all you need.
If your customers expect clean, blended welds and smooth surfaces, belt grinders become essential.
Final Takeaway
Bench grinder vs belt grinder isn’t about which tool is better.
It’s about which tool fits your fabrication workflow.
Bench grinders are:
-
Affordable
-
Durable
-
Versatile utility tools
Belt grinders are:
-
More precise
-
Better for finishing
-
Superior for weld blending
In serious fabrication environments, the best answer is often:
Both.
But if you must choose one, match the grinder to your material, finish requirements, and production goals.
Grinding isn’t just cleanup.
It’s part of your fabrication quality.
Choose the tool that supports the level of work you want your shop to deliver.
