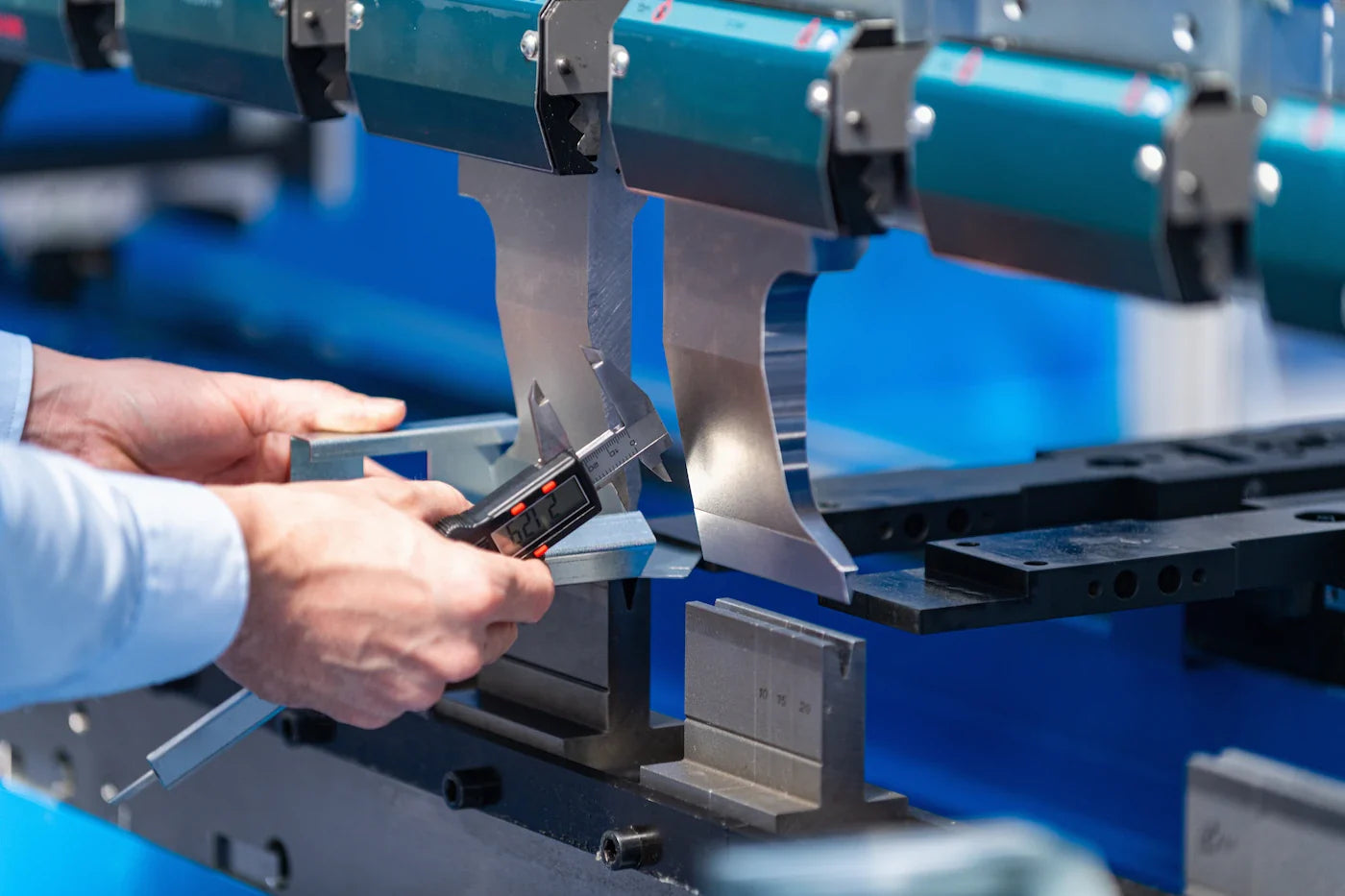

Common Press Brake Mistakes That Cause Bad Bends
Common Press Brake Mistakes That Cause Bad Bends
(And How to Fix Them Before You Scrap More Parts)
If your press brake bends are inconsistent, cracked, overbent, or out of tolerance, the machine usually isn’t the problem.
In most fabrication shops, bad bends come from setup errors — not equipment failure.
When fabricators search for “why are my press brake bends inaccurate” or “common press brake bending mistakes,” they’re usually dealing with one of a handful of repeatable issues.
This guide breaks down the most common press brake mistakes that cause bad bends — and how to correct them before they turn into scrap, rework, and lost profit.
Mistake #1: Incorrect Die Selection
One of the biggest causes of poor bends is choosing the wrong V-die opening.
The V-die width directly affects:
-
Required tonnage
-
Bend radius
-
Springback
-
Angle accuracy
If the die opening is too narrow:
-
Excess tonnage required
-
Risk of cracking
-
Excessive tool wear
If the die opening is too wide:
-
Uncontrolled bend radius
-
Inconsistent angles
-
Poor repeatability
As a general guideline:
V-die width ≈ 8× material thickness (for mild steel air bending)
Using the wrong die opening creates problems that no backgauge adjustment can fix.
Mistake #2: Ignoring Material Thickness Variations
Not all material is exactly what it says it is.
A sheet labeled 0.125" may actually measure:
-
0.118"
-
0.130"
-
Or vary across the sheet
Small thickness differences change:
-
Required tonnage
-
Bend angle
-
Springback behavior
If you’re bending high-tolerance parts, measure actual thickness before setup.
Assuming nominal thickness leads to inconsistent results.
Mistake #3: Underestimating Springback
Springback is the material’s tendency to partially return toward its original shape after bending.
High-strength steel and stainless steel exhibit more springback than mild steel.
If you program or set the brake for exactly 90°, you may get 92° or 93° after release.
Failing to account for springback leads to:
-
Underbent parts
-
Rework
-
Trial-and-error adjustments
The solution is simple:
Overbend slightly to compensate — based on material type.
Springback isn’t a defect. It’s physics.
Mistake #4: Incorrect Tonnage Calculation
Tonnage requirements depend on:
-
Material thickness
-
Material type
-
Bend length
-
Die opening
Underestimating tonnage causes:
-
Incomplete bends
-
Inconsistent angle
-
Machine strain
Overestimating tonnage increases:
-
Tool wear
-
Deflection
-
Energy use
Use tonnage charts or calculation formulas.
Guessing leads to bad bends.
Mistake #5: Machine Deflection Ignored
Long press brakes flex under load.
If you bend near maximum bed length, you may see:
-
More angle at ends
-
Less angle at center
This happens due to frame deflection.
Modern brakes include crowning systems to compensate.
If crowning isn’t adjusted correctly, bend consistency suffers.
Deflection must be managed — especially on long bends.
Mistake #6: Backgauge Misalignment
The backgauge controls flange length.
If it’s:
-
Out of square
-
Misaligned
-
Inconsistently set
Your parts won’t be accurate — even if the angle is correct.
Backgauge errors cause:
-
Dimensional inconsistencies
-
Assembly misalignment
-
Fit-up issues
Regularly verify backgauge calibration.
Mistake #7: Improper Tool Alignment
Upper and lower tooling must be aligned correctly.
If punches and dies are:
-
Misaligned
-
Not seated properly
-
Unevenly clamped
You’ll see:
-
Uneven bends
-
Tool damage
-
Surface marks
Tooling should be:
-
Clean
-
Fully seated
-
Properly tightened
Tool alignment is foundational to good bending.
Mistake #8: Bending Too Close to Holes or Edges
Bending near holes or cutouts without accounting for distortion causes:
-
Warped holes
-
Deformed slots
-
Structural weakness
Rule of thumb:
Keep holes at least 2–3× material thickness away from bend line.
If holes must be close, consider:
-
Pre-bending layout
-
Secondary operations
-
Design modifications
Ignoring bend-to-hole spacing leads to cosmetic and functional issues.
Mistake #9: Not Supporting Large Parts
Large sheets require support during bending.
If material sags:
-
Bend angle shifts
-
Operator struggles
-
Inconsistency increases
For long or heavy parts:
-
Use material supports
-
Use additional operators
-
Control weight distribution
Gravity affects accuracy.
Mistake #10: Rushing Setup
Press brake setup takes time.
Skipping steps to “save time” often results in:
-
Scrap parts
-
Rework
-
Multiple test bends
Proper setup includes:
-
Verifying material thickness
-
Checking tooling
-
Confirming tonnage
-
Adjusting crowning
-
Testing on scrap
Rushing costs more than it saves.
Best For / Not For
This Article Is Best For:
-
Fabrication shops
-
Press brake operators
-
Shops experiencing scrap issues
-
Businesses scaling bending operations
Not For:
-
Hobby brake users
-
Heavy industrial CNC-only environments
These mistakes primarily affect small-to-mid fabrication shops.
Simple Decision Rules
If angle varies across length → Check deflection and crowning.
If bend is under-angled → Account for springback.
If flange lengths are inconsistent → Check backgauge alignment.
If material cracks → Verify die opening and radius.
If parts vary between sheets → Measure material thickness.
Diagnose systematically.
Why These Mistakes Happen
Most bending mistakes come from:
-
Inexperience
-
Assumptions
-
Inconsistent procedures
-
Lack of documentation
Press brake operation is a system.
Angle accuracy depends on:
-
Material
-
Tooling
-
Machine condition
-
Setup discipline
Consistency requires process control.
Preventing Scrap and Rework
To reduce bad bends:
-
Standardize die selection charts
-
Document springback values per material
-
Calibrate backgauges regularly
-
Train operators on tonnage calculation
-
Maintain tooling condition
Small improvements reduce cumulative waste.
The Cost of Bad Bends
Bad bends create:
-
Scrap material
-
Lost time
-
Frustrated operators
-
Missed deadlines
-
Customer dissatisfaction
Press brake mistakes multiply quickly in production.
Improving setup discipline improves profitability.
FAQ
Why are my bends inconsistent?
Likely deflection, incorrect die selection, or material variation.
Why is my angle different in the middle?
Frame deflection without proper crowning adjustment.
Why do my parts crack during bending?
Die opening too narrow or bend radius too tight for material.
How do I improve bend accuracy?
Measure material, choose correct die, account for springback, and calibrate backgauge.
Final Takeaway
Common press brake mistakes that cause bad bends include:
-
Incorrect die selection
-
Ignoring material thickness variation
-
Failing to compensate for springback
-
Miscalculating tonnage
-
Overlooking machine deflection
-
Backgauge misalignment
-
Poor tooling alignment
-
Improper part support
Most bending problems are preventable.
Bad bends are rarely random.
They are the result of setup errors and process gaps.
Standardize your approach.
Measure instead of guessing.
Document springback values.
Maintain tooling alignment.
When your press brake setup becomes disciplined and repeatable, scrap drops — and production becomes predictable.
In fabrication, good bends aren’t luck.
They’re controlled.
