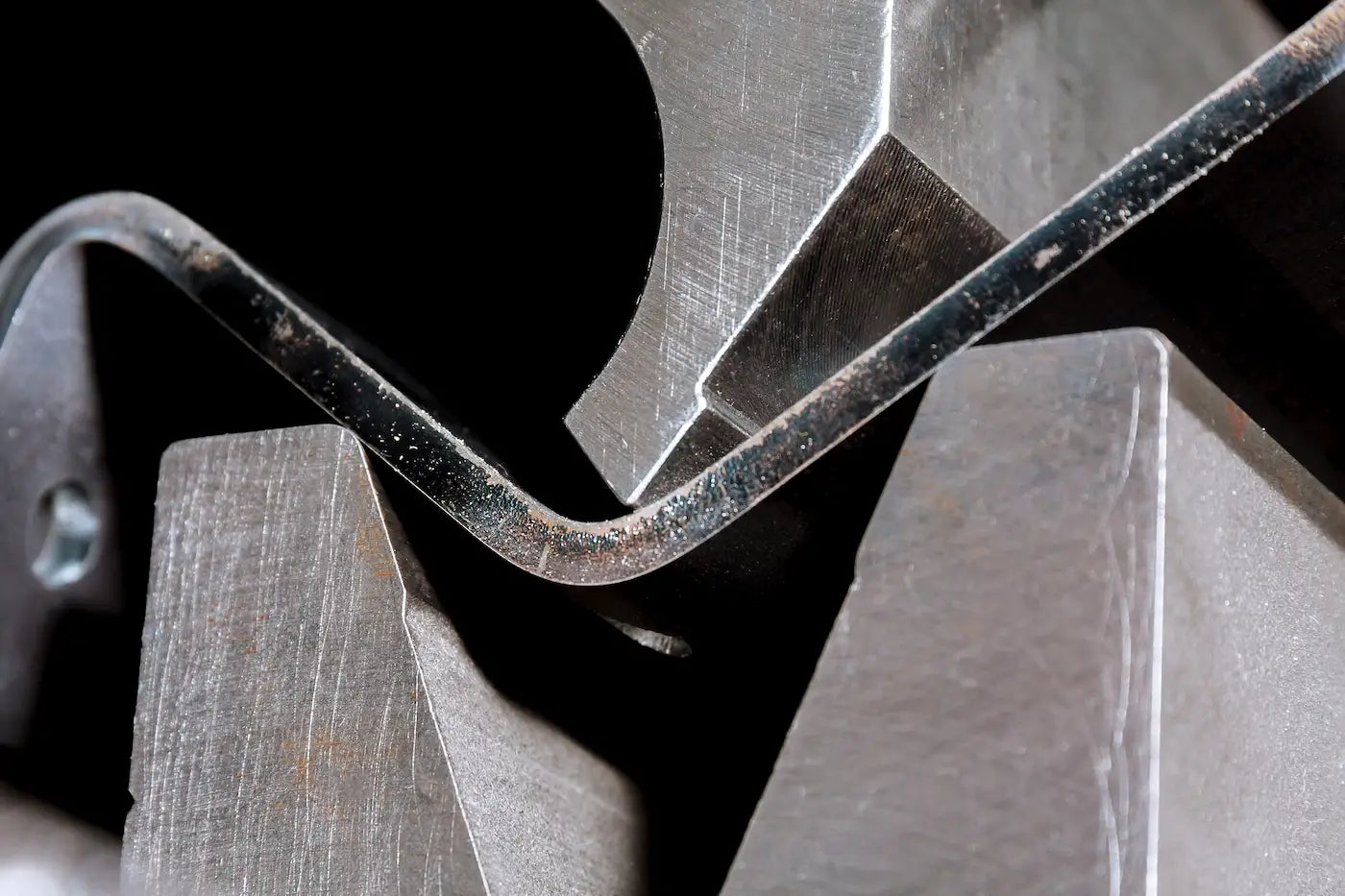

Press Brake Tonnage Explained — How Much Force Do You Really Need?

If you get press brake tonnage wrong, one of two things happens:

• You overspend on a machine that’s oversized for your work.

• Or you underbuy and fight deflection, bad bends, tooling damage, and rework.

Neither is cheap.

Press brake tonnage isn’t about “bigger is better.” It’s about matching force to material, thickness, bend length, and tooling strategy. If you understand those four variables, you’ll stop guessing and start buying correctly.

This guide breaks it down without marketing math.

---

What Press Brake Tonnage Actually Means

Tonnage is the amount of force a press brake can apply across the bend line.

It is typically expressed as:

• Tons per foot

• Total machine tonnage (e.g., 60-ton, 135-ton, 220-ton)

Here’s the critical thing most buyers misunderstand:

Tonnage requirement is calculated per foot of bend length — not just thickness.

A 1/4" plate bent at 12" is completely different from 1/4" bent at 8 feet.

Length multiplies force.

---

The Core Variables That Determine Tonnage

Four inputs control everything:

1. Material type

2. Material thickness

3. Bend length

4. Die opening (V-die width)

Ignore any of these and your math is wrong.

---

The Basic Tonnage Formula (Air Bending)

For air bending mild steel, the simplified shop formula is:

Tonnage per foot = (Thickness² × 575) ÷ Die Opening

This is a practical approximation used across fabrication shops.

But instead of memorizing formulas, understand the pattern:

• Thicker material = exponential increase in tonnage

• Narrower die opening = higher tonnage

• Longer bend = more total force

---

Real-World Tonnage Chart (Air Bending Mild Steel)

Approximate tonnage per foot:

Now multiply by bend length.

If you’re bending 1/4" plate at 4 feet:

50 tons × 4 = 200 tons required.

That surprises people.

---

Best For / Not For

Best For:

• Shops bending consistent material thickness

• Fabricators running repeatable parts

• Production shops quoting structural or plate work

• Buyers comparing 60T vs 135T vs 220T brakes

Not For:

• Shops guessing tonnage based on “maximum thickness”

• Buyers assuming full bed capacity at max thickness

• Anyone ignoring bend length math

---

Why “Max Thickness” Specs Are Misleading

You’ll see machines advertised as:

“Bends 1/4” steel!”

That means nothing without:

• Bed length

• Die opening

• Air vs bottom bending

• Full-length vs short bend

A 60-ton brake might bend 1/4" — but only over a short section.

You cannot bend 8 feet of 1/4" on a 60-ton brake.

Marketing specs rarely clarify that.

---

Air Bending vs Bottoming vs Coining (Tonnage Impact)

You already know bending method changes force requirements.

Here’s how:

• Air bending: lowest tonnage requirement

• Bottoming: ~3× air bending force

• Coining: up to 5–8× air bending force

Most modern shops use air bending because it reduces tonnage and tooling wear.

If you’re calculating tonnage and planning to bottom bend, triple your numbers.

---

Simple Decision Rules (If X → Then Y)

If you bend mostly 16–11 gauge → 60-ton brake may be enough.

If you bend 1/4" regularly at 4+ feet → 135-ton minimum.

If you bend 3/8" plate over 6+ feet → 220-ton class.

If you rarely bend above 10 gauge → Don’t overbuy tonnage.

If you quote structural plate jobs → Build margin into tonnage.

---

Press Brake Length vs Tonnage: The Dangerous Assumption

Many buyers assume:

Longer brake = same thickness capability.

Not true.

Longer bed increases required force.

A 10-foot brake rated at 135 tons:

• That’s 13.5 tons per foot average.

That’s not enough for 1/4" full-length bending.

Always divide total tonnage by bed length.

---

Recommended Setup by Shop Type

Small Fabrication Shop (Light Steel Work)

• 60–80 ton

• 6–8 foot bed

• Air bending

• Focus on gauge material

Avoid oversizing. A 135-ton machine for thin material kills efficiency and costs more.

---

General Fabrication / Mixed Work

• 135-ton

• 10-foot bed

• Covers up to 1/4" across reasonable lengths

• Good balance of flexibility and cost

This is the most common “sweet spot” class.

---

Structural / Heavy Plate Work

• 175–220+ ton

• 10–12 foot bed

• Plate bending capability

• Consider deflection compensation systems

Heavy plate requires rigidity as much as force.

---

Honest Disqualifier

Do not buy a 220-ton brake if:

• You mostly bend 16–12 gauge

• Your parts are under 36" long

• You don’t have 3-phase power capacity

• Your floor and rigging can’t handle the weight

Oversized brakes:

• Consume more power

• Cost more to maintain

• Increase tooling costs

• Reduce precision on thin material

Bigger is not automatically better.

---

The Machine Weight Factor

Force without rigidity causes problems.

A lightweight 135-ton brake may technically hit numbers — but deflect under load.

Machine mass matters.

Heavier frame:

• Less deflection

• Better repeatability

• More consistent angle across length

When comparing brakes of equal tonnage, check machine weight.

---

Common Mistakes That Cause Tonnage Failure

1. Using too narrow a V-die

2. Forgetting bend length math

3. Ignoring material grade differences

4. Not accounting for stainless (requires more force)

5. Attempting bottom bending without recalculating

Stainless steel often requires ~50% more tonnage than mild steel.

Aluminum requires less — but varies by alloy.

---

Tonnage and Tooling Strategy

Die opening directly affects required force.

Standard rule:
Die opening ≈ 8× material thickness (for air bending)

If you reduce die opening:

• You increase tonnage requirement

• You tighten inside radius

Too small of a V-die:

• Tool damage

• Machine strain

• Bad parts

Tooling selection is not independent of tonnage.

---

Deflection Compensation (Crowning)

As tonnage increases across long bends, the bed deflects.

If you don’t compensate:

• Bend angle varies across length

• Middle opens up

• Ends overbend

Modern brakes include:

• Mechanical crowning

• Hydraulic crowning

• CNC compensation

If you’re bending 10–12 feet regularly, this matters.

---

Power Requirements and Shop Infrastructure

High tonnage brakes require:

• Adequate electrical capacity

• 3-phase power in most cases

• Reinforced floor loading

• Rigging access

Do not calculate tonnage without confirming your facility can support the machine.

---

Comparison: 60T vs 135T vs 220T Brake

The 135-ton class covers the widest range of real-world work.

---

When to Size Up (Even If Math Says You Don’t Need To)

• You’re quoting unknown future jobs

• You plan to expand into plate work

• You frequently max out tonnage

• You need margin for stainless

But don’t buy “future capability” if cash flow is tight.

---

When to Size Down

• You only bend gauge sheet

• Your average bend length is under 24"

• You focus on HVAC, light enclosures, brackets

• You prioritize speed and efficiency

Large brakes are slower to cycle for small parts.

---

Tonnage vs Production Efficiency

Higher tonnage machines:

• Cycle slower

• Consume more energy

• Increase tooling wear

Matching machine to workload improves throughput.

Buying oversized equipment can reduce ROI.

---

Real-World Example

Shop A:

• Bends 1/4" × 8 feet regularly.

• Needs ~400 tons for full-length.

• 220-ton brake is insufficient.

Shop B:

• Bends 1/4" × 3 feet.

• Needs ~150 tons.

• 135-ton brake may be borderline.

Length matters as much as thickness.

---

FAQ

How do I calculate press brake tonnage?

Use air bending formula based on thickness, die opening, and length. Or reference standard tonnage charts per foot and multiply by bend length.

Does stainless require more tonnage?

Yes. Typically 30–50% more than mild steel.

Can I bend thicker material by using a narrower die?

Technically yes, but it increases tonnage requirement and risks tooling damage.

Is it safe to run at max tonnage regularly?

No. Running at 100% capacity constantly increases wear and risk of deflection issues.

Should I oversize for safety?

Build margin, but don’t double your requirement unnecessarily.

---

The Bottom Line

Press brake tonnage is not about maximum thickness.

It’s about:

• Thickness

• Length

• Die opening

• Material type

• Bending method

If you size correctly:

• You protect tooling

• You maintain accuracy

• You improve throughput

• You avoid overcapitalizing

If you guess:

• You either overpay

• Or you cripple production

Know your material.
Know your bend length.
Know your method.

Then buy the brake that matches your real workload — not the one with the biggest number on the spec sheet.
