Microprocessor thickness selection sets weld timing automatically, speeding setup for body repair and sheet metal work.
180 spots per hour output keeps panel replacement jobs moving without constant repositioning or cooldown delays.
DESCRIPTION
REAL-WORLD CAPACITY SECTION
SPECIFICATIONS
ACCESSORIES
MANUALS
SHIPPING
WHY BUY FROM US
DESCRIPTION

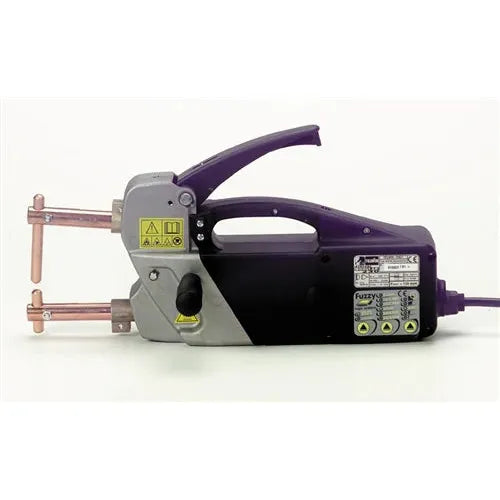

HTP America Quick Spot II Handheld Resistance Spot Welder Product # Quick Spot II
Includes: Quick Spot II spot welder, 4-3/4" straight arms with offset electrodes (Part# 673151), power cord Does Not Include: 30A 220V power plug
Handheld resistance spot welder designed for sheet metal repair and panel work.
The Quick Spot II is a 220V handheld resistance spot welder designed for sheet metal joining without adding filler metal. It produces up to 6000 amps of welding current and uses pressure between copper electrodes to fuse metal panels together.
This machine uses microprocessor control to allow the operator to select the thickness of the panels being welded. Once set, the operator squeezes the handle and the weld cycle completes automatically.
The Quick Spot II is commonly used in automotive body repair, restoration work, and sheet metal fabrication where factory-style spot welds are required and minimal panel distortion is preferred.
Maximum Welding Current: 6000A Welding Voltage: 2.5V Maximum Electrode Pressure: 265 lbs Input Voltage: 220V Input Amperage: 30A Maximum Absorbed Power: 13 kW Rated Power: 2.3 kW @ 50% Spots Per Hour: 180 (continuous mode on 20 gauge panels) Maximum Double-Sided Spot Welding Thickness: 14 gauge + 14 gauge
USED FOR • Automotive body panel repair • Sheet metal fabrication shops • Antique and vehicle restoration work • Home shops performing panel replacement
Not For • Structural welding applications • Thick plate welding • Shops without 220V single phase power
If you do not have 220V single phase power and a 30A circuit, this is not your machine.
REAL-WORLD CAPACITY SECTION
Material Thickness | Performance 20 gauge panels | Up to 180 spots per hour in continuous mode 18 gauge panels | Standard automotive sheet metal repair 16 gauge panels | Limited use depending on joint fitment 14 gauge + 14 gauge | Maximum rated double-sided spot weld capacity
Maximum Output: 6000 Amps
Duty Cycle: Rated Power: 2.3 kW @ 50%
SPECIFICATIONS
Technical Specifications for the HTP America Quick Spot II
Maximum Welding Current 6000A Welding Voltage 2.5V Maximum Electrode Pressure 265 lbs Input Voltage 220V Input Amperage 30A Maximum Absorbed Power 13 kW Rated Power 2.3 kW @ 50% Spots Per Hour 180 (20 gauge panels, continuous mode) Maximum Double-Sided Thickness 14 gauge + 14 gauge Distance Between Arms 4" Dimensions (L x W x H) 17" x 4" x 7" Weight 30 lbs
Power Requirements
220V single phase power 30 amp circuit required Machine ships without a plug Power cord wires: green/yellow (ground), blue (hot leg), brown (hot leg)
ACCESSORIES
HTP America Quick Spot II Package Includes
Quick Spot II spot welder 4-3/4" straight arms with offset electrodes (Part# 673151) Power cord
Additional spot welding arms are available for different access and reach requirements. Upgrade options available via dropdown selections.
MANUALS
HTP AMERICA-Spot Welder-Quick Spot II Product ID 60501 User Manual CA Prop 65 - For Residents of California Warning: Welding and cutting equipment, accessories, and fumes can expose you to chemicals, including Chromium (Hexavalent Compounds), Lead, and Nickel, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, please visitwww.P65Warnings.ca.gov.
