Color:
Includes: Cast iron frame, Air cylinder, Double acting ram, Chrome plated piston rod, Air filter regulator assembly
Does Not Include: Tooling, Nose pieces, Press dies
Built for assembly and light production work that requires controlled pneumatic pressing force.

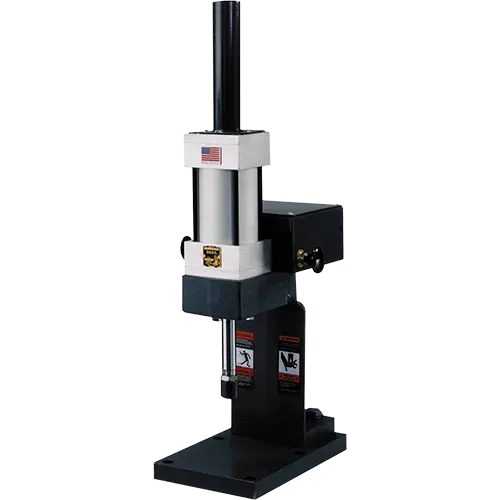

The Model 1-210 air arbor press is a pneumatic press designed for assembly operations, component staking, and light press fitting. It provides up to 1,000 pounds of pressing force using compressed air and a double acting ram.
The non rotating ram design eliminates the need for guide pins in many tooling setups. A threaded rod end allows nose pieces and other tooling to be attached quickly depending on the application.
Dual palm push buttons control ram movement to prevent accidental activation. Ram speed, pressure, and stroke can be adjusted to provide accurate control during repetitive production tasks.
Capacity: 1000 lbsIf you do not have compressed air capable of delivering 90 PSI, this is not your machine.
The Model 1-210 air arbor press is designed for shops that need repeatable pneumatic pressing for assembly or light production work. The air powered ram allows faster operation than manual arbor presses while maintaining controlled pressing force.
Is This Machine Right For You
Technical Specifications for the Air Arbor Press Model 1-210
Capacity: 1000 lbs
Air Pressure: 90 PSI
Ram Travel: 4 inches
Thread: 3/4 inch - 16
Length Of Thread: 1.125 inches
Daylight Without Nose Piece: 8.6875 inches
Daylight With Nose Piece: 8 inches
Nose Piece Diameter: 1.25 inches
Throat: 5 inches
Work Area: 9 inches x 6 inches
Plate Thickness: 1.25 inches
Base: 14.5625 inches x 8 inches
Hole Pattern: 7.25 inches x 3.25 inches
Overall Height: 34 inches
Weight: 110 lbs
Power Requirements
Compressed air supply capable of delivering 90 PSI
Air Arbor Press Model 1-210 Package Includes
Upgrade options available via dropdown selections.
Compare Air Arbor Presses
| Model Number | 1-220 | 1-210 |
|---|---|---|
| Part Number | 901220 | 901210 |
| Capacity (lbs) | 2,000 | 1,000 |
| Air Pressure (psi) | 100 | 90 |
| Ram Travel (in) | 4 | 4 |
| Weight (lbs) | 195 | 110 |
| Thread | 3/4 – 16 | 3/4 – 16 |
| Length Of Thread (in) | 1–1/8 | 1–1/8 |
| Daylight w/o Nose Piece | 8–11/16 | 8–11/16 |
| Daylight w/ Nose Piece | 8 | 8 |
| Nose Piece Diameter (in) | 1–1/4 | 1–1/4 |
| Throat (in) | 5 | 5 |
| Work Area (in) | 9 x 8 | 9 x 6 |
| Plate Thickness (in) | 1–1/2 | 1–1/4 |
| Base (in) | 15–3/4 x 8 | 14–9/16 x 8 |
| Hole Pattern (in) | 7–1/4 x 3–1/4 | 7–1/4 x 3–1/4 |
| Overall Height (in) | 35 | 34 |
Air Arbor Presses 1-210 User Manual
Laguna Tools - Air Arbor Presses Model 1-210 SKU: 901210_User Manual
Laguna Tools - Air Arbor Presses Model 1-210 SKU: 901210_Parts Lists
