Color:
Includes: Cast iron frame, Air cylinder, Double acting ram, Chrome plated piston rod, Air filter regulator assembly
Does Not Include: Tooling, Nose pieces, Press dies
Built for production shops and assembly operations that need controlled pneumatic pressing with repeatable force.

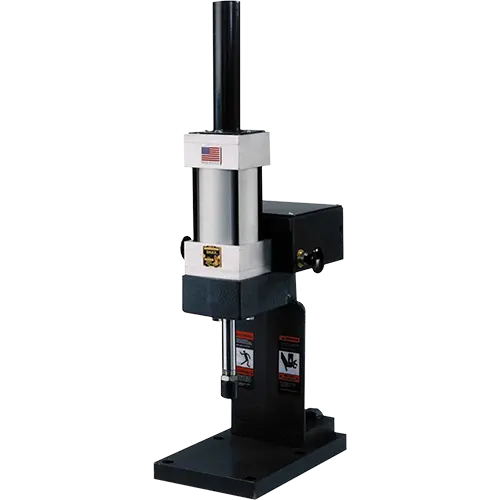

The Model 1-220 air arbor press is a pneumatic press designed for pressing, staking, and assembly operations that require consistent force. The press delivers up to 2,000 pounds of pressing capacity using a compressed air system and a double acting ram.
The non rotating ram design eliminates the need for guide pins in many tooling setups. A threaded rod end allows nose pieces and tooling to be attached quickly depending on the application.
Dual palm push buttons control ram movement and prevent accidental activation. Adjustable ram speed, pressure, and stroke allow operators to control pressing operations accurately for repeatable production work.
Capacity: 2000 lbs
Ram Travel: 4 inches
Air Pressure Requirement: 100 PSI
Throat Depth: 5 inches
Work Area: 9 inches x 8 inches
Thread: 3/4 inch - 16 USED FOR
Not For
If you do not have compressed air capable of delivering 100 PSI, this is not your machine.
The Model 1-220 air arbor press is designed for shops that need controlled pneumatic pressing for assembly or light production work. The air powered ram allows repeatable pressing cycles that are difficult to achieve with manual arbor presses.
Is This Machine Right For You
You May Need A Different Machine If
Technical Specifications for the Air Arbor Press Model 1-220
Capacity: 2000 lbs
Air Pressure: 100 PSI
Ram Travel: 4 inches
Thread: 3/4 inch - 16
Length Of Thread: 1.125 inches
Daylight Without Nose Piece: 8.6875 inches
Daylight With Nose Piece: 8 inches
Nose Piece Diameter: 1.25 inches
Throat: 5 inches
Work Area: 9 inches x 8 inches
Plate Thickness: 1.5 inches
Base: 15.75 inches x 3.25 inches
Hole Pattern: 7.25 inches x 3.25 inches
Overall Height: 35 inches
Weight: 195 lbs
Power Requirements
Compressed air supply capable of delivering 100 PSI
Air Arbor Press Model 1-220 Package Includes
Upgrade options available via dropdown selections.
Compare Air Arbor Presses
| Model Number | 1-220 | 1-210 |
|---|---|---|
| Part Number | 901220 | 901210 |
| Capacity (lbs) | 2,000 | 1,000 |
| Air Pressure (psi) | 100 | 90 |
| Ram Travel (in) | 4 | 4 |
| Weight (lbs) | 195 | 110 |
| Thread | 3/4 – 16 | 3/4 – 16 |
| Length Of Thread (in) | 1–1/8 | 1–1/8 |
| Daylight w/o Nose Piece | 8–11/16 | 8–11/16 |
| Daylight w/ Nose Piece | 8 | 8 |
| Nose Piece Diameter (in) | 1–1/4 | 1–1/4 |
| Throat (in) | 5 | 5 |
| Work Area (in) | 9 x 8 | 9 x 6 |
| Plate Thickness (in) | 1–1/2 | 1–1/4 |
| Base (in) | 15–3/4 x 8 | 14–9/16 x 8 |
| Hole Pattern (in) | 7–1/4 x 3–1/4 | 7–1/4 x 3–1/4 |
| Overall Height (in) | 35 | 34 |
Air Arbor Presses 1-220 User Manual
Laguna Tools - Air Arbor Presses Model 1-220 SKU: 901220_User Manual
Laguna Tools - Air Arbor Presses Model 1-220 SKU: 901220_Parts Lists
