Color:
Includes: Bi metal blade, Vertical cutting table
Does Not Include: Additional blades, Mist system, Replacement cutting fluid
Built for Shops That Need Portable Horizontal and Vertical Metal Cutting

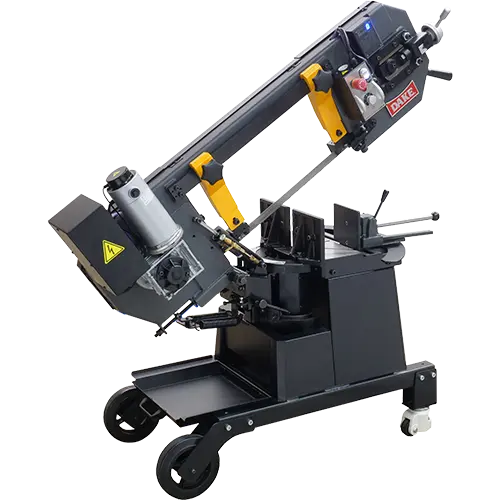

The SE-810 dual mitering bandsaw is a semi automatic horizontal bandsaw designed for cutting steel bar, tubing, and structural material. The machine uses a high torque DC motor with electronic speed control to adjust blade speed based on material type and cutting requirements.
The saw uses a direct drive gear reduction system which eliminates belts and pulleys. Electronic variable speed controls and a digital tachometer allow the operator to monitor blade speed during cutting operations.
In real shop use the SE-810 is used in fabrication shops, maintenance departments, and job sites where portability and the ability to convert between horizontal and vertical cutting are required.
Motor Power: 1.25 HP
Blade Width: 1 inch
Blade Length: 9 ft 10 inch
Blade Speed Range: 65 to 250 ft per minute
Maximum Round Capacity: 10 inch
Voltage: 110V
USED FOR
• Fabrication shops cutting steel bar and tubing
• Maintenance departments and repair shops
• Portable cutting on job sites
• Shops needing both horizontal and vertical cutting
Not For
• Production cutting environments requiring large capacity saws
• Materials larger than listed cutting capacity
• Shops requiring fully automatic feed systems
If you do not have access to a 110V power outlet, this is not your machine.
Material Thickness | Performance
Solid Round 90 degrees | 10 inch
Solid Round 45 degrees | 6 inch
Solid Square 90 degrees | 8 inch x 10 inch
Solid Square 45 degrees | 8 inch x 6 inch
Maximum Output: Determined by blade selection and material type
Duty Cycle:
Designed for intermittent cutting with proper blade selection and cooling.
Technical Specifications for the Dual Mitering Bandsaw Model SE-810
Model Number: SE-810
Part Number: 983113
Motor Power: 1.25 HP
Voltage: 110V
Blade Width: 1 inch
Blade Length: 9 ft 10 inch
Blade Speed Range: 65 to 250 ft per minute
Solid Round Capacity 90 Degrees: 10 inch
Solid Round Capacity 45 Degrees: 6 inch
Solid Square Capacity 90 Degrees: 8 inch x 10 inch
Solid Square Capacity 45 Degrees: 8 inch x 6 inch
Power Requirements
110V single phase electrical service required
Dual Mitering Bandsaw Model SE-810 Package Includes
Bi metal blade
Vertical cutting table
Upgrade options available via dropdown selections.
Laguna Tools - Dual Mitering Bandsaws Model SE-810 SKU: 983113_User Manual
Laguna Tools - Dual Mitering Bandsaws Model SE-810 SKU: 983113_Parts Lists
