Color:
Includes: 1/2 inch keyed chuck, Drift for bit removal, Plexiglas chip and chuck guard
Does Not Include: Drill press vise, Cutting tools, Additional tooling
Built for fabrication shops and maintenance work where controlled drilling and repeatable depth settings are required.
The Laguna Tools Model SB floor drill press is designed for general metalworking and fabrication work. A large diameter spindle supported by multiple bearings provides rigid drilling performance and smooth operation during drilling tasks.
The machine uses a belt drive system with quick release tensioning to allow fast speed adjustments. A locking handle hub and depth adjustment dial help the operator set repeatable drilling depth when performing production drilling operations.
In real shop use this drill press is commonly used for drilling holes in steel plate, brackets, structural parts, and fabricated components.
Drill Capacity: 5/8 inch
Motor Power: 1/2 HP
Speed Range: 240 to 3400 RPM
Number Of Speeds: 9
Spindle Taper: MT2
Spindle Travel: 3.125 inches
Working Diameter: 14.125 inches USED FOR
Not For
The Model SB floor drill press is intended for shops that require accurate drilling with adjustable spindle speeds and controlled depth settings. The belt drive system allows operators to adjust cutting speed based on the material being drilled.
Is This Machine Right For You
You May Need A Different Machine If
Technical Specifications for the Laguna Tools Floor Model Drill Press Model SB
Drill Capacity: 5/8 inch
Motor Power: 1/2 HP
Motor Voltage: 110V / 220V / 440V
Spindle Taper: MT2
Working Diameter: 14.125 inches
Number Of Speeds: 9
Spindle Speed Range: 240 to 3400 RPM
Spindle Travel: 3.125 inches
Column Diameter: 3.125 inches
Table Size: 11.75 inches x 11.75 inches
Base Size: 19.625 inches x 12.5 inches
Spindle To Table Distance: 28.5 inches
Spindle To Base Distance: 49.25 inches
Overall Height: 64 inches
Weight: 230 lbs
Power Requirements
Compatible with 110V, 220V, or 440V power depending on motor wiring configuration.
Laguna Tools Floor Model Drill Press Model SB Package Includes
Upgrade options available via dropdown selections.

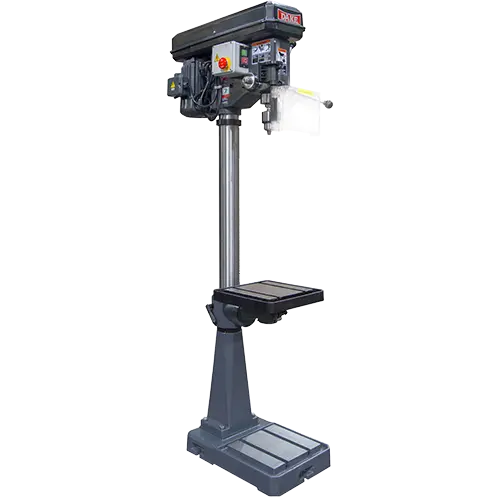

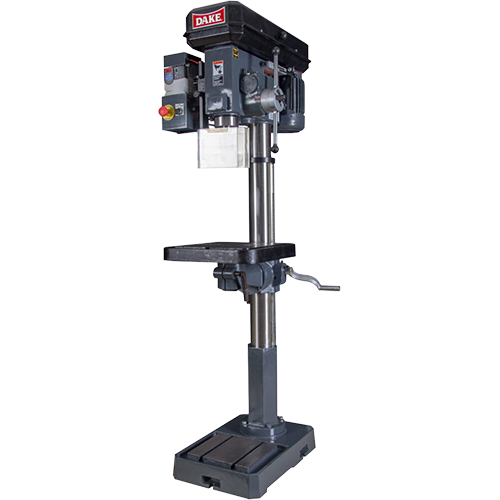

Compare Floor Model Drill Presses
| Model Number | SB-250V | SB-32V | SB-25V | SB-25 | SB-16 |
|---|---|---|---|---|---|
| Part Number | 977701V | 977400V | 977600V | 977600 | 977200 |
| Drill capacity (in) | 1 | 1-1/4 | 1 | 1 | 5/8 |
| Horsepower | 1.5 | 1.5 | 1.5 | 2 | 1/2 |
| Motor | 110V, Single Phase | 110V, Single Phase | 110V, Single Phase | 110V, Single Phase | 110/220/440V |
| Spindle Taper | MT3 | MT4 | MT3 | MT3 | MT2 |
| Working Diameter (in) | 18 | 18 | 18 | 18 | 14–1/8 |
| Number Of Speeds | Variable Speeds | Variable Speeds | Variable Speeds | 9 | 9 |
| Spindle Speed Range | 68–1380 | 46–3,473 | 46–3550 | 270–2000 | 240–3400 |
| Electrics | 120V 1 Phase | 120V 1 Phase | 120V 1 Phase | CE 220/440V | CE 120V |
| Weight (lbs) | 483 | 483 | 397 | 397 | 230 |
| Spindle Travel (in) | 5 | 5–1/4 | 5 | 5 | 3–1/8 |
| Column Diameter (in) | 3–5/8 | 4 | 3–5/8 | 3–5/8 | 3–1/8 |
| Table Depth (in) | 15–3/4 | 15–3/4 | 13–3/4 | 13–3/4 | 11–3/4 |
| Table Width (in) | 15–3/4 | 15–3/4 | 13–3/4 | 13–3/4 | 11–3/4 |
| Base Depth (in) | 23–5/8 | 23–5/8 | 23–5/8 | 23–5/8 | 19–5/8 |
| Base Width (in) | 15 | 15 | 15 | 15 | 12–1/2 |
| Spindle To Table (in) | 28–3/8 | 26–1/4 | 28–3/8 | 28–3/8 | 28–1/2 |
| Spindle To Base (in) | 49–1/4 | 50 | 50 | 50 | 49–1/4 |
| Overall Height (in) | 71 | 71 | 71 | 71 | 64 |
Floor Model Drill Presses User Manual
Laguna Tools - Floor Model Drill Presses Model SB-16 SKU: 977200_User Manual
Laguna Tools - Floor Model Drill Presses Model SB-16 SKU: 977200_Parts Lists
