Color:
Includes: Bi metal blade, Vise, Magnetic starter, Blade tension system, Frame feed control, Flood coolant system
Does Not Include: Casters, Stock stand, Discharge table, Additional blades
Built for Fabrication Shops Requiring Heavy Duty Horizontal Metal Cutting

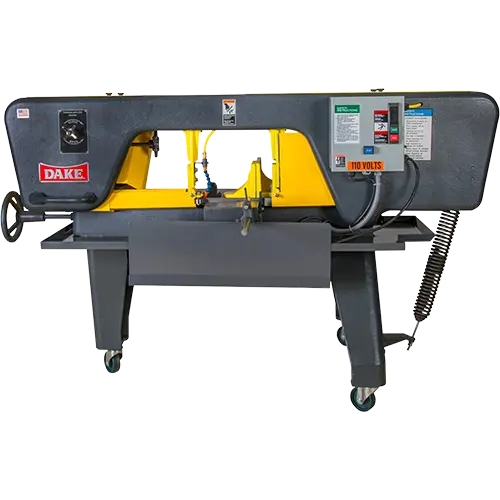

The JH10W1 is a heavy duty horizontal bandsaw designed for cutting steel bar, tubing, and flat stock. The machine uses a rigid cast head frame and large pivot structure to support stable cutting under load during medium production work.
The saw uses a gravity fed hydraulic downfeed system which regulates cutting pressure automatically. Once the cut is completed the machine shuts off, allowing hands free operation during repetitive cutting tasks.
In real shop use the JH10W1 is installed in fabrication shops, maintenance facilities, and manufacturing environments where reliable cutting of round and flat metal stock is required.
Motor Power: 1 HP
Blade Length: 137 inch
Blade Width: 1 inch
Blade Speed Range: 50 / 90 / 160 / 270 ft per minute
Maximum Round Capacity: 10 inch
Maximum Flat Capacity: 4.5 inch x 18 inch
USED FOR
• Fabrication shops cutting round bar and flat stock
• Maintenance and repair departments
• Medium production cutting operations
• Shops needing hydraulic gravity feed cutting
Not For
• Shops without access to 110V electrical service
• Cutting materials larger than machine capacity
• Portable cutting applications
If you do not have access to a 110V power outlet, this is not your machine.
Material Thickness | Performance
Solid Round 90 degrees | 10 inch
Solid Round 45 degrees | 7 inch
Rectangle 90 degrees | 4.5 inch x 18 inch
Rectangle 45 degrees | 4 inch x 10 inch
Maximum Output: Determined by blade selection and material type
Duty Cycle:
Designed for medium production cutting with coolant and proper blade selection.
Technical Specifications for the Heavy Duty Bandsaw Model JH10W1
Model Number: JH10W1
Part Number: 985017
Motor Power: 1 HP
Voltage: 110V
Phase: Single Phase
Blade Width: 1 inch
Blade Length: 137 inch
Maximum Blade Speed: 270 ft per minute
Blade Speeds: 50 / 90 / 160 / 270 ft per minute
Solid Round Capacity 90 Degrees: 10 inch
Solid Round Capacity 45 Degrees: 7 inch
Rectangle Capacity 90 Degrees: 4.5 inch x 18 inch
Rectangle Capacity 45 Degrees: 4 inch x 10 inch
Bed Work Area: 11 inch x 18 inch
Machine Height: 75 inch
Floor Space: 30 inch x 65 inch
Floor to Bed Height: 23.75 inch
Machine Weight: 935 lbs
Power Requirements
110V single phase electrical service required
Heavy Duty Bandsaw Model JH10W1 Package Includes
Bi metal blade
Vise
Magnetic starter
Blade tension system
Frame feed control
Flood coolant system
Upgrade options available via dropdown selections.
Laguna Tools - Heavy Duty Bandsaws Model JH10W1 SKU: 985017_User Manual
Laguna Tools - Heavy Duty Bandsaws Model JH10W1 SKU: 985017_Parts Lists
