Color:
Includes: H-frame press structure, Electric over hydraulic system, Manual operation controls
Does Not Include: Press tooling, Dies, Arbor plates
Built for fabrication and maintenance shops that need controlled hydraulic pressing for small to medium shop tasks.

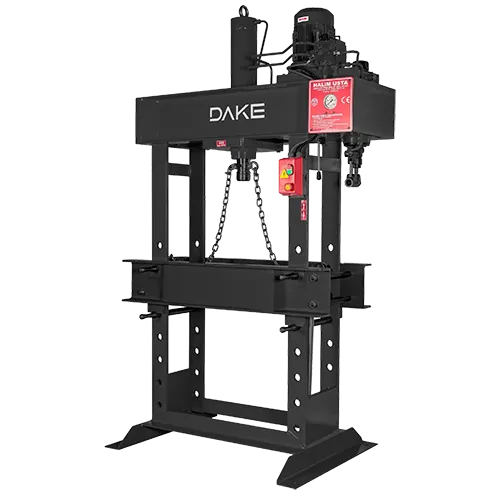

The EM-20 is an H-frame workshop press designed for pressing, straightening, and component installation tasks. The electric over hydraulic system provides controlled pressing force while also allowing manual operation when needed.
A traversing head allows the ram position to move across the press frame to align with the workpiece. This helps reduce setup time and allows the operator to press components without repositioning heavy parts.
In real shop use this type of press is commonly used for installing bearings, removing bushings, straightening metal components, and performing general fabrication press work.
Machine Type: H-frame electric over hydraulic
Capacity: 20 tons
Operation Type: Manual and electric operation
Ram Travel: 300 mm
Head Type: Traversing head USED FOR
Not For
A 20 ton shop press is suited for shops performing routine pressing operations such as bearing installation, shaft removal, and component straightening. The traversing head allows the ram to be aligned with the workpiece without repositioning the material.
Is This Machine Right For You
You May Need A Different Machine If
Technical Specifications for the Heavy Duty Workshop Press EM-20
Machine Type: H-frame electric over hydraulic
Capacity: 20 tons
Operation: Manual and electric operation
Ram Travel: 300 mm
Head Type: Traversing head
Power Requirements
Electric hydraulic power required for powered operation
Heavy Duty Workshop Press EM-20 Package Includes
Upgrade options available via dropdown selections.
Compare Heavy Duty Work Shop Presses
| Model Number | EM-100 | EM-120 | EM-20 | EM-30 | EM-60 | EM-80 | M-20 | M-30 |
|---|---|---|---|---|---|---|---|---|
| Part Number | 970105 | 970114 | 970110 | 970111 | 970112 | 970113 | 970101 | 970102 |
| Capacity (tons) | 100 | 120 | 20 | 30 | 60 | 80 | 20 | 30 |
| Filter Type | Pollution Filter | Pollution Filter | Pollution Filter | Pollution Filter | Pollution Filter | Pollution Filter | Pollution Filter | Pollution Filter |
| Horsepower | 5.5 | 7.5 | 3 | 3 | 4 | 5.5 | N/A | N/A |
| Voltage | 224 V / 3 P 60 HZ | 225 V / 3 P 60 HZ | 220 V / 3 P 60 HZ | 221 V / 3 P 60 HZ | 222 V / 3 P 60 HZ | 223 V / 3 P 60 HZ | N/A | N/A |
| Width Between Uprights (in) | 40 | 47 | 27.5 | 28 | 32 | 36 | 19.5 | 23.5 |
| Min Ram To Table (in) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Max Ram To Table (in) | 35 | 35 | 35 | 35 | 35 | 35 | 27.5 | 27.5 |
| Ram Travel (in) | 15.75 | 15.75 | 15.75 | 15.75 | 15.75 | 15.75 | 6 | 6 |
| Pressing Speed (in/min) | 19.5 | 21 | 7 mm/sec | 18 | 20 | 17.5 | N/A | N/A |
| Min Operating Pressure (PSI) | 580 | 580 | 580 | 580 | 580 | 580 | 435 | 435 |
| Max Operating Pressure (PSI) | 5801 | 5801 | 5801 | 5801 | 5801 | 5801 | 4351 | 4351 |
| Hydraulic Pump (Gal) | 6 | 4 | 1.5 | 1.5 | 2.9 | 3.17 | N/A | N/A |
| Oil Capacity (Gal) | 8 | 34 | 6.6 | 6.6 | 2 | 7 | 0.5 | 0.5 |
| Amp | 8 | 11 | 5 | 5 | 6 | 8 | N/A | N/A |
| Operation | Motor & Hand Operated | Motor & Hand Operated | Motor & Hand Operated | Motor & Hand Operated | Motor & Hand Operated | Motor & Hand Operated | Manual | Manual |
Heavy Duty Work Shop Presses User Manual
Laguna Tools - Heavy Duty Work Shop Presses EM-20 SKU: 971010_User Manual
Warning
This product contains Nickel, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
