Color:
Includes: Wide belt sanding system, Conveyor feed system, Electronic table elevation control
Does Not Include: Sanding belts, Dust collection system, Installation hardware
Built for Fabrication Shops That Need Consistent Metal Finishing

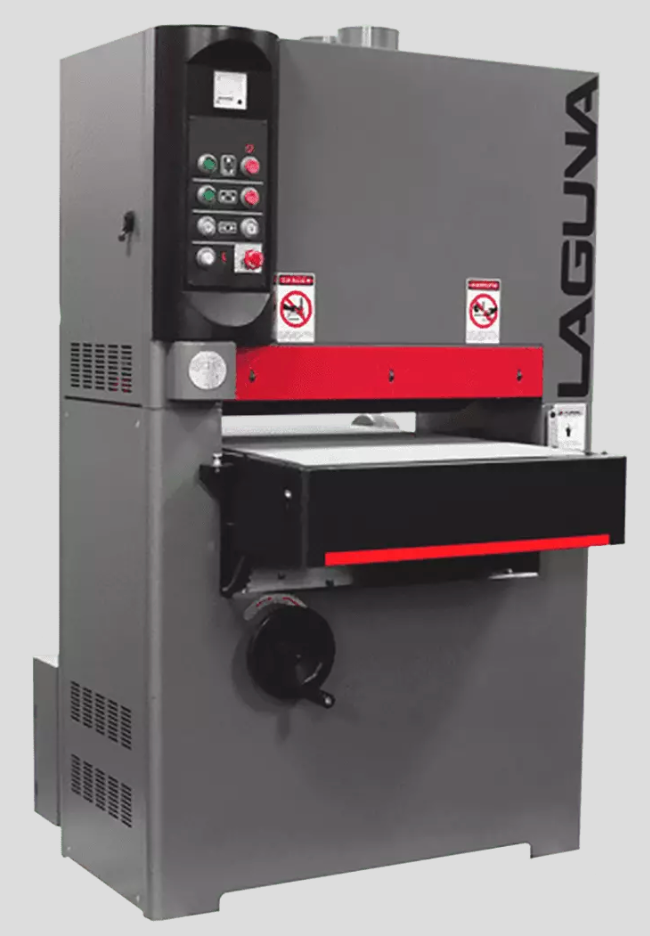

The MW25C industrial wide belt sander is designed for deburring, sanding, and surface texturing of metal components. The machine uses a single wide abrasive belt combined with a powered conveyor to produce consistent surface finishes across flat metal parts.
The system uses a 7.5 HP sanding motor with controlled feed speed and electronic table elevation adjustment. This allows operators to adjust finishing pressure and thickness settings depending on the material and finish required.
In real shop use the MW25C is commonly installed in fabrication facilities processing laser cut parts, sheet metal components, and flat metal stock where consistent deburring and surface preparation is required before coating or assembly.
Main Motor: 7.5 HP
Feed Motor: 1 HP
Sanding Belt Size: 25 inch x 60 inch
Maximum Sanding Width: 24.75 inch
Sanding Drum Diameter: 8 inch
Feed Speed: 15 and 30 FPM
Dust Ports: 2
USED FOR
• Deburring laser cut sheet metal
• Surface finishing flat metal parts
• Preparing parts for powder coating or finishing
• Fabrication shops processing sheet metal components
Not For
• Small irregular shaped parts
• Materials wider than the sanding width
• Shops without proper dust collection
Material Thickness | Performance
Thin sheet metal | Suitable
Flat plate stock | Suitable
Parts requiring surface texturing | Suitable
Technical Specifications for the Industrial Metal Sanders MW25C
Model Number: MW25C
Part Number: MSANWB25X60-1K-7.5-0197-1
Main Motor: 7.5 HP
Feed Motor: 1 HP
Table Lift Motor: 0.33 HP
Belt Size: 25 inch x 60 inch
Maximum Sanding Width: 25 inch
Maximum Sanding Height: 6 inch
Minimum Sanding Height: 26 gauge
Sanding Drum Diameter: 8 inch
Sanding Drum Length: 24.4 inch
Sanding Drum Speed: 1720 RPM
Feed Speed: 15 and 30 FPM
Dust Ports: 2 x 5 inch
Footprint: 39.6 inch x 19.3 inch
Conveyor Height Lowest Setting: 31.9 inch
Operating Air Pressure: 60 PSI
Belt Oscillation: Yes
Motor Brake: Yes
Steel Cabinet: Yes
Certification: CSA
Net Weight: 1344 lbs
Shipping Weight: 1565 lbs
Power Requirements
Single Phase Power
Industrial Metal Sanders MW25C Package Includes
Wide belt sanding system
Powered conveyor feed system
Electronic table elevation control
Upgrade options available via dropdown selections.
