130A on a 20A 120V circuit welds up to 1/4" steel without 240V.
20% @ 120A duty cycle reduces thermal shutdowns on small jobs.
Single voltage + wire speed dials let you set arc fast without menus.
33 lb inverter design makes it easy to move around the shop.
10' MIG + flowmeter included gets you welding out of the box.
DESCRIPTION
REAL-WORLD CAPACITY
SPECIFICATIONS
ACCESSORIES
WARRANTY
USER MANUAL
SHIPPING
WHY BUY FROM US
DESCRIPTION

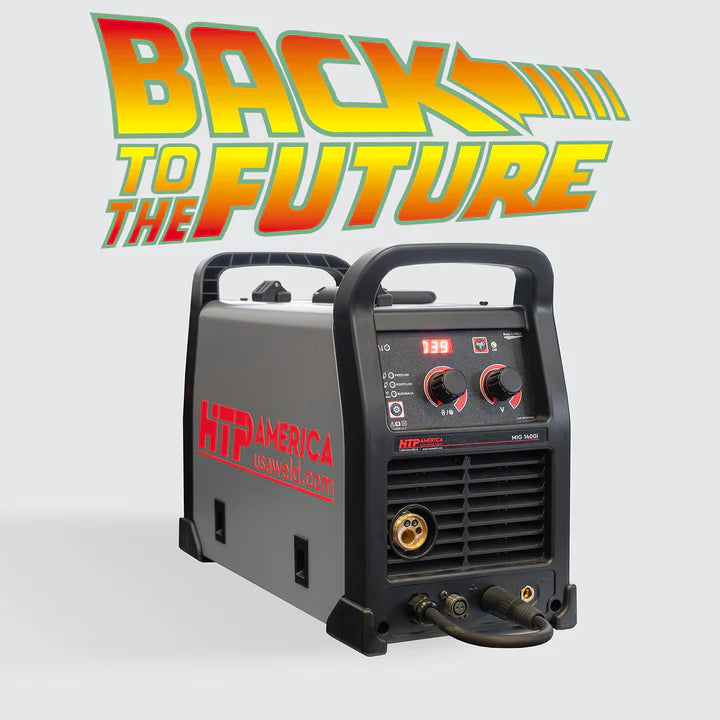

HTP MIG 1400i MIG Welder Product # MIG1400i

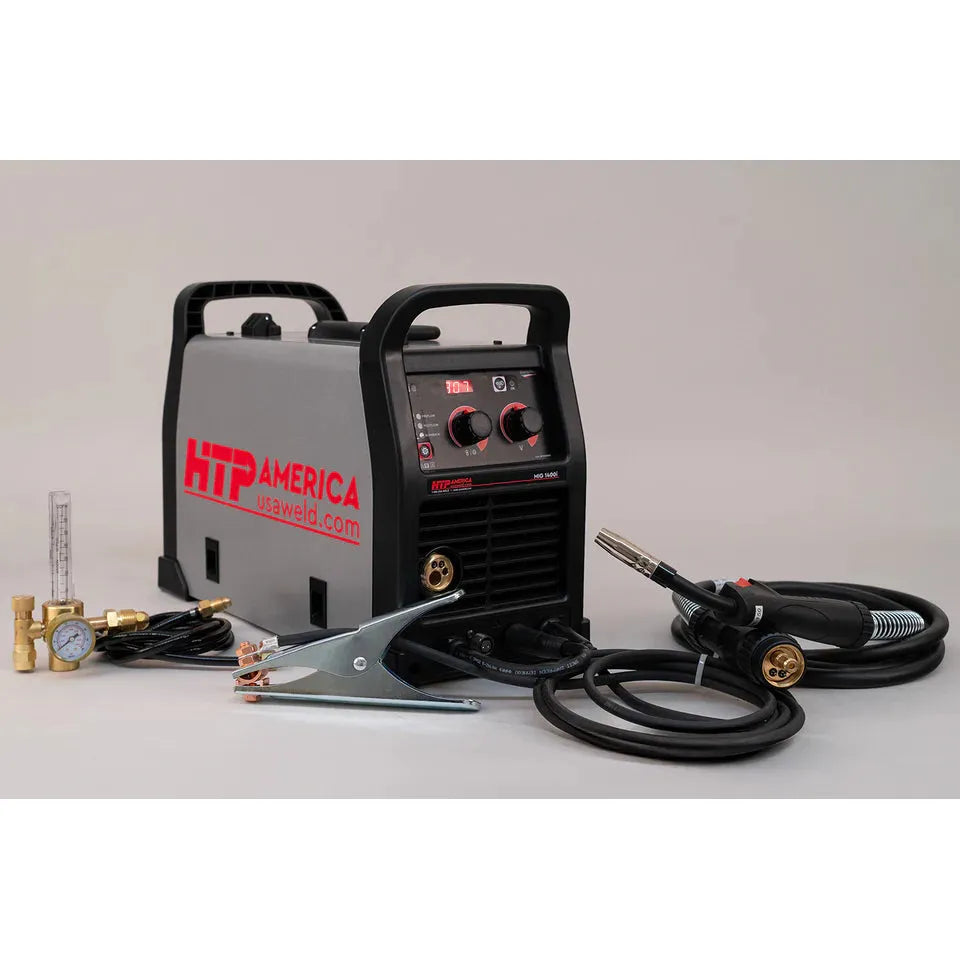

Includes: 10 foot HTP 15 Series MIG gun, Flowmeter, Gas hose, NEMA 5-15 to 5-20R adapter plug, Ground clamp assembly, .030/.035 drive roller (preinstalled) Does Not Include: Welding Cart, Gas Bottle, MIG Gun Consumables or Parts except those preinstalled on the gun, MIG Welding Wire
A compact 120V MIG welder built for small shop work, home fabrication, and light repair.
The HTP MIG 1400i is a MIG only inverter welder designed for welders who want a straightforward machine without complex menus or programming. The controls use a simple layout with voltage and wire speed adjustments so the operator can set parameters quickly.
Although the machine follows the control style of traditional transformer welders, the internal design uses modern inverter technology. This reduces weight and improves efficiency while maintaining stable arc performance for light fabrication work.
In real use the MIG 1400i is suited for home shops, maintenance work, small fabrication projects, and repair jobs where portability and 120V power access are important.
Input Voltage: 120V Maximum Output MIG: 130A (20A circuit) Maximum Output MIG: 65A (15A circuit) Minimum Output MIG: 20A Wire Diameter Capacity: .023 inch to .035 inch Wire Spool Size: 8 inch Wire Feed Speed: 55 to 590 IPM Arc Voltage Range: 13 to 22V
USED FOR • Home shops and light fabrication • Maintenance and repair welding • Steel welding on 120V circuits • Users who want simple manual controls
Not For • Industrial production welding • Multi process welding such as TIG or Stick • Heavy plate welding requiring high amperage
If you do not have access to a 120V power circuit, this is not your machine.
REAL-WORLD CAPACITY
Material Thickness | Performance Sheet metal | Suitable with .023 wire and proper settings 1/8 inch | Typical fabrication range 3/16 inch | Upper range depending on joint preparation 1/4 inch | Possible with proper joint preparation and multiple passes
Input Voltage: 120V Input Amperage Max: 15A (15A fuse) / 33.1A (20A fuse) Input Amperage Effective Current: 15A (15A fuse) / 19A (20A fuse) Maximum Output MIG: 65A (15A fuse) / 130A (20A fuse) Minimum Output MIG: 20A Maximum Recommended Thickness: 1/4 inch Arc Voltage: 13 to 22V Open Circuit Voltage: 68V Electronic Overload Protection: Yes Cooling System: Forced Air Fan (variable speed) Wire Spool Capacity: 8 inch Wire Diameter: .023 inch to .035 inch Frequency: 50 / 60 Hz Wire Feed Rate: 55 to 590 IPM Dimensions: 20 inch x 9 inch x 14 inch Weight: 33 lbs
Power Requirements
Single phase 120V input 20A dedicated circuit recommended for full output performance Machine will operate on 15A circuits with reduced output
ACCESSORIES
HTP MIG 1400i Package Includes
10 foot HTP 15 Series MIG gun with Euro connection .030 / .035 steel drive roller installed Flowmeter Gas hose 10 foot ground clamp and cable NEMA 5-15 to 5-20R adapter plug
CA Prop 65 - For Residents of California Warning: Welding and cutting equipment, accessories, and fumes can expose you to chemicals, including Chromium (Hexavalent Compounds), Lead, and Nickel, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, please visitwww.P65Warnings.ca.gov.
