220A output (230V input) drives into 3/8" steel without cold starts or weak penetration.
22 synergic programs with pulse select wire and thickness fast without parameter guessing.
12A minimum MIG output welds thin sheet without blowing edges or chasing distortion.
ST-Arc live arc control maintains constant arc length despite stick-out variation.
30 storable weld jobs with trigger recall switch setups instantly during repeat production.
DESCRIPTION
REAL-WORLD CAPACITY
SPECIFICATIONS
ACCESSORIES
WARRANTY
USER MANUAL
SHIPPING
WHY BUY FROM US
DESCRIPTION

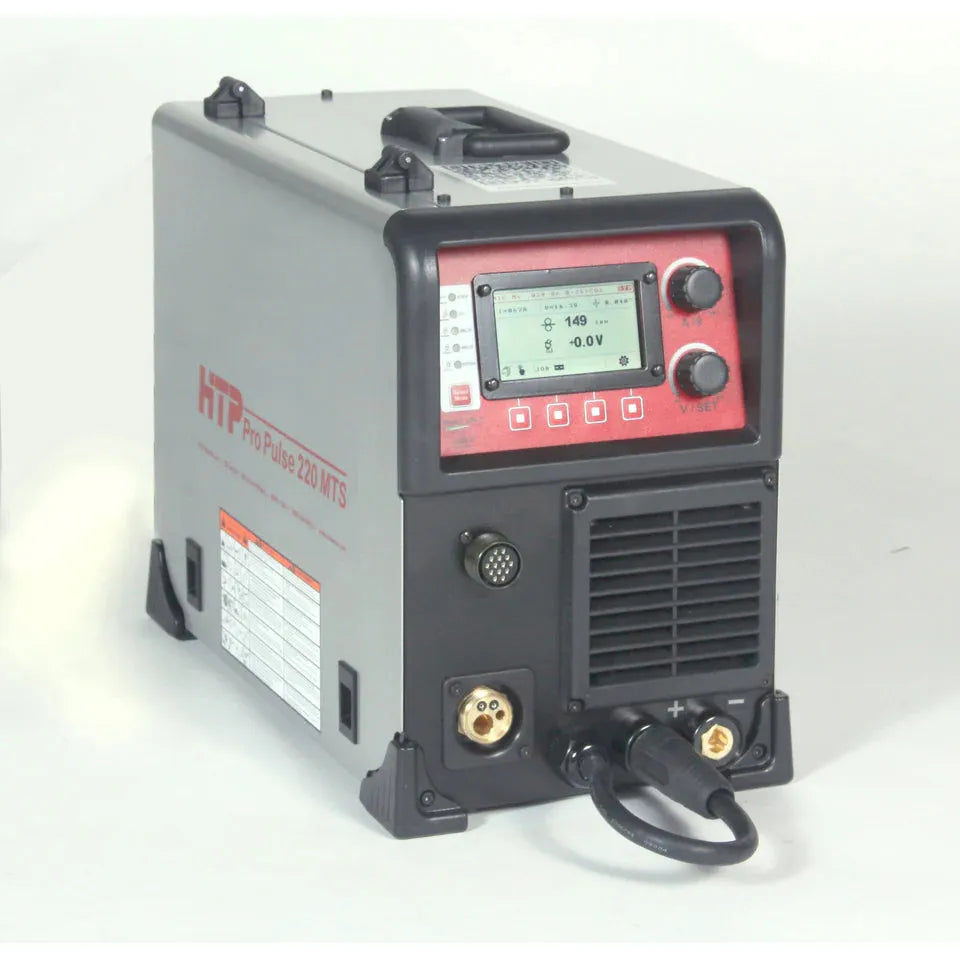

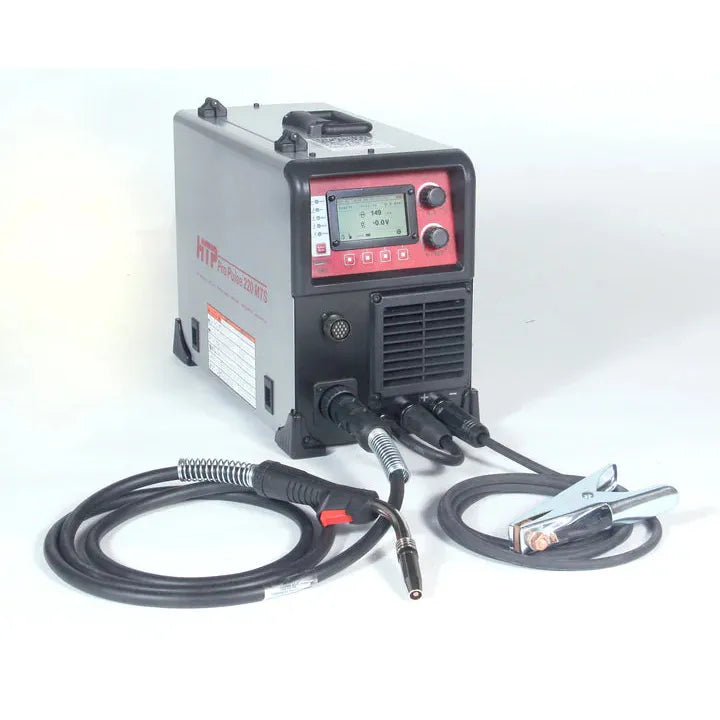

HTP Pro Pulse 220 MTS Product # 601627-24
Includes: Accessory package dependent (Steel Package, Aluminum Package, All In Package) Does Not Include: Welding Cart, Gas Bottle
A multi process pulse welder designed for fabrication shops that need MIG, TIG, and Stick capability in one machine.
The HTP Pro Pulse 220 MTS is a multi process welding system capable of MIG, pulsed MIG, DC TIG, and Stick welding. It includes synergic welding programs for mild steel, aluminum, stainless steel, silicon bronze, and flux cored wires. The machine allows operators to select automated welding programs or adjust parameters manually depending on the application.
The system includes 22 synergic programs with both pulse and non pulse operation along with a manual welding mode. The control interface uses a large LCD display that allows the operator to adjust welding parameters, view shielding gas recommendations, and store welding jobs for repeat use.
In real shop use the Pro Pulse 220 MTS is used in fabrication shops, automotive repair, and general welding work where multiple welding processes are required from a single portable machine.
Input Voltage: 230V (208 to 240V) Maximum Output MIG: 200A (220A for 10 seconds) Minimum Output MIG: 12A Minimum Output TIG: 4A Minimum Output Stick: 4A Wire Diameter Capacity: .023 inch to .045 inch Wire Spool Size: 8 inch and 12 inch Wire Feed Speed: 55 to 630 IPM Arc Voltage: 13 to 35V
USED FOR • Fabrication shops switching between MIG TIG and Stick • Aluminum steel and stainless welding using pulse MIG • Automotive and light fabrication work • Shops needing multi process capability in one machine
Not For • 120V power circuits • Shops requiring output above 220 amps • Heavy industrial production welding
If you do not have 230V single phase power, this is not your machine.
REAL-WORLD CAPACITY
Material Thickness | Performance Sheet metal | Suitable for pulse MIG and MIG brazing applications 1/8 inch | Comfortable welding range 1/4 inch | Strong fabrication range 3/8 inch | Multi pass welding depending on process and joint design
Technical Specifications for the HTP Pro Pulse 220 MTS
Input Voltage: 230V (208 to 240V) Input Amperage MIG: 35A Input Amperage TIG and Stick: 40A Maximum Output Amperage: 200A (220A for 10 seconds) Minimum Output MIG: 12A Minimum Output TIG and Stick: 4A Maximum Recommended Thickness: 1/4 inch to 3/8 inch Arc Voltage: 13 to 35V Open Circuit Voltage: 75V Electronic Overload Protection: Yes Cooling: Forced Air Fan Wire Spool Capability: 8 inch and 12 inch Wire Diameter: .023 inch to .045 inch Frequency: 50 / 60 Hz Wire Feed Rate: 55 to 630 IPM Dimensions: 19.75 inch x 10 inch x 14.5 inch Weight: 42 lbs
Power Requirements
Single phase 230V input required (208 to 240V supported) Standard 240V welding circuit recommended
ACCESSORIES

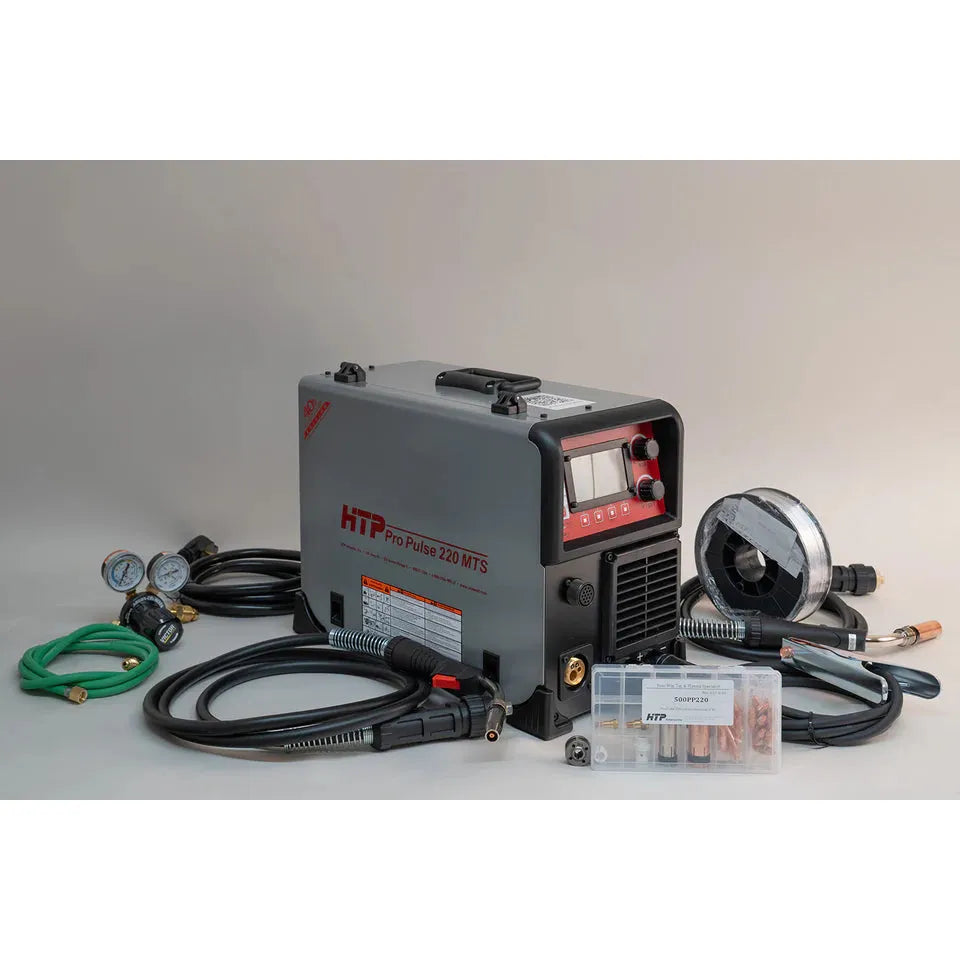

HTP Pro Pulse 220 MTS Package Includes
Steel Package
24 Series 10 foot MIG gun for steel with Euro quick disconnect Steel drive roller for .030 and .035 wire (preinstalled) Victor flow gauge regulator Gas hose for gas bottle connection 10 foot ground cable and clamp with 35 dinse connection PVC spindle spacer
Aluminum Package
26 Series 8 foot MIG gun for aluminum with Euro quick disconnect Aluminum drive roller for .035 .040 and .047 wire Steel drive roller for .030 and .035 wire (preinstalled) Victor flow gauge regulator Gas hose for tank connection PVC spindle spacer
All In Package
24 Series 10 foot MIG gun for steel 26 Series 8 foot MIG gun for aluminum Steel and aluminum drive rollers Victor flow gauge regulator Gas hose for gas bottle connection 10 foot ground cable and clamp with 35 dinse connection PVC spindle spacer 1 roll of .035 4043 aluminum wire 500PP220 starter consumable kit for 24 and 26 series MIG guns
Upgrade options available via dropdown selections.
Video Tutorials https://www.youtube.com/playlist?list=PLNRb2juhwdd1k4Gsb8Gt4HAjupzHc8Mr4
