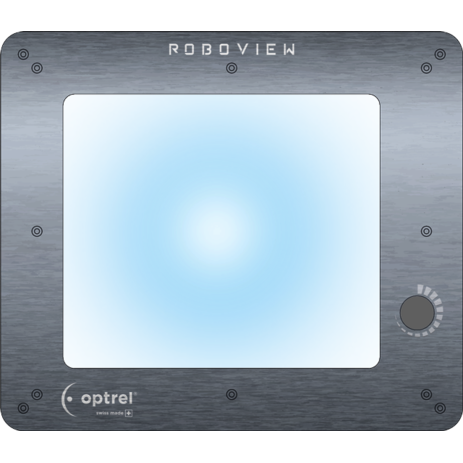

Optrel-Roboview-RoboView – Welding Window for Robot Cells
Product #: 5050.000Clear Visibility for Precise Welding Process Monitoring
In automated welding systems, real-time monitoring is crucial for quality control and efficiency. The RoboView anti-glare window provides an unobstructed view of robotic welding—before, during, and after the welding process.
With automatic darkening during welding and a clear view when inactive, operators can effortlessly inspect weld seams, robot movement, and process details without delays. The stepless brightness adjustment allows fine-tuned visibility, ensuring optimal process control at all times.
How RoboView Works
Why Choose RoboView?
Ideal for Robotic Welding Cells
RoboView is specifically designed for robotic welding applications, offering active glare protection without relying on optical arc detection. It integrates seamlessly into automated welding cells, allowing for real-time weld inspection and process improvement—all from a safe distance.
Note: RoboView is not classified as personal protective equipment (PPE) under EU Directive 2016/425.
| Part Number | 5050.000 |
| Product description | Anti-glare window with darkening function for use in automated welding and cutting. Adjustment of the protection level with knob. Control of the darkening by the robot or PLC |
| Size | Field of view: 280mm x 240mm Cutout for mounting: 358mm x 302mm |
| Control | 24VDC High active, 10mA max. 0VDC – 4VDC = Bright level 12 VDC – 25VDC = Dark level |
| Protection level setting | Stepless by rotary knob |
| Light transmission | Bright level – Shade level 3 Dark level – Shade level 3-12 Ultraviolet/infrared protection – maximum in the whole shade level range |
| Protection for optics | Front plate on both sides, exchangeable (part 5000.650) |
| Frame material | Stainless steel |
| Frame color | Bright metallic |
| Operating temperature | -10°C to +55°C / +14°F to +131°F |
| Storage Temperature | -20°C to + 70°C / -4°F to 158°F |
| Weight | approx. 2800 g / 98.8 oz |
| Fields of application | All electrical welding processes Electrode welding (Stick Welding, SMAW) / MIG / MAG (Gas Metal Arc Welding, GMAW / GMAW high power welding / flux cored welding / TIG welding (TIG, GTAW)/ plasma welding / micro plasma welding / plasma cutting / spot welding. Not suitable for laser welding! |
| Scope of Delivery | Anti-glare window incl. front plate, mounting material, operating instructions |
| Marking | CE |
| Standards | ISO 25980:2014-10 EU 2014/30/EU EN 61000-6-2:2019-11 EN 61000-6-2:2005/AC:2005 EN 61000-6-4:2020-09 EN 61000-6-4/A1:2020-09 |
| Warranty | From date of purchase: 2 years for manufacturing and material defects |
