6× larger panoramic field of view keeps puddle, joint edges, and surrounding area visible during complex weld setups.
0.090 ms switching speed darkens the lens instantly, protecting eyes during frequent arc starts.
Slide-up lens system switches instantly from welding to grinding, eliminating helmet removal between tasks.
ShadeTronic auto-adjusts protection levels from 4–12, preventing constant shade changes across different welding amperages.
Crystal Lens Technology 2.0 provides shade level 2 light state, improving joint visibility during setup and inspection.
DESCRIPTION
FABCORE X DECISION GUIDE
SPECIFICATIONS
ACCESSORIES
WARRANTY
DOCUMENTS
SHIPPING
WHY BUY FROM US
DESCRIPTION

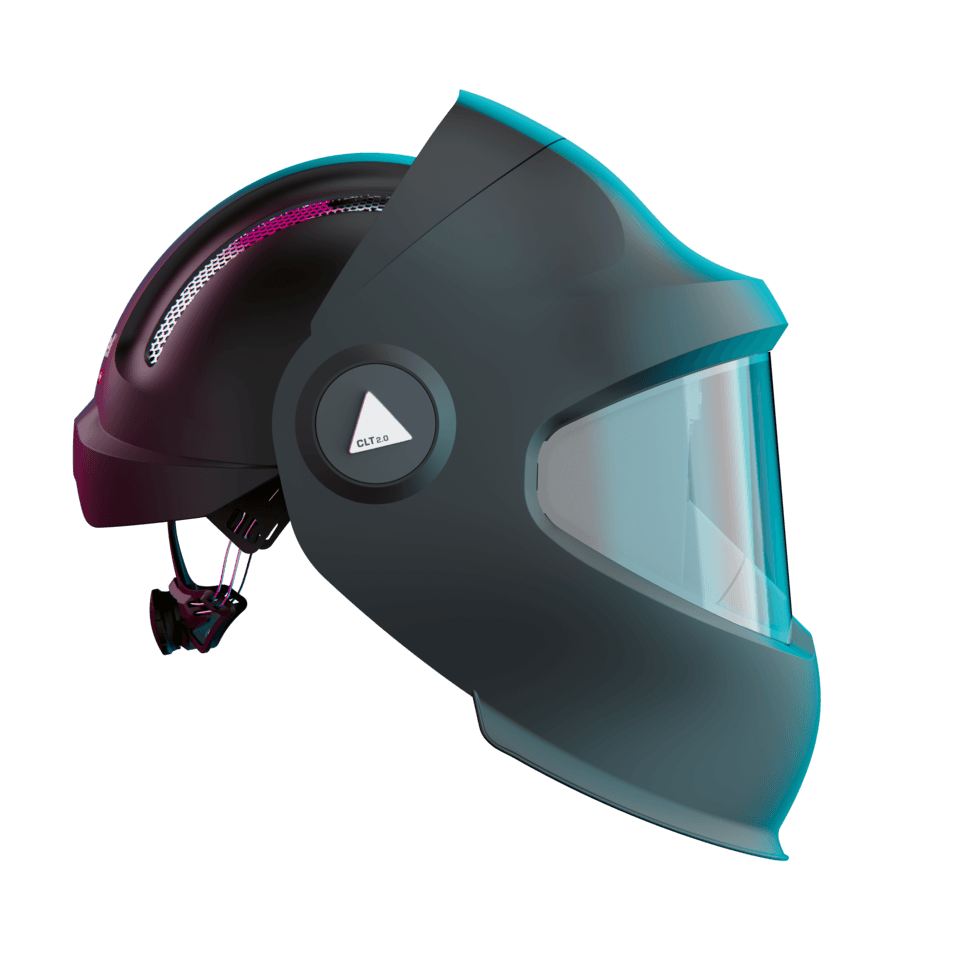

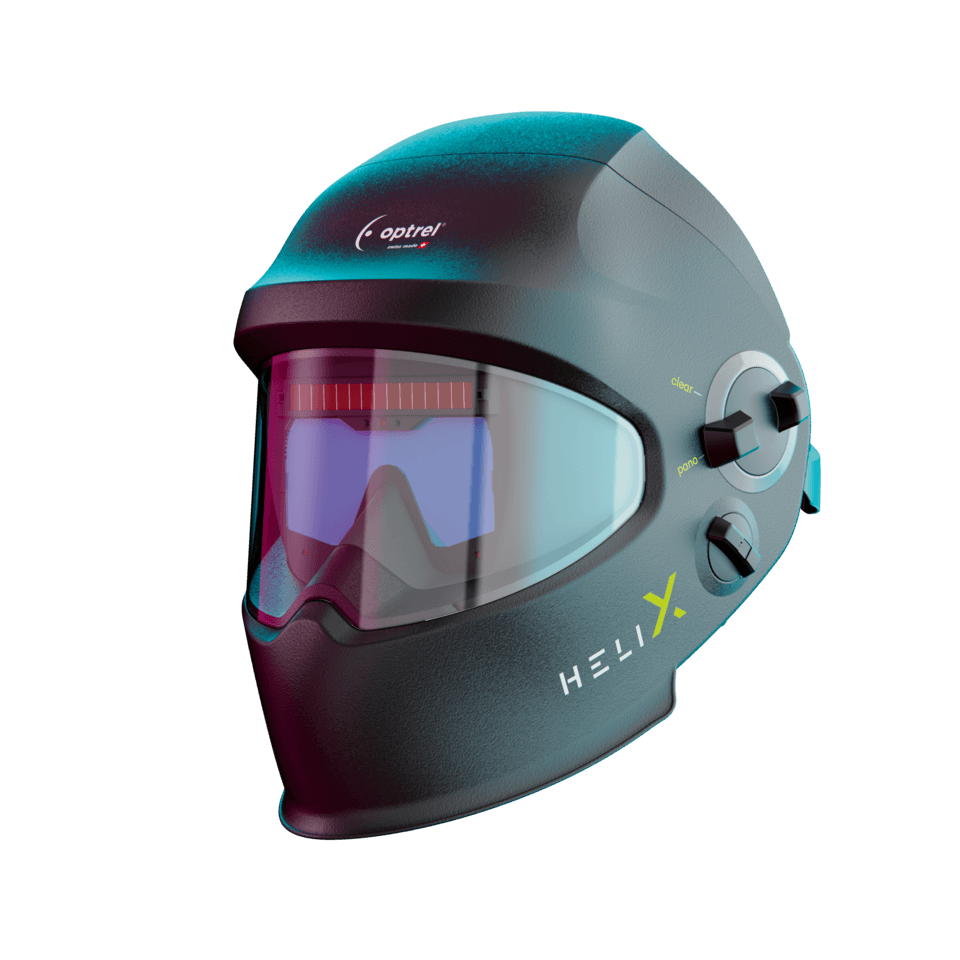

Optrel Helix CLT Welding Helmet
Product # 1050.200.US
Includes: Welding helmet, Optrel IsoFit headgear, Removable hard hat, Storage bag, Micro USB charging cable, Front cover lens, Warranty card, Operating instructions
Does Not Include: Respiratory protection system
Slide up auto darkening welding helmet designed for fabrication, production welding, and environments where frequent transitions between welding and grinding are required.
The Optrel Helix CLT welding helmet uses Crystal Lens Technology with a light state of DIN 2.0. The panoramic lens design increases the visible work area compared to standard welding helmets while providing a clear view of the weld zone.
A slide up lens system allows the welder to switch between welding and grinding tasks without removing the helmet. Five arc sensors activate the auto darkening filter, and adjustable sensitivity and delay controls allow the helmet to be configured for different welding environments.
KEY FEATURES Viewing Area: Panoramic extended field of view Shade Range: Automatic DIN 4 to DIN 12, Manual DIN 7 to DIN 12 Sensors: 5 arc sensors Light State: DIN 2.0 Power Supply: Solar cells with rechargeable lithium polymer battery Switching Time: 0.090 ms light to dark at room temperature Grinding Mode: Yes Weight: 640 g USED FOR • Fabrication and welding shops • MIG, TIG, and stick welding • Welders who switch between welding and grinding tasks • Multi process welding environments NOT FOR • Laser welding applications • Environments requiring supplied air respiratory protection • Extreme foundry heat environments APPLICATIONS • TIG Welding (GTAW) • MIG Welding (GMAW) • Stick Welding (SMAW) • Flux Cored Wire Welding • Plasma Welding • Plasma Cutting • Gas Welding
FABCORE X DECISION GUIDE
The Optrel Helix CLT welding helmet is designed for welders who need the ability to switch between welding and non welding tasks without removing their helmet. The slide up lens system allows the welding lens to move out of the way when grinding or positioning workpieces.
Crystal Lens Technology provides a bright light state and clear visibility of the work area. Adjustable sensitivity and delay settings allow the helmet to be configured for different welding environments and welding processes.
Is This Helmet Right For You • You frequently switch between welding and grinding tasks • You perform MIG, TIG, or stick welding • You want a wide panoramic viewing area • You work in fabrication or production welding environments You May Need A Different Helmet If • You perform laser welding • You require integrated respiratory protection • You need a helmet designed for extreme heat environments
SPECIFICATIONS
Technical Specifications for the Optrel Helix CLT Welding Helmet
Light State: DIN 2.0 Active Shade Range Manual: DIN 7 to DIN 12 Automatic Shade Adjustment: DIN 4 to DIN 12 with calibration ±2 Power Supply: Solar cells with rechargeable lithium polymer battery Charging Method: Micro USB Battery Life: 300 to 500 charging cycles Sensors: 5 arc sensors Sensitivity: Continuously adjustable Switching Time Light To Dark: 0.090 ms at room temperature Switching Time High Temperature: 0.070 ms at 55°C Dark To Light Delay: 0.1 s to 2.0 s adjustable Optical Classification EN379: 1 / 1 / 1 / 2 Eye Protection: Ultraviolet and infrared protection across all shade levels Dimensional Stability Mask: Up to 220°C Dimensional Stability Front Lens: Up to 137°C Operating Temperature: -10°C to +55°C Storage Temperature: -20°C to +70°C Total Weight: 640 g
ACCESSORIES
Optrel Helix CLT Welding Helmet Package Includes
• Optrel Helix CLT welding helmet • Optrel IsoFit headgear • Removable hard hat • Storage bag • Micro USB charging cable • Front cover lens • Warranty card • Operating instructions
WARRANTY
Warranty
• 2 year manufacturer warranty for manufacturing and material defects • 6 month warranty for battery • Additional 1 year warranty extension if registered within the first 6 months (excluding battery)
