Color:
Includes: Welding helmet, Optrel IsoFit headgear, Removable hard hat, Storage bag, Micro USB charging cable, Front cover lens, Warranty card, Operating instructions
Does Not Include: Respiratory protection system

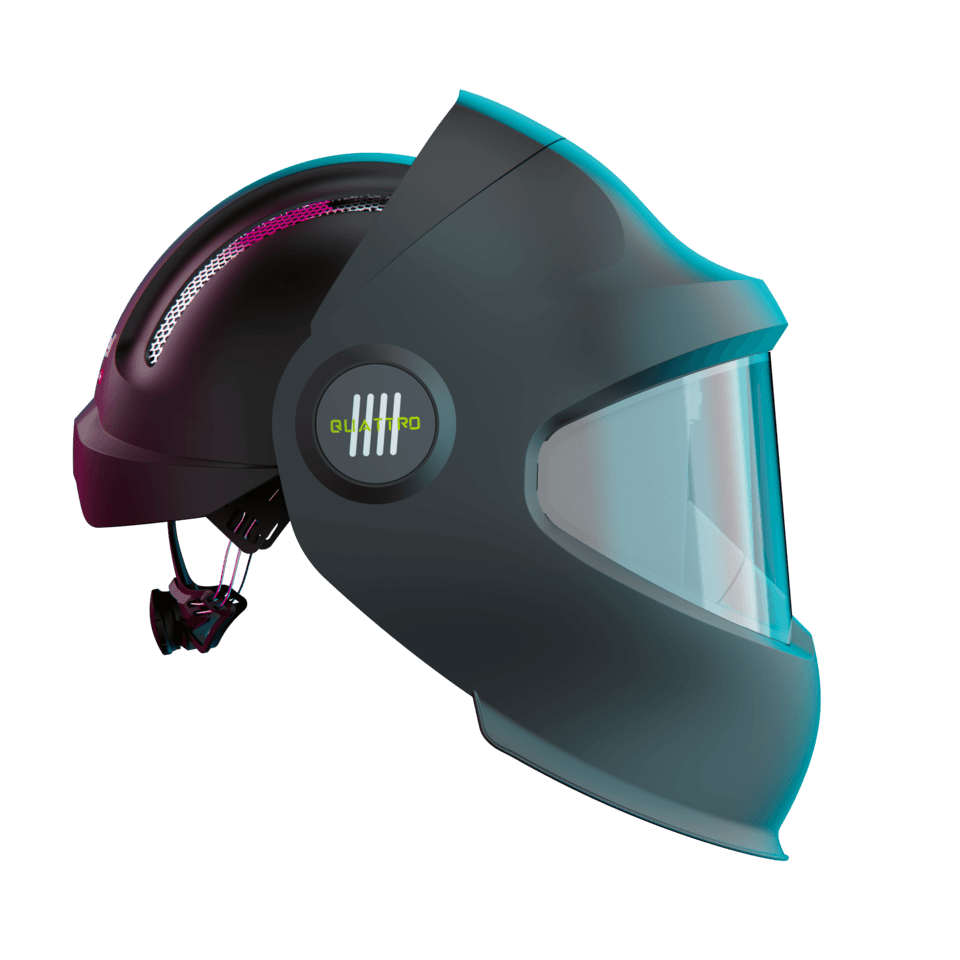

Slide up auto darkening welding helmet designed for fabrication shops, production welding, and environments where welders regularly switch between welding and grinding tasks.

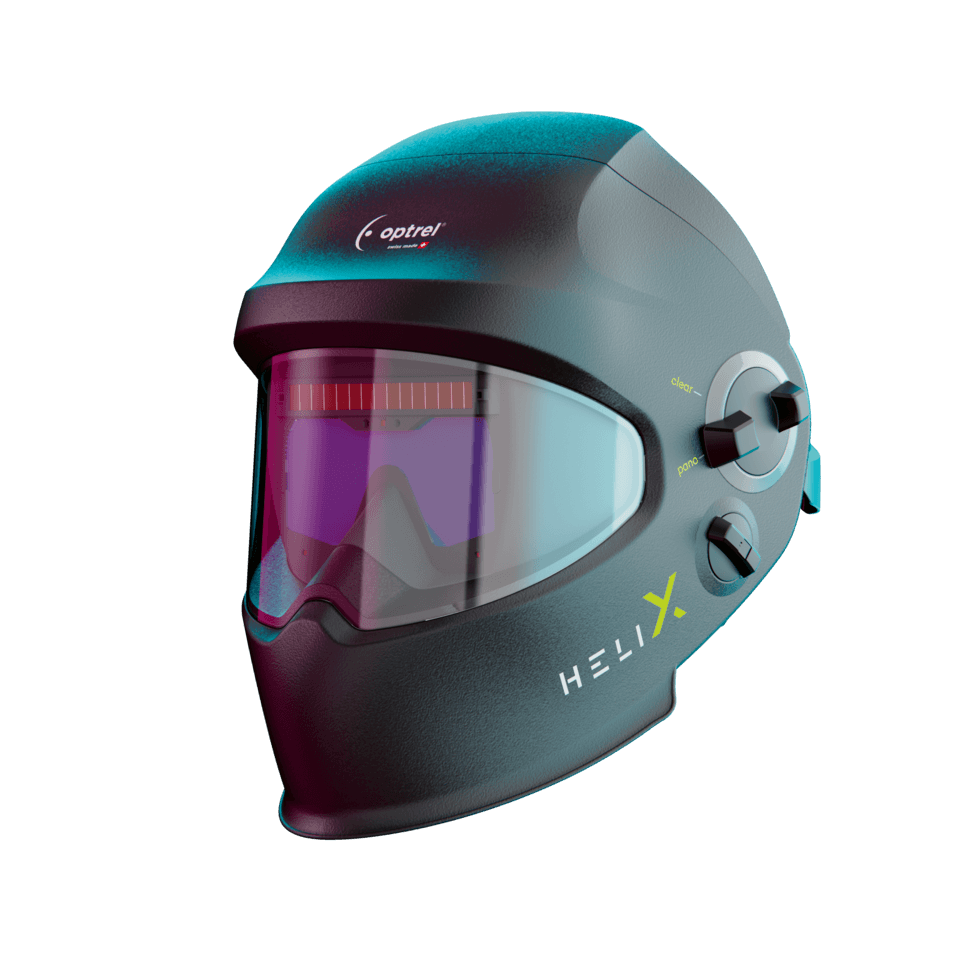

The Optrel Helix Quattro welding helmet uses a panoramic viewing design that increases the visible work area compared to standard welding helmets. The auto darkening filter provides protection across a wide shade range and carries an EN379 optical classification of 1 / 1 / 1 / 1.
A slide up lens allows the welder to move the welding lens out of the way for grinding or setup work. Five arc sensors detect the welding arc and activate the filter, while adjustable sensitivity and delay controls allow the helmet to be adapted for different welding processes.
KEY FEATURES Viewing Area: Panoramic extended field of view Shade Range: Automatic DIN 4 to DIN 13, Manual DIN 8 to DIN 13 Sensors: 5 arc sensors Light State: DIN 3.0 Power Supply: Solar cells with rechargeable lithium polymer battery Switching Time: 0.090 ms light to dark at room temperature Grinding Mode: Yes Weight: 620 g USED FOR • Fabrication and welding shops • MIG, TIG, and stick welding • Welders who frequently switch between welding and grinding • Multi process welding environments NOT FOR • Laser welding applications • Environments requiring supplied air respiratory protection • Extreme foundry heat environments APPLICATIONS • TIG Welding (GTAW) • MIG Welding (GMAW) • Stick Welding (SMAW) • Flux Cored Wire Welding • Plasma Welding • Plasma Cutting • Gas Welding • Grinding
The Optrel Helix Quattro welding helmet is designed for welders who want the flexibility of a slide up welding lens combined with a wide field of vision. The panoramic lens improves awareness of the surrounding workspace during welding operations.
Automatic shade adjustment adapts the filter shade to arc intensity. Adjustable sensitivity and delay settings allow the helmet to be configured for different welding environments and welding processes.
Is This Helmet Right For You • You frequently switch between welding and grinding tasks • You perform MIG, TIG, or stick welding • You want a wide panoramic viewing area • You work in fabrication or production welding environments You May Need A Different Helmet If • You perform laser welding • You require integrated respiratory protection • You need a helmet designed for extreme heat environments
Technical Specifications for the Optrel Helix Quattro Welding Helmet
Light State: DIN 3.0 Active Shade Range Manual: DIN 8 to DIN 13 or DIN 9 to DIN 14 with protection extension Automatic Shade Adjustment: DIN 4 to DIN 13 or DIN 5 to DIN 14 with calibration ±2 Power Supply: Solar cells with rechargeable lithium polymer battery Charging Method: Micro USB Battery Life: 300 to 500 charging cycles Sensors: 5 arc sensors Sensitivity: Continuously adjustable Switching Time Light To Dark: 0.090 ms at room temperature Switching Time High Temperature: 0.070 ms at 55°C Dark To Light Delay: 0.1 s to 2.0 s adjustable Optical Classification EN379: 1 / 1 / 1 / 1 Eye Protection: Ultraviolet and infrared protection across all shade levels Dimensional Stability Mask: Up to 220°C Dimensional Stability Front Lens: Up to 137°C Operating Temperature: -10°C to +55°C Storage Temperature: -20°C to +70°C Total Weight: 620 g
Optrel Helix Quattro Welding Helmet Package Includes
• Optrel Helix Quattro welding helmet • Optrel IsoFit headgear • Removable hard hat • Storage bag • Micro USB charging cable • Front cover lens • Warranty card • Operating instructions
Warranty
• 2 year manufacturer warranty for manufacturing and material defects • 6 month warranty for battery • Additional 1 year warranty extension if registered within the first 6 months (excluding battery)
