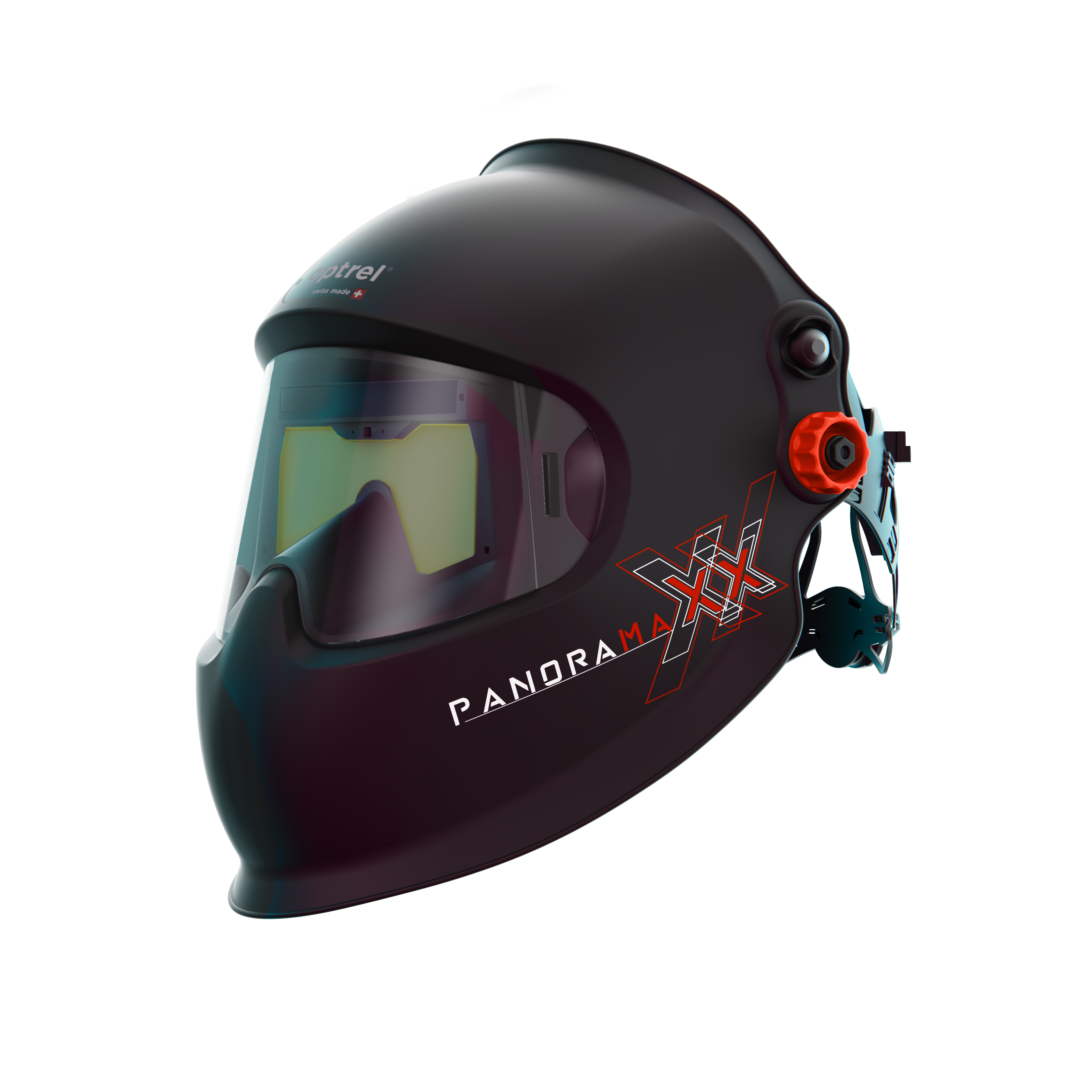

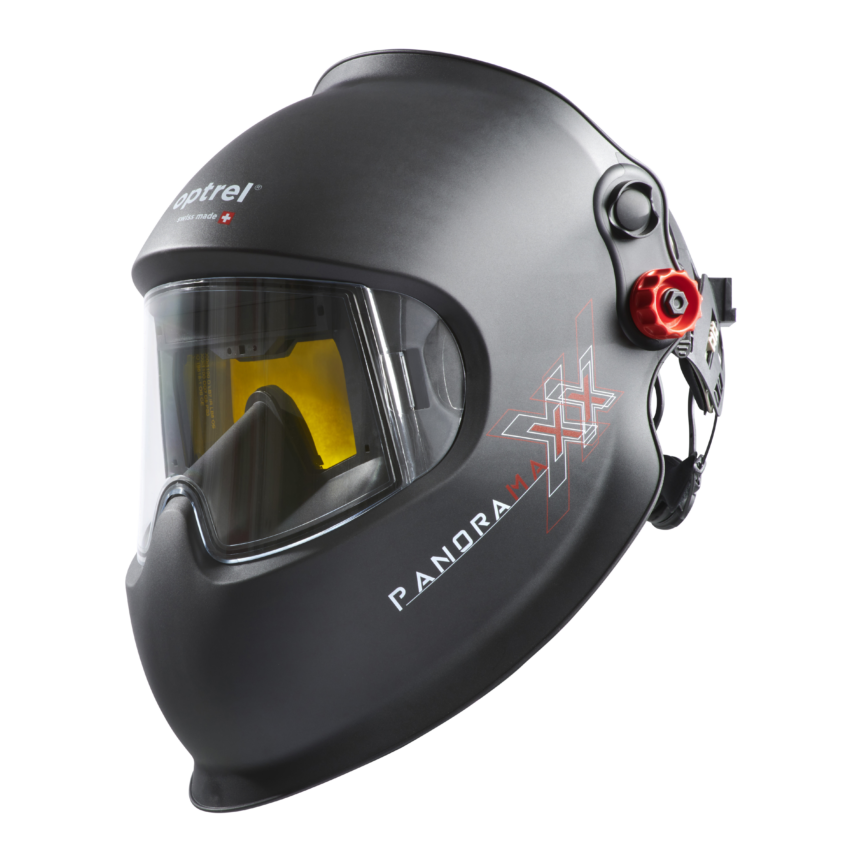

The Optrel Panoramaxx L is a passive laser welding helmet designed for laser based industrial work. The helmet uses a fixed protection filter and panoramic viewing design for tasks involving laser cleaning, laser cutting, and inspection work around laser welding systems.
The helmet uses a passive filter with protection level 2 and includes a panoramic viewing design that expands the visible work area compared to standard welding lenses. IsoFit headgear allows three dimensional adjustment to fit different head shapes.
The helmet shell is designed for industrial environments with heat resistance up to 220 C. The helmet can be used for laser related tasks and general workshop activities where eye protection and visibility are required.
Includes: Welding helmet, IsoFit headgear, operating instructions, storage bag, lens, warranty card
Does Not Include: Auto darkening filter, powered air respirator system
Passive laser protection helmet designed for industrial laser applications and workshop environments.
The Optrel Panoramaxx L is a passive laser protection helmet used in laser cleaning, laser cutting, and inspection tasks near laser welding systems. The helmet uses a fixed protection filter that does not automatically darken.

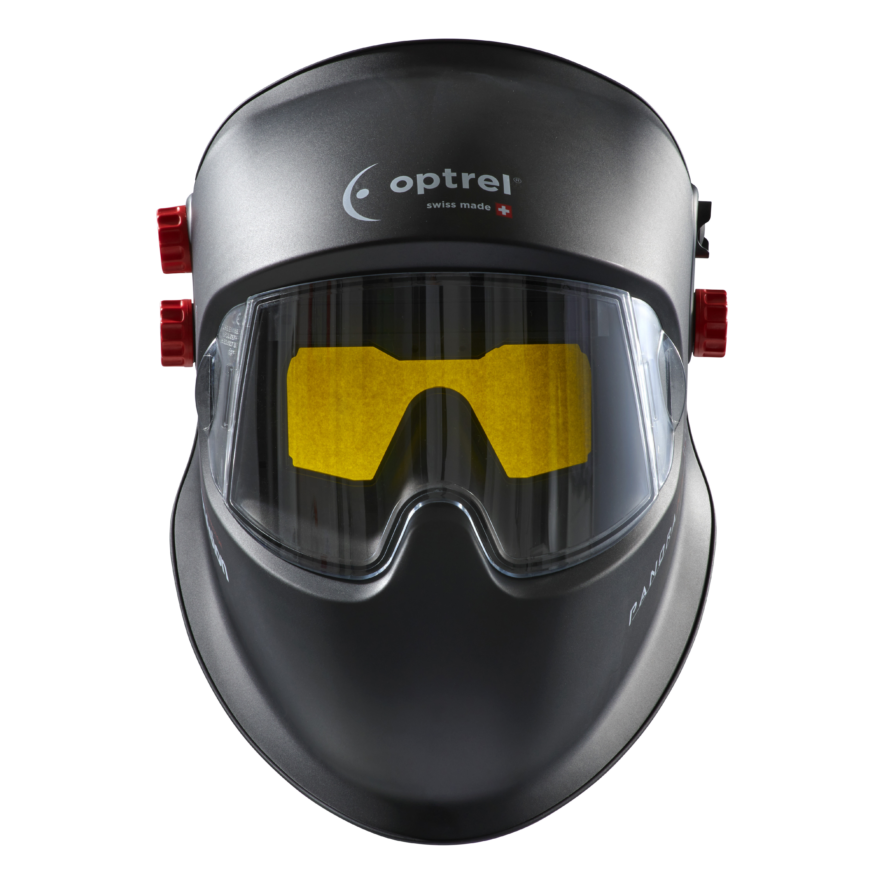

The panoramic viewing design increases the visible working area compared to standard welding helmets. IsoFit headgear allows the helmet to be adjusted to different head shapes for stability during work.
The helmet shell provides dimensional stability at elevated temperatures and is designed for workshop and industrial environments where laser processes are used.
Viewing Area: Panoramic viewing design
Protection Level: Passive protection level 2

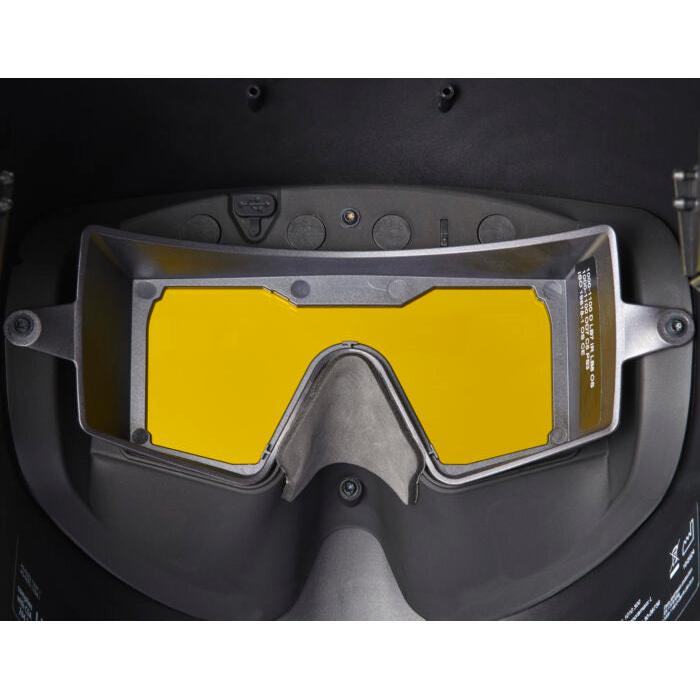

Filter Type: Passive laser protection filter

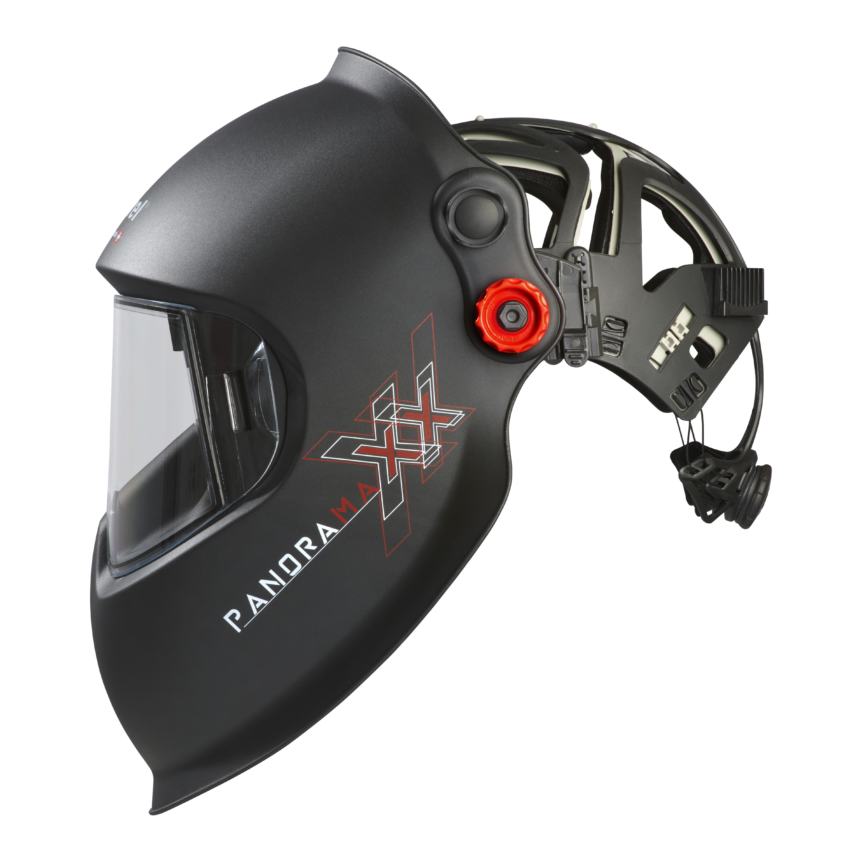

Headgear: IsoFit adjustable headgear
Heat Stability Helmet Shell: Up to 220 C
Front Lens Heat Stability: Up to 137 C
Hard Hat Adapter: Compatible with optional adapter
Weight: 605 g
The Panoramaxx L helmet is designed for environments where laser protection and wide field visibility are required. The helmet uses a passive protection filter and is intended for laser related tasks rather than arc welding operations.
Is This Helmet Right For You
You May Need A Different Helmet If
Technical Specifications for the Optrel Panoramaxx L Passive Laser Welding Helmet
Filter Type: Passive laser protection filter
Protection Level: 2.0
Field of View: 2.3 to 6.3 times larger than a 100 x 50 mm standard lens depending on headgear position
Helmet Shell Heat Stability: Up to 220 C
Front Lens Heat Stability: Up to 137 C
Eye Protection Marking: 2 OS 1 S
Laser Protection Range: 1030 to 1100 nm
Operating Temperature: -10 C to +55 C
Storage Temperature: -20 C to +70 C
Weight: 605 g
Certifications: CE, UKCA, ANSI Z87.1, AS/NZS 1337.1, AS/NZS 1338.1, CSA Z94.3
Optrel Panoramaxx L Passive Laser Welding Helmet Package Includes
Welding helmet
IsoFit headgear
Operating instructions
Storage bag
Lens
Warranty card
Upgrade options available via dropdown selections.
Warranty
2 year manufacturer warranty covering manufacturing and material defects
