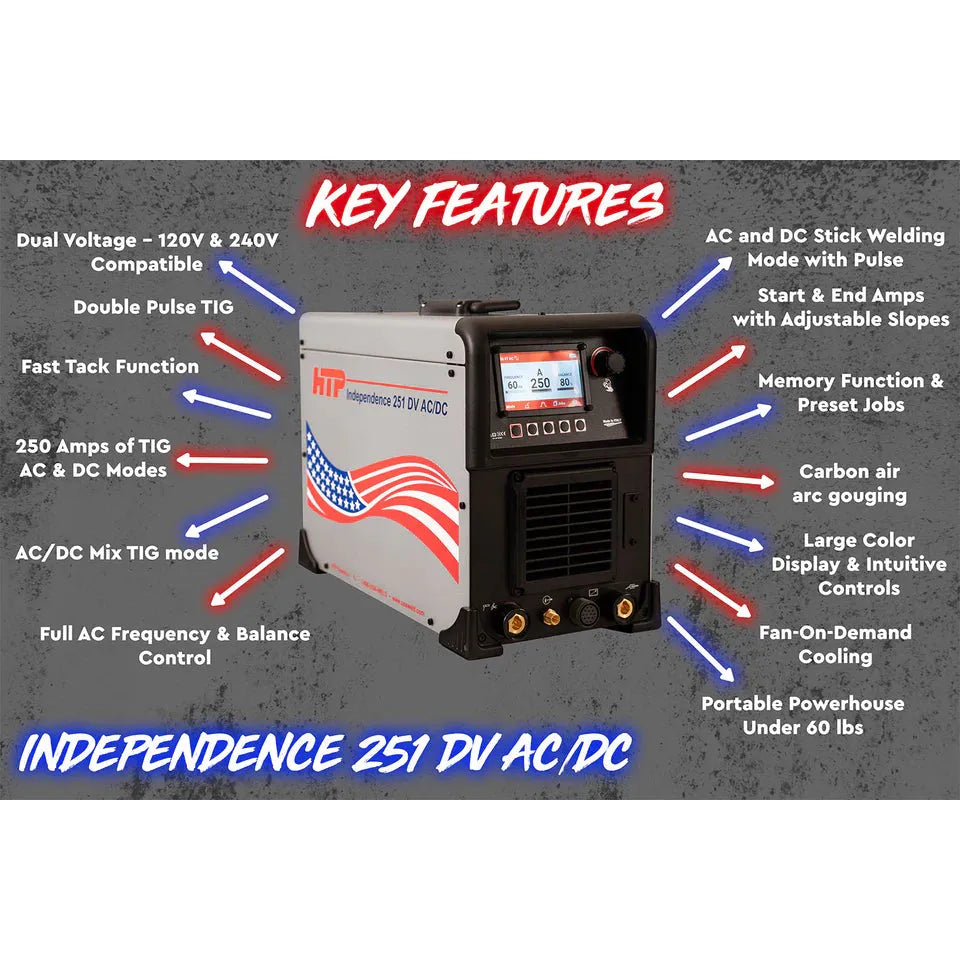

250A TIG output on 240V power drives deep penetration on aluminum and steel without oversized shop machines.
150A TIG output on standard 120V circuits keeps repair jobs moving where only wall outlets exist.
AC/DC Mix TIG blends oxide cleaning and penetration in one arc for faster heavy aluminum weld passes.
0.4–1000 PPS pulse control stabilizes puddle heat on thin metals while producing consistent stacked-bead appearance.
54 lb machine weight moves easily between shop bays, trailers, and job sites without hauling bulky welders.
DESCRIPTION
REAL-WORLD CAPACITY SECTION
SPECIFICATIONS
ACCESSORIES
WARRANTY
USER MANUAL
SHIPPING
WHY BUY FROM US
DESCRIPTION

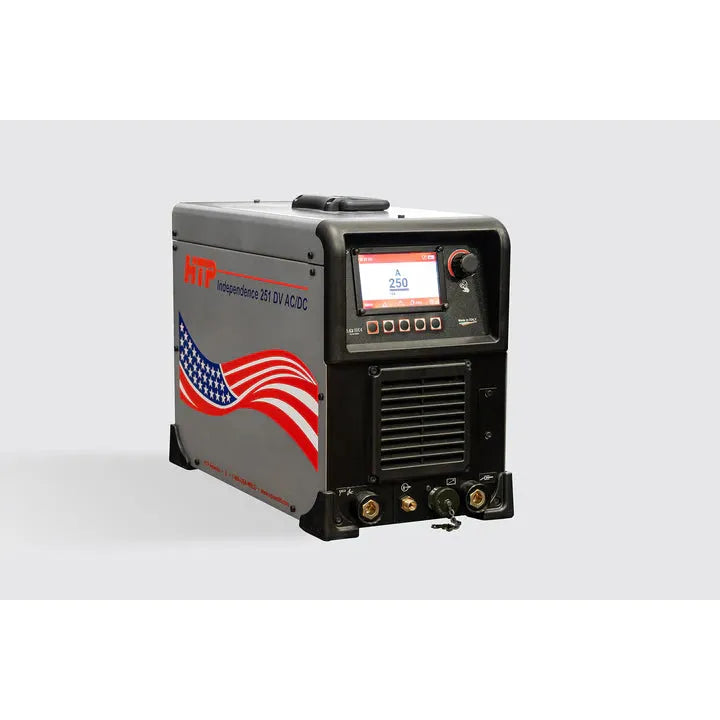

HTP Independence 251 Dual Voltage AC DC TIG Welder Machine Only Miller Compatible Package Product # tig251dv-miller
*This package will only work if you already own a Miller® Tig torch with the 35 dinse and the Miller®14 pin foot pedal.
Includes: Independence 251 DV welding machine, dual voltage adapter cord, two 5/8-18 RH to 1/4 BSP gas fitting adapters Does Not Include: Flowmeter, gas hose, TIG torch, ground cable, foot pedal, welding cart, gas bottle, tungsten, filler rod
Dual voltage AC DC TIG welder designed for welders who already own compatible Miller TIG accessories.
This package includes the Independence 251 dual voltage welding machine configured for users who already own Miller compatible TIG equipment. It allows the operator to reuse a Miller TIG torch, ground clamp, 14 pin foot pedal, gas hose, and flowmeter.
The machine supports TIG welding, pulsed TIG, Stick welding, and carbon arc gouging. It operates on either 120V or 240V input power and delivers up to 250 amps of TIG output when connected to 240V power.
This configuration is intended for welders who want the Independence 251 power source while continuing to use existing Miller accessories. The machine requires a 35 Dinse TIG torch connection with a side gas connection. Flow through torches require a different connection.
Input Voltage: Dual voltage 120V or 240V Maximum TIG Output: 250A Maximum Stick Output: 200A AC Frequency Range: 20 to 400 Hz under 100A AC Frequency Range: 20 to 200 Hz above 100A AC Balance Range: 10 to 90 percent Programmable Memory Slots: 8
USED FOR • Aluminum TIG welding and fabrication • Welders upgrading from Miller equipment • Motorsports and fabrication shops • Shops needing dual voltage TIG capability
Not For • Users without compatible Miller TIG accessories • Shops without 120V or 240V power • Users needing a complete ready to weld package
REAL-WORLD CAPACITY SECTION
Material Thickness | Performance Thin aluminum sheet | Precision TIG welding with AC control 1/4 inch aluminum | Single pass TIG welding 3/8 inch aluminum | Multi pass fabrication welding 1/2 inch aluminum | Heavy fabrication with joint preparation
Technical Specifications for the HTP Independence 251 Dual Voltage AC DC TIG Welder Machine Only Miller Compatible Package
Input Voltage Dual voltage 110V / 220V (208 to 240V) Input Amps @ Rated Load (240V) 30A TIG Welding Current 240V 1 to 250A TIG Welding Current 120V 1 to 150A Stick Welding Current 240V 10 to 200A Stick Welding Current 120V 10 to 110A Max Rated Output TIG 250A Max Rated Output Stick 200A Open Circuit Voltage 70V Stick / 90V TIG Protection Class IP23S Welding Modes Stick, TIG 2T, TIG 4T, TIG Spot, CAC A Gouging TIG Processes AC, DC, AC Mix TIG AC Processes AC, AC Mix, Pulse TIG DC Processes Standard, Pulse, Soft Pulse, Double Pulse, Dynamic Power AC Mix Capability Yes AC Mix DC Percentage 10 to 90 percent Asymmetric Arc Yes EN Amperage Control 10 to 100 percent EP Amperage Control 10 to 100 percent AC Frequency 2 to 100A 20 to 400 Hz AC Frequency 101 to 250A 20 to 200 Hz AC Balance 10 to 90 percent AC Waveforms Square, Triangle, Sine AC Waveform Mixing Yes AC Zero Crossing Current 20 to 80A or Auto Spot Process Standard, Fast Tack Spot Time On 0.01 to 10 seconds Spot Time Off 0.01 to 10 seconds Stick Processes Manual, Easy SET, DC Pulse, DC Soft Pulse, AC Standard Pulse Stick Capability Yes Stick Electrode Selection Yes Stick Hot Start 0 to 50 percent Stick Hot Start Time 0 to 2.5 seconds Stick Arc Force 0 to 500 percent Stick DC Polarity DCEP and DCEN Pre Flow 0.1 to 25 seconds Post Flow 0.1 to 50 seconds Initial Amps 10 to 90 percent Initial Amps Time 0 to 25 seconds Final Amps 10 to 90 percent Final Amps Time 0 to 25 seconds Slope Up 0.1 to 10 seconds Slope Down 0.1 to 10 seconds Minimum TIG Regulation 1 to 100A TIG Hot Start 5 to 100A or Auto Tungsten Selection 0.040, 1/16, 3/32, 1/8 TIG Arc Start HF, Lift, Lift Pipe, Pipe Lift Smart Pulse Frequency Stick 0.4 to 5 PPS Pulse Frequency TIG AC 0.4 to 20 PPS Pulse Frequency TIG DC 0.4 to 1000 PPS Peak Time 10 to 90 percent Background Amps 10 to 90 percent Automatic Polarity Reversal Yes Programmable Memories 8 Cooling System Fan variable speed forced air Dimensions 19.75 in x 10 in x 15.5 in Weight 54 lbs
Power Requirements
120V or 240V single phase power input Dual voltage adapter cord included
ACCESSORIES
HTP Independence 251 Dual Voltage AC DC TIG Welder Machine Only Miller Compatible Package Includes
Independence 251 DV AC DC power source Dual voltage adapter cord Two 5/8-18 RH to 1/4 BSP gas fitting adapters
Upgrade options available via dropdown selections.
WARRANTY
Warranty
Manufacturer warranty included with purchase.
USER MANUAL
HTP Independence 251 DV AC/DC-machine only-Miller package (Dual Voltage 110/220) User Manual
CA Prop 65 - For Residents of California Warning: Welding and cutting equipment, accessories, and fumes can expose you to chemicals, including Chromium (Hexavalent Compounds), Lead, and Nickel, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, please visitwww.P65Warnings.ca.gov.
