300A output on a 54A single-phase circuit drives deep TIG penetration without needing three-phase shop power.
20–400Hz adjustable AC frequency tightens the arc cone for cleaner aluminum edges and less wandering heat.
10–90% AC balance control lets you tune oxide cleaning versus penetration on stubborn aluminum.
40% duty cycle at 300A keeps production welds moving without constant cool-down interruptions.
2-gallon Arctic Chill water cooler protects the CK230 torch during long high-amp aluminum runs.
DESCRIPTION
REAL-WORLD CAPACITY SECTION
SPECIFICATIONS
ACCESSORIES
WARRANTY
USER MANUAL
SHIPPING
WHY BUY FROM US
DESCRIPTION

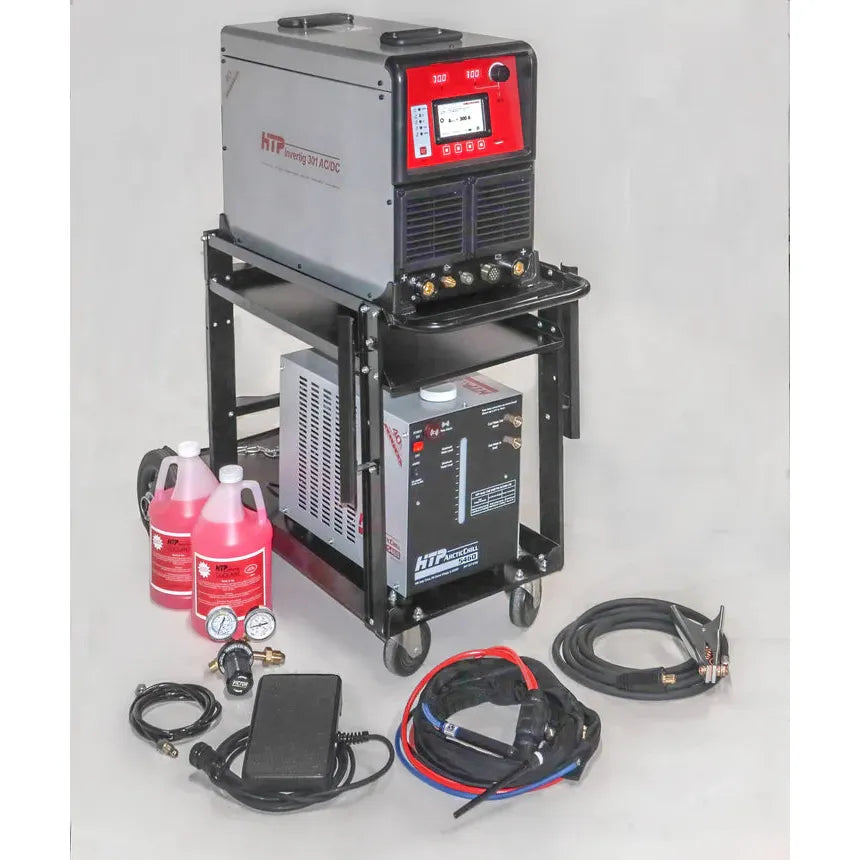

HTP America Invertig 301 AC DC TIG Welder Arctic Chill Water Cooled Package Product # 601779
Includes: Invertig 301 AC DC power source, Arctic Chill water cooler, CK230 series water cooled TIG torch, foot pedal, flowmeter regulator, gas hose, 2 gallons coolant, ground cable and clamp assembly, single phase power plug Does Not Include: Gas cylinder, filler rod, consumables, welding cart
Single phase 300 amp AC DC TIG welding system designed for aluminum fabrication and heavy duty welding applications.

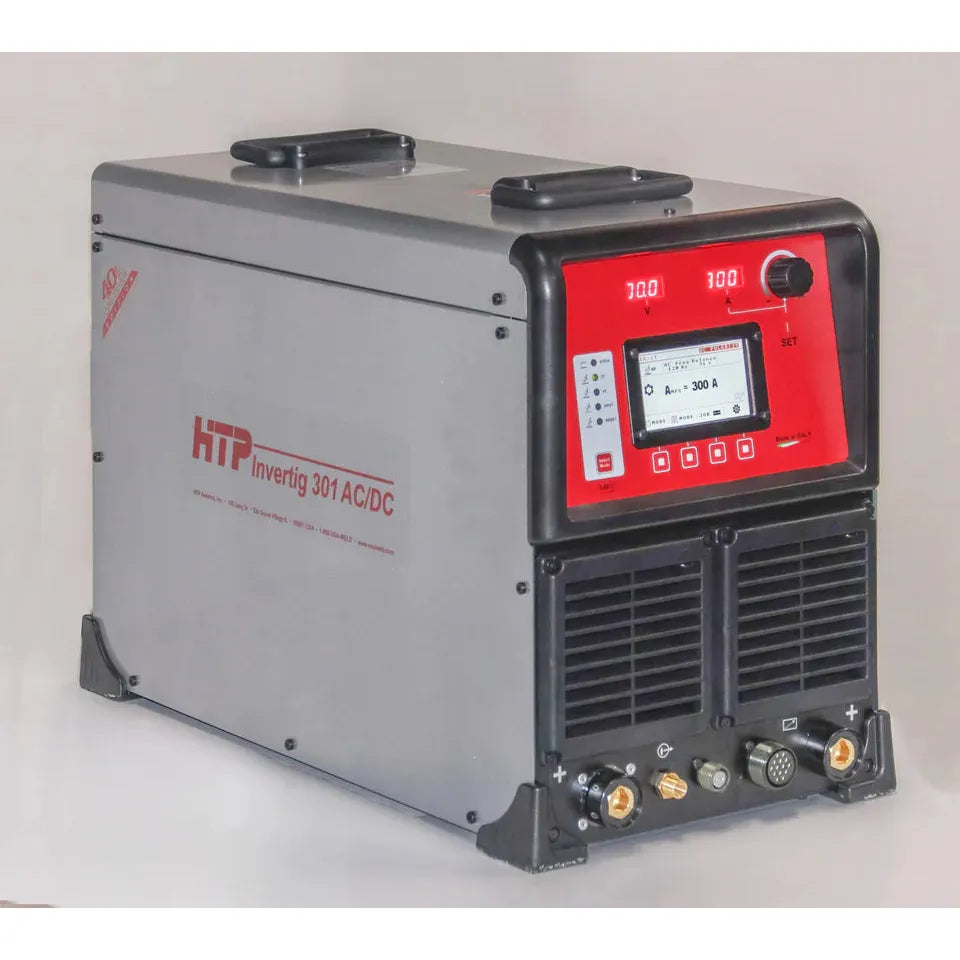

The Invertig 301 AC DC is a single phase TIG and Stick welding machine designed for fabrication shops and production welding environments. It supports TIG welding, pulsed TIG, Stick welding, and pulsed Stick welding processes.
The machine operates on 208 to 240V single phase power and produces up to 300 amps of TIG welding output. Advanced control settings allow adjustment of AC frequency, AC balance, waveform selection, and asymmetric arc control for aluminum welding.
This Arctic Chill package includes a water cooled TIG torch and a dedicated Arctic Chill water cooler. The cooler operates continuously and includes a flow alarm system that alerts the operator if coolant flow becomes restricted to help protect the torch.
Input Voltage: 230V single phase (208 to 240V) Maximum TIG Output: 300A Maximum Stick Output: 260A AC Frequency Range: 20 to 400 Hz under 100A AC Frequency Range: 20 to 200 Hz above 100A AC Balance Range: 10 to 90 percent Programmable Memory Slots: 30 Cooling System: Arctic Chill water cooler with flow alarm
USED FOR • Aluminum TIG welding and fabrication • Stainless steel and mild steel TIG welding • Pipe welding and precision fabrication • Motorsports and general fabrication shops
Not For • Shops without 208 to 240V single phase power • Portable field work requiring lightweight equipment • Users without water cooled TIG torch systems
If you do not have 208 to 240V single phase power, this is not your machine.
REAL-WORLD CAPACITY SECTION
Material Thickness | Performance Thin aluminum sheet | Precision TIG welding with AC control 1/4 inch aluminum | Single pass TIG welding 3/8 inch aluminum | Multi pass fabrication welding 1/2 inch aluminum | Heavy fabrication with proper joint preparation
Technical Specifications for the HTP America Invertig 301 AC DC TIG Welder Arctic Chill Water Cooled Package
Input Voltage 230V (208 to 240V) single phase Welding Current Range 4 to 300A Single Phase Input Amps @ Rated Load 54A Welding Modes Stick, TIG 2T, TIG 4T, TIG Spot, TIG Reset AC Frequency 20 to 400 Hz under 100A / 20 to 200 Hz above 100A AC Balance 10 to 90 percent AC Waveforms Soft Square, Square, Triangular Asymmetric Arc Yes EN Amperage Control 10 to 99 percent EP Amperage Control 10 to 99 percent Pre Flow 0.1 to 5 seconds Post Flow 0.1 to 99.9 seconds Initial Amps 10 to 90 percent Final Amps 10 to 90 percent Slope Up 0.1 to 10 seconds Slope Down 0.1 to 10 seconds Spot Time 0.1 to 10 seconds Hot Start 0 to 50 percent Arc Force 0 to 500 percent Programmable Memories 30 Dimensions (L x W x H) 26.5 in x 12.25 in x 17.5 in Weight 117 lbs
Pulse Parameters
Pulse Frequency Stick AC DC 0.4 to 5.0 PPS Pulse Frequency TIG AC 0.4 to 10 PPS Pulse Frequency TIG DC 0.4 to 999.9 PPS Peak Time 10 to 90 percent Background Amps 10 to 90 percent
Power Requirements
Single phase power input 208 to 240V 54 amp input current at rated load Single phase NEMA 6-50 plug included
ACCESSORIES
HTP America Invertig 301 AC DC TIG Welder Arctic Chill Water Cooled Package Includes
Invertig 301 AC DC power source Arctic Chill water cooler CK230 series water cooled TIG torch Foot pedal Flowmeter regulator Gas hose 2 gallons coolant Ground cable and clamp assembly Single phase plug
Upgrade options available via dropdown selections.
WARRANTY
Warranty
Manufacturer warranty included with purchase.
Warranty Information: The Invertig™ 301 welder (machine only) includes a 3 year warranty, the Arctic chill water cooler has an 18 month warranty, and the TIG welding torches are warrantied for a period of 90 days against defects in material and workmanship.
USER MANUAL
HTP Invertig 301 AC/DC Arctic Chill Water-Cooled Package User Manual
