Air Bending vs Bottoming vs Coining — Which Method Fits Your Shop?

Air Bending vs Bottoming vs Coining — Which Method Fits Your Shop?

If you operate a press brake or plan to add one to your shop, you’ll constantly hear three terms:

Air Bending, Bottoming, and Coining.

They’re not just technical differences — they directly affect tool life, tonnage requirements, accuracy, and profitability. Many shops use one method out of habit without realizing another approach would improve speed or reduce costs.

This guide breaks down each forming method in practical terms so you can decide which one actually fits your workload, skill level, and production goals.

Core Difference: How the Material Is Formed

All three methods bend metal using a punch and die — but the amount of pressure applied and how the metal contacts the die is what changes everything.

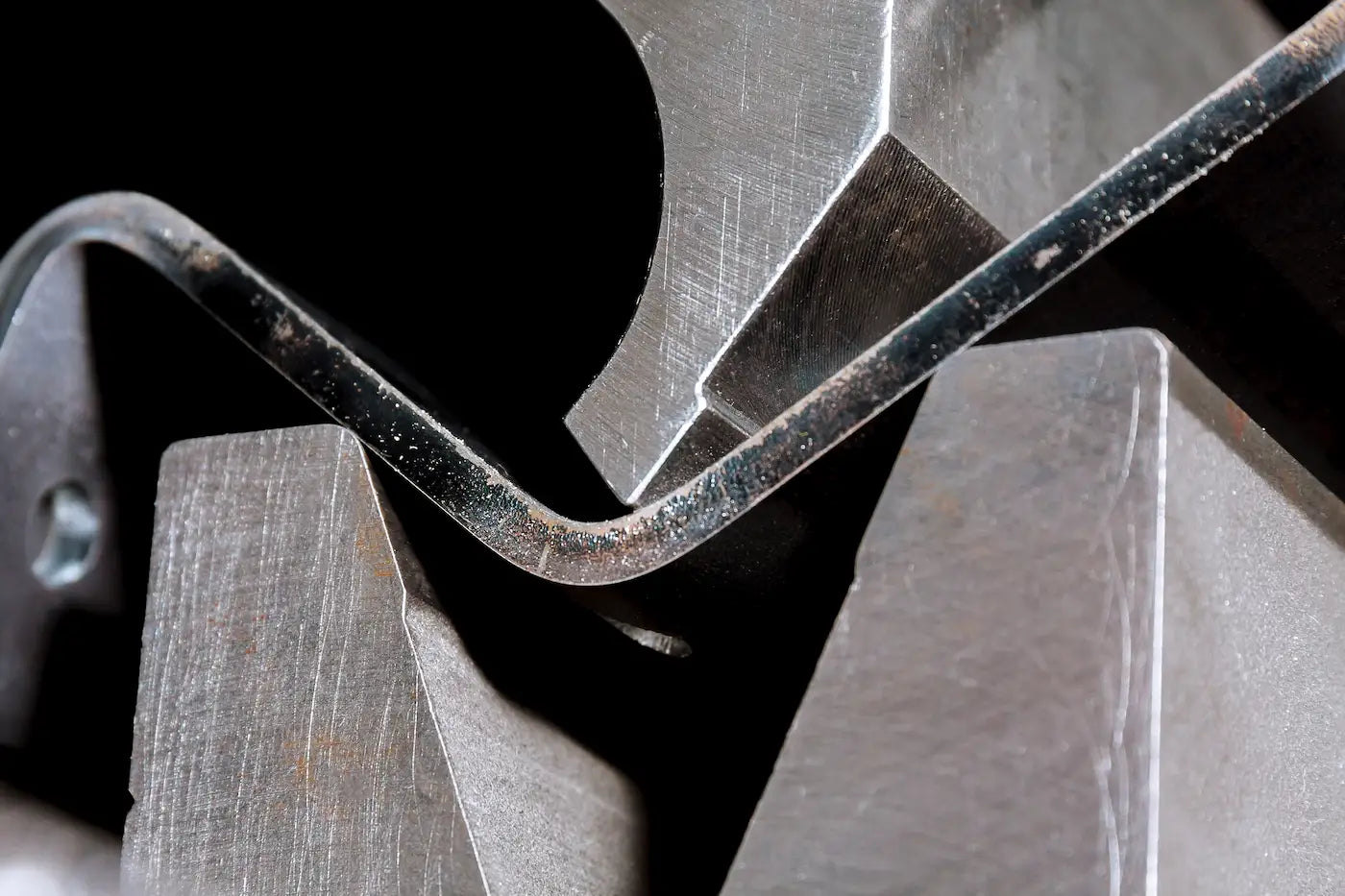

Air Bending

The punch does not fully bottom out into the die. The sheet touches only three points:

• Punch tip
• Two edges of the die opening

The angle is controlled by stroke depth rather than forcing the metal into the die shape.

Bottoming (Bottom Bending)

The punch pushes the material deeper so the metal fully contacts the die surfaces.

The die angle largely determines the final bend angle.

Coining

The punch applies extreme pressure, compressing the metal into the die and permanently reshaping the material at the bend line.

This method actually changes the metal’s structure at the bend.

Best For / Not For

Air Bending — Best For

✔ Most general fabrication work
✔ Shops running varied materials and thicknesses
✔ Low to medium tonnage press brakes
✔ Faster setup changes
✔ Reduced tool wear

Air Bending — Not For

✖ Extremely tight angle tolerances
✖ Parts requiring minimal springback
✖ High cosmetic consistency without adjustment

Bottoming — Best For

✔ Higher accuracy requirements
✔ Repeat production runs
✔ Reduced springback variation
✔ Moderate production environments

Bottoming — Not For

✖ Low-tonnage machines
✖ Shops constantly changing bend angles
✖ Operators wanting maximum flexibility

Coining — Best For

✔ Very tight tolerances
✔ Aerospace or precision components
✔ Minimal springback applications
✔ High-consistency production

Coining — Not For

✖ General fabrication work
✖ Shops trying to maximize tool life
✖ Lower-tonnage press brakes
✖ Cost-sensitive operations

Simple Decision Rules (If X → Then Y)

Use these practical rules:

• If flexibility and speed matter → Air Bend.
• If repeatability matters more than flexibility → Bottoming.
• If precision is critical and tonnage is available → Coining.
• If you switch materials constantly → Air Bend.
• If springback causes production issues → Bottoming or Coining.

Most shops don’t need coining — despite how often it’s discussed.

Air Bending: Why Most Shops Use It

Air bending dominates modern fabrication shops for a reason.

Advantages:

• Requires less tonnage (often 50% less or more than coining).
• One tool setup can create multiple angles.
• Faster job changes.
• Longer tool life.

Because angle control comes from ram depth, operators can adjust quickly without swapping dies.

The tradeoff:

• Springback must be compensated for.
• Material variations can affect accuracy.

For real-world fabrication — brackets, enclosures, structural parts — air bending is usually the most profitable method.

Bottoming: The Middle Ground

Bottoming solves one of air bending’s biggest issues: inconsistency caused by material variation.

Because the metal conforms to the die:

• Angle repeatability improves.
• Springback decreases.

But there’s a cost:

• Higher tonnage required.
• Less flexibility with angle adjustments.
• Increased tool stress.

Bottoming is often chosen by shops producing repeat parts where consistency matters but extreme precision isn’t necessary.

Coining: Precision at a Price

Coining applies enormous force to permanently compress the bend area.

Benefits:

• Extremely accurate angles.
• Near-zero springback.
• Highly repeatable results.

Drawbacks:

• Very high tonnage requirements.
• Faster tool wear.
• Slower process overall.
• Higher risk of damaging tools or material.

Many shops think coining equals “professional” bending. In reality, it’s rarely needed outside specialized production environments.

Tonnage Reality (The Part People Ignore)

Choosing the wrong method often overloads machines.

Approximate tonnage demands:

• Air Bending: Lowest tonnage
• Bottoming: ~3–5x air bending force
• Coining: Up to 10x air bending force

If your press brake is sized for air bending and you attempt coining regularly, you risk:

• Machine strain
• Tool failure
• Alignment issues

Always match forming method to machine capability.

Accuracy vs Flexibility Tradeoff

Think of these methods on a spectrum:

Method	Flexibility	Accuracy	Tool Wear
Air Bending	High	Moderate	Low
Bottoming	Medium	High	Medium
Coining	Low	Very High	High

The biggest mistake shops make is prioritizing accuracy when their customers don’t actually require it.

Honest Disqualifier (Read This Before Choosing)

Don’t use coining if:

• You run general fabrication jobs.
• Your tolerances don’t demand extreme precision.
• Your press brake tonnage is limited.

Overkill if:

• Parts are welded or finished later.
• ±1° angle variation is acceptable.
• You change setups frequently.

If your shop handles varied customer work:
Air bending is almost always the smarter default.

Precision processes only pay when customers pay for precision.

Recommended Setup (Power + Process + Range)

Recommended Air Bending Setup

• Press Brake: Standard hydraulic or CNC brake
• Tooling: Multi-angle punch + V-dies
• Best For: General fabrication, job shops
• Material Range: Thin sheet to heavy plate (machine dependent)

This setup offers maximum flexibility for most shops.

Recommended Bottoming Setup

• Press Brake: Moderate to high tonnage
• Tooling: Precision-matched punch and die
• Best For: Repeatable production runs

Use when repeat accuracy matters more than setup speed.

Recommended Coining Setup

• Press Brake: High-tonnage industrial machine
• Tooling: Hardened precision tooling
• Best For: Tight tolerance manufacturing

Only worthwhile when high precision directly drives revenue.

Real-World Shop Strategy

Many successful shops follow this approach:

1. Air bend everything by default.
2. Switch to bottoming only when consistency becomes a problem.
3. Reserve coining for specialty work.

This layered approach protects tooling and keeps production efficient.

Final Verdict

The best bending method isn’t the most advanced — it’s the one aligned with your workflow.

Choose Air Bending if:

• Flexibility and speed matter
• Jobs vary often
• You want lower operating costs

Choose Bottoming if:

• Repeat consistency matters
• Production runs are steady

Choose Coining if:

• Precision is mission-critical
• Your equipment supports the required tonnage

Most shops improve profitability not by adding complexity — but by using the simplest method that meets the job requirements.

If you’re unsure which process fits your operation, look at your last 20 jobs. The way you actually work will tell you exactly which bending method makes sense.
