Breaker Size Guide for Welders

(How to Choose the Right Circuit for MIG, TIG, and Stick Machines)

If your welder keeps tripping breakers, dimming lights, or feeling “weak” under load, the problem may not be the machine.

It may be your breaker size.

Choosing the correct breaker size for welders is one of the most misunderstood parts of setting up a fabrication shop or garage welding station. Many people assume voltage is the only thing that matters.

It’s not.

Breaker size determines:

How much current your welder can safely draw
Whether your machine performs at full capacity
Whether you experience nuisance trips
Whether your wiring stays safe

This guide explains how to choose the correct breaker size for MIG, TIG, and stick welders — and what most shops get wrong.

Why Breaker Size Matters for Welding

A circuit breaker protects wiring — not your welder.

That’s important.

If your welder requires 50 amps at 240V, but you install it on a 30-amp breaker, the breaker will trip before the welder reaches full output.

This leads to:

Interrupted welds
Inconsistent arc performance
Reduced duty cycle
Frustration

Undersizing breakers limits your machine.

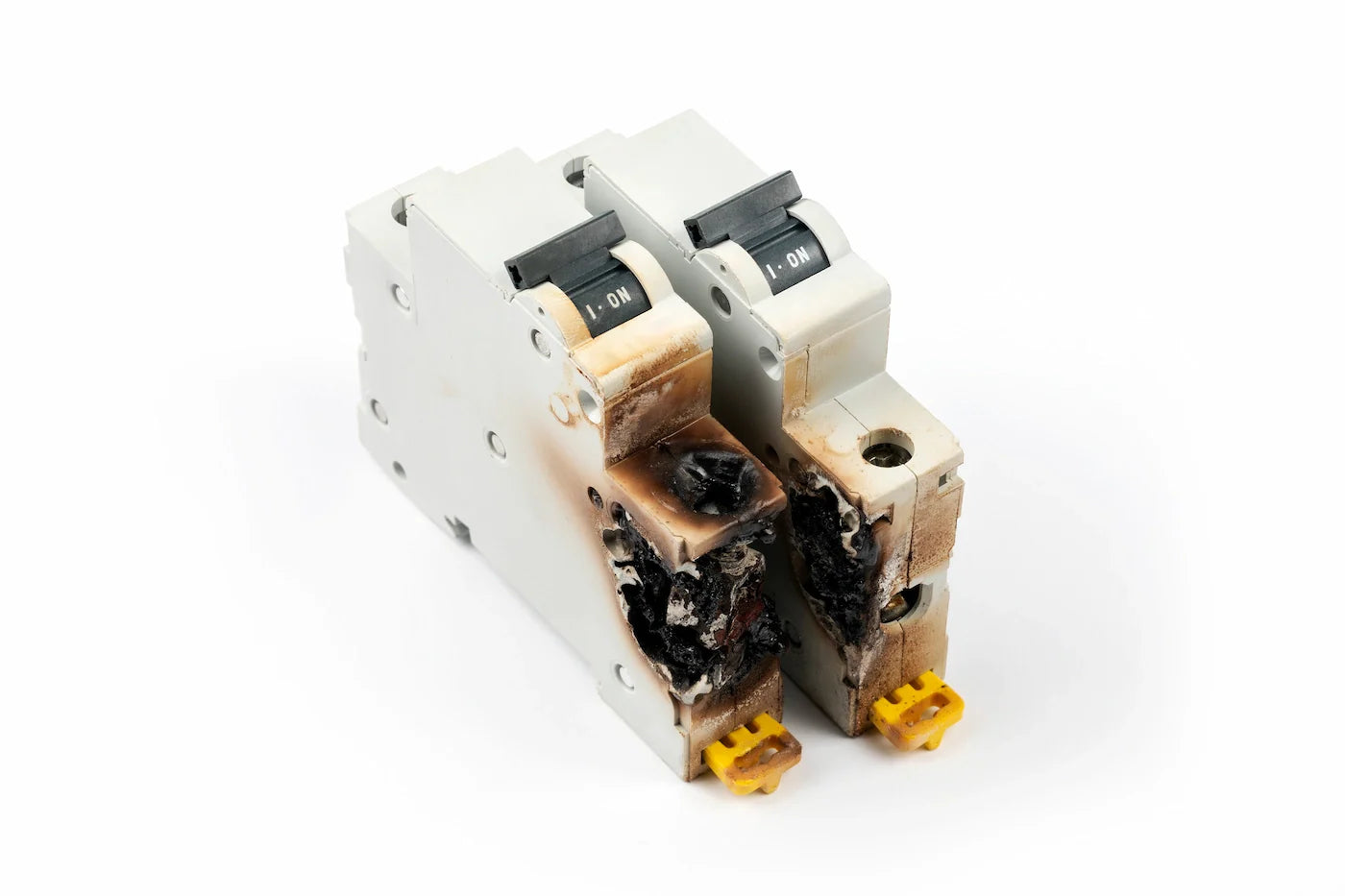

Oversizing breakers without upgrading wiring creates fire risk.

Breaker size must match both:

Manufacturer recommendations
Proper wire gauge

Step 1: Check the Welder Input Requirements

Every welder has an input specification label or manual section listing:

Input voltage (120V / 240V / dual voltage)
Input amperage at rated output
Recommended breaker size

Example:

A 240V 210-amp MIG welder may list:

Input current: 35–45 amps
Recommended breaker: 50 amps

Do not guess breaker size.

Always start with manufacturer specs.

Common Breaker Sizes for Welders

Here’s a general reference for residential and small shop welders:

120V Welders (Light-Duty)

Input draw: 20–25 amps
Breaker size: 20–30 amps

Most small 120V welders require a dedicated 20-amp circuit minimum.

If plugged into shared household outlets, expect breaker trips.

240V 180–210 Amp MIG Welders

Input draw: 30–45 amps
Breaker size: 40–50 amps

This is the most common class for small fabrication shops.

240V 250 Amp MIG / TIG Welders

Input draw: 40–60 amps
Breaker size: 50–60 amps

Higher amperage welders need heavier wiring and dedicated circuits.

Stick Welders (SMAW)

Stick welders often draw high current during arc start.

Common requirement:

50–60 amp breaker
Dedicated 240V circuit

Always verify input draw.

Breaker Size vs Wire Gauge

Breaker size and wire gauge must match.

Typical copper wire sizing guidelines:

20A breaker → 12 AWG
30A breaker → 10 AWG
40A breaker → 8 AWG
50A breaker → 6 AWG
60A breaker → 6 AWG (sometimes 4 AWG depending on run length)

Never increase breaker size without upgrading wiring.

That defeats the protection purpose.

Step 2: Understand Duty Cycle and Current Draw

Welders don’t draw maximum current continuously.

They operate based on duty cycle.

Example:

A welder rated at:

40% duty cycle at 200 amps

Means it draws heavy current for 4 minutes out of 10.

However:

If you regularly weld near maximum output, your breaker must support sustained draw.

If you undersize the breaker, it will trip during longer weld passes.

Why Breakers Trip While Welding

Common reasons include:

Breaker too small
Shared circuits with other tools
Long extension cords causing voltage drop
Poor connections
Old breakers losing sensitivity calibration

Before upgrading the welder, evaluate circuit design.

Dedicated Circuits Are Essential

Welders should be installed on dedicated circuits.

Do not share a welder circuit with:

Air compressors
Plasma cutters
Large grinders
HVAC units

Simultaneous load increases total amperage draw.

Dedicated circuits improve stability and safety.

Extension Cord Mistakes

Long extension cords create voltage drop.

Voltage drop increases current demand, which:

Trips breakers
Reduces arc performance
Overheats cable

If you must use an extension cord:

Use appropriate gauge (6–8 AWG for 50A circuits)
Keep it short
Avoid coiled cords under load

Permanent outlet installation is better.

Dual Voltage Welders and Breaker Size

Many modern MIG welders are dual voltage (120V / 240V).

Important:

The breaker size changes depending on voltage.

Example:

At 120V, the welder may draw 25 amps.
At 240V, it may draw 35–40 amps.

Running dual-voltage welders on 240V:

Reduces input current
Improves arc stability
Increases output capability

If possible, use 240V for serious fabrication.

Simple Decision Rules (If X → Then Y)

If your welder draws 45 amps → Install 50-amp breaker with proper wire.

If breakers trip during long welds → Verify breaker size and wire gauge.

If you run multiple machines → Separate circuits.

If you plan to upgrade welder → Check panel capacity first.

If your panel is under 100 amps → Consider service upgrade before expansion.

Panel Capacity Matters

Breaker size is one piece of the puzzle.

Total panel capacity determines how many circuits you can run simultaneously.

Small garages often have:

100-amp service

If you install:

50A welder
40A plasma cutter
30A compressor

You may exceed service limits during peak load.

For growing fabrication shops, 200-amp service is often more realistic.

Residential vs Commercial Considerations

Residential wiring may:

Limit panel size
Restrict breaker slots
Lack three-phase options

Commercial shops often have:

Higher service amperage
More panel capacity
Industrial wiring standards

Know your building limitations before buying larger equipment.

Breaker Type: Standard vs Slow-Blow

Welders can produce inrush current when arc starts.

Some breakers trip because they respond too quickly.

Depending on local electrical code, a time-delay or appropriately rated breaker may reduce nuisance trips.

Always follow electrical code and manufacturer guidance.

Consult a licensed electrician if unsure.

Signs Your Breaker Is Undersized

Trips during long weld passes
Trips when turning up amperage
Arc feels weak at higher settings
Machine struggles to reach rated output

If these occur, verify circuit sizing.

Signs Your Wiring Is Undersized

Cables feel warm
Breakers trip inconsistently
Voltage drop noticeable
Lights dim during welding

Undersized wiring is both a performance and safety issue.

FAQ

What size breaker do I need for a 240V welder?

Most 200–250 amp MIG welders require 50–60 amp breakers. Always verify manufacturer specs.

Can I run a welder on a 30 amp breaker?

Only if the welder input requirement allows it. Many 240V welders require more.

Why does my breaker trip when welding?

Likely undersized breaker, shared circuits, or voltage drop from long cords.

Do I need a dedicated circuit for my welder?

Yes. Dedicated circuits improve safety and performance.

Honest Disqualifier

If you:

Weld occasionally
Use a small 120V welder
Never exceed 1/8" material

A 20-amp circuit may be sufficient.

But if you fabricate daily or weld thicker steel, investing in proper 240V service and correct breaker sizing improves reliability immediately.

Final Takeaway

Choosing the correct breaker size for welders requires understanding:

Input amperage
Voltage requirements
Duty cycle
Wire gauge
Panel capacity
Simultaneous load

Common mistakes include:

Undersized breakers
Shared circuits
Improper wiring
Long extension cords
Ignoring panel limits

Your welder can only perform as well as your power supply allows.

Match breaker size to manufacturer recommendations.

Use proper wire gauge.

Install dedicated circuits.

Plan for growth.

Proper electrical setup ensures:

Stable arc performance
Fewer interruptions
Improved safety
Long-term reliability

Get your breaker sizing right, and your welder will perform the way it was designed to.
