Choosing the wrong lathe chuck costs time, accuracy, and sometimes the part.
Choosing the right one improves concentricity, reduces setup time, and expands what your lathe can realistically handle.
The debate usually comes down to three systems:
-
3-jaw chucks
-
4-jaw chucks
-
Collet systems
They are not interchangeable. Each one solves a different work holding problem.
If you understand accuracy, part geometry, production volume, and tolerance requirements, the decision becomes simple.
This guide breaks down lathe chuck types in practical shop terms — not catalog descriptions.
What a Lathe Chuck Actually Does
A lathe chuck holds material concentrically while it rotates.
That sounds simple.
In reality, chuck selection affects:
-
Runout
-
Repeatability
-
Setup time
-
Grip strength
-
Surface finish
-
Production efficiency
The wrong chuck can introduce vibration, misalignment, or scrap parts.
Workholding is not a minor accessory decision — it directly impacts machining quality.
The Three Main Lathe Chuck Types
1. 3-Jaw Self-Centering Chuck
2. 4-Jaw Independent Chuck
3. Collet Chuck / Collet System
Each one has distinct mechanical behavior.
Let’s break them down.

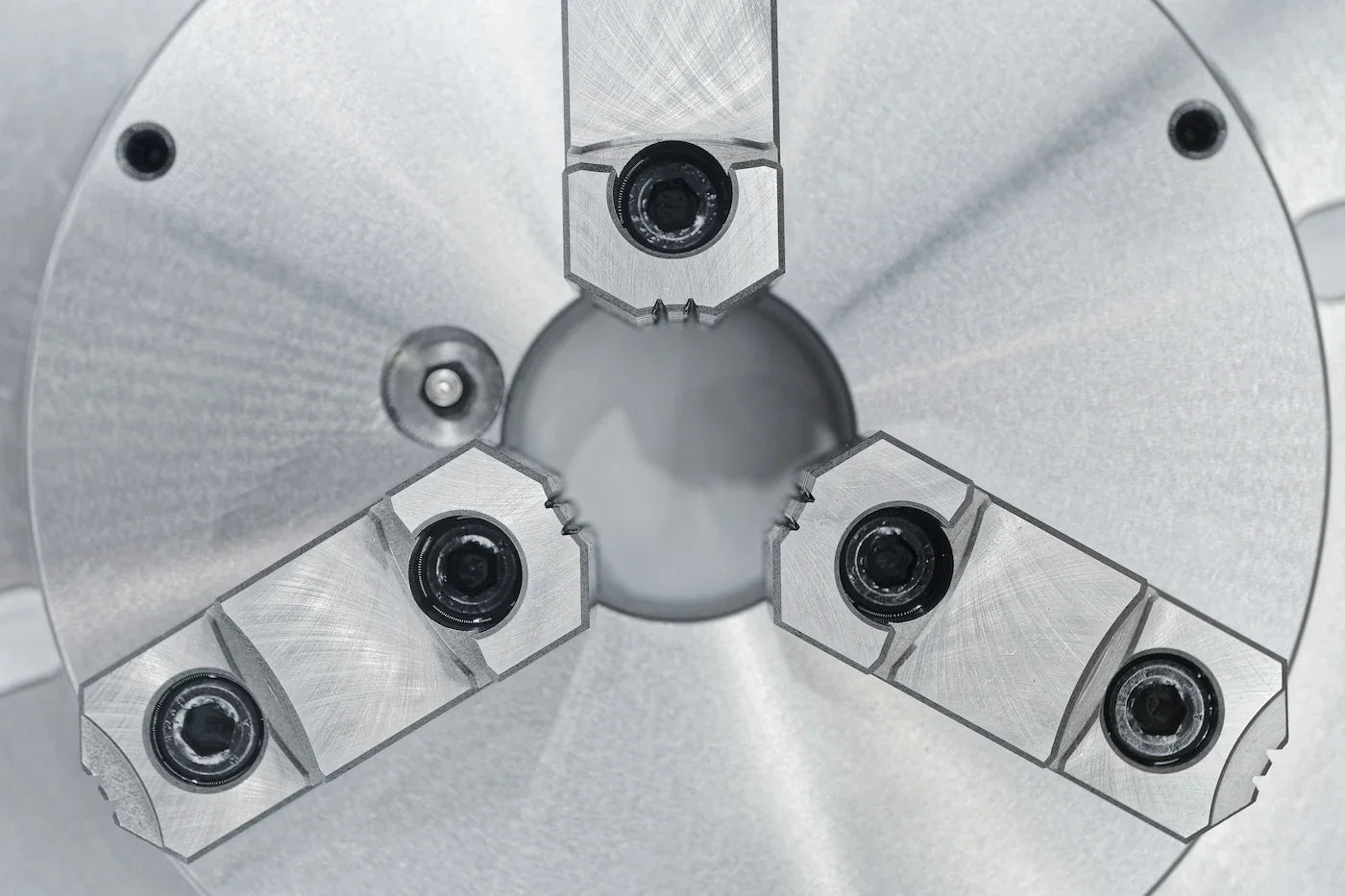

3-Jaw Chuck (Self-Centering)
The 3-jaw chuck is the most common lathe chuck in general machining.
It uses a scroll plate that moves all three jaws simultaneously when you turn the key.
That means:
-
Fast setup
-
Automatic centering
-
Minimal adjustment
It’s the default choice for round stock.
Best For
-
Round bar stock
-
Hex stock (with proper jaws)
-
Quick job shop setups
-
Medium tolerance work
-
General-purpose turning
If you’re running mixed work in a fabrication or repair environment, the 3-jaw chuck is often your everyday solution.
Not For
-
Precision concentricity work under tight tolerances
-
Irregular shapes
-
Off-center turning
-
Maximum gripping force applications
Accuracy of a 3-Jaw Chuck
Standard 3-jaw chucks typically produce:
-
0.001"–0.003" runout (new, quality chuck)
-
More as it wears
Because the scroll moves all jaws together, you cannot individually correct runout.
If your part needs to run dead true within tenths, a 3-jaw may not be enough.
Advantages of a 3-Jaw Chuck
-
Fast setup
-
Self-centering
-
Easy for beginners
-
Ideal for repetitive round parts
-
Versatile in general fabrication
For job shops, time savings matter.
A 3-jaw chuck reduces setup friction.
Limitations of a 3-Jaw Chuck
-
Limited fine adjustment
-
Reduced grip strength compared to 4-jaw
-
Less accurate for tight tolerance precision
-
Wear in scroll reduces long-term accuracy
It’s a convenience tool, not a precision alignment tool.
4-Jaw Independent Chuck
A 4-jaw independent chuck allows each jaw to move separately.
There is no scroll plate.
Each jaw is adjusted individually using a chuck key.
That means:
-
Full control
-
Adjustable centering
-
Ability to hold irregular shapes
But also:
-
Slower setup
Best For
-
Square stock
-
Irregular parts
-
Precision centering
-
Off-center turning
-
Heavy gripping force
If you need to dial in a part to near-zero runout, a 4-jaw is superior.
Not For
-
High-volume repetitive round parts
-
Fast setup production environments
-
Beginners unfamiliar with dialing in parts
Accuracy of a 4-Jaw Chuck
With a dial indicator and patience, you can achieve:
-
Near-zero runout
-
Extremely precise concentric alignment
Because each jaw is independent, you control the alignment manually.
For tight-tolerance turning, 4-jaw wins.
Grip Strength Comparison
4-jaw chucks typically provide:
-
Stronger gripping force
-
Better holding on irregular surfaces
-
Reduced slippage in heavy cuts
For heavy roughing passes, a 4-jaw often performs better.
Off-Center Turning
If you need to:
-
Turn eccentric parts
-
Machine offset features
-
Create cam shapes
Only a 4-jaw makes this practical.
A 3-jaw cannot intentionally offset.
Collet Systems
Collet systems use spring steel collets that collapse uniformly around the workpiece.
Common systems include:
-
ER collets
-
5C collets
-
R8 collets
-
Specialty CNC collet systems
Collets grip 360 degrees around the part.
That changes everything about precision and repeatability.
Best For
-
Small diameter stock
-
High precision turning
-
Production runs
-
CNC lathe work
-
Repetitive short parts
Collets shine in small-part precision environments.
Not For
-
Large diameter parts
-
Irregular shapes
-
Quick one-off heavy plate work
Accuracy of Collets
Collets offer:
-
Extremely low runout
-
Excellent concentricity
-
High repeatability
In many cases, better than standard 3-jaw chucks.
That’s why CNC lathes often use collet systems for production.
Grip Distribution
Unlike jaws that contact in limited areas, collets:
-
Grip evenly around the circumference
-
Reduce part distortion
-
Improve surface finish
For thin-wall tubing or precision rods, collets are ideal.
3-Jaw vs 4-Jaw vs Collet — Side-by-Side Comparison
| Feature | 3-Jaw | 4-Jaw | Collet |
|---|---|---|---|
| Setup Speed | Fast | Slow | Fast |
| Precision | Moderate | High | Very High |
| Grip Strength | Moderate | High | Moderate |
| Irregular Shapes | No | Yes | No |
| Off-Center Turning | No | Yes | No |
| Production Efficiency | Good | Low | Excellent (small parts) |
| Best For | General round work | Precision / irregular | Small precision parts |
Simple Decision Rules (If X → Then Y)
If you need speed and general turning → 3-jaw.
If you need maximum accuracy → 4-jaw.
If you run small precision production → collet system.
If you turn square stock → 4-jaw.
If you machine thin tubing → collet.
If you’re a fabrication shop doing repair work → 3-jaw + 4-jaw combo.
Runout and Tolerance Considerations
Tolerance requirements dictate chuck choice.
If your tolerance is:
±0.005" → 3-jaw likely fine.
±0.001" → 4-jaw or collet preferred.
Sub-thousandth repeatability → collet system or precision 4-jaw.
Never match a loose chuck to tight tolerance work.
Production vs Job Shop Environments
Job Shop
Common setup:
-
3-jaw for daily work
-
4-jaw for precision or odd shapes
Flexibility matters more than speed.
Production Shop
Common setup:
-
Collet system for small repetitive parts
-
Hydraulic collet closer on CNC
Speed and repeatability drive profit.
When a 3-Jaw Is Not Enough
If you experience:
-
Excess runout
-
Inconsistent finishes
-
Parts running out-of-true
-
Vibration in heavier cuts
You may need a 4-jaw or collet.
Scroll wear over time reduces accuracy.
When a 4-Jaw Is Overkill
If:
-
You rarely need extreme precision
-
You prioritize speed
-
You don’t machine irregular parts
Spending time dialing in every part reduces efficiency.
When Collets Make Sense
Collets are ideal when:
-
You run high volumes of identical parts
-
Part diameter is consistent
-
Precision matters
-
Cycle time is critical
Collet systems reduce setup dramatically in production.
Cost Considerations
3-Jaw
-
Affordable
-
Standard inclusion on many lathes
4-Jaw
-
Slightly more expensive
-
Added flexibility
Collet Systems
-
Initial investment higher
-
Multiple collets required
-
Often require closer system
But for production, ROI can justify cost.
Hybrid Setups
Most serious shops use:
-
3-jaw for general work
-
4-jaw for precision and odd shapes
-
Collet system for small part runs
You don’t choose one — you choose based on job type.
Common Mistakes
-
Expecting 3-jaw to deliver precision without checking runout
-
Avoiding 4-jaw because of setup time
-
Ignoring collets for production work
-
Running worn chucks too long
-
Using wrong jaw style for material
Chuck wear is real.
Regular inspection matters.
Honest Disqualifier
If you only run occasional general fabrication work:
A collet system may not justify cost.
If you never machine square or irregular stock:
A 4-jaw may sit unused.
If you expect perfect concentricity from a worn 3-jaw:
You’re chasing the wrong solution.
Match the chuck to the work.
FAQ
Is a 4-jaw more accurate than a 3-jaw?
Yes. It allows independent adjustment for near-zero runout.
Are collets better than chucks?
For small precision parts, yes. For large or irregular parts, no.
Can I hold square stock in a 3-jaw?
Not properly. Use a 4-jaw.
Which chuck is strongest?
4-jaw generally offers strongest mechanical grip.
Should I replace a worn 3-jaw?
If runout affects tolerance or finish, yes.
Final Takeaway
Lathe chuck selection is about:
-
Part geometry
-
Tolerance requirement
-
Production volume
-
Setup time
-
Grip strength
3-jaw is versatile and fast.
4-jaw is precise and powerful.
Collet systems are unmatched for small, repeatable, high-precision production.
No single chuck type is “best.”
The best one is the one matched to your actual workload.
Buy based on the parts you machine — not the convenience of the mechanism.
That’s how you reduce scrap, improve accuracy, and increase efficiency in your shop.
