CNC Machine Size — How Much Table Travel Do You Actually Need?
CNC Machine Size — How Much Table Travel Do You Actually Need?

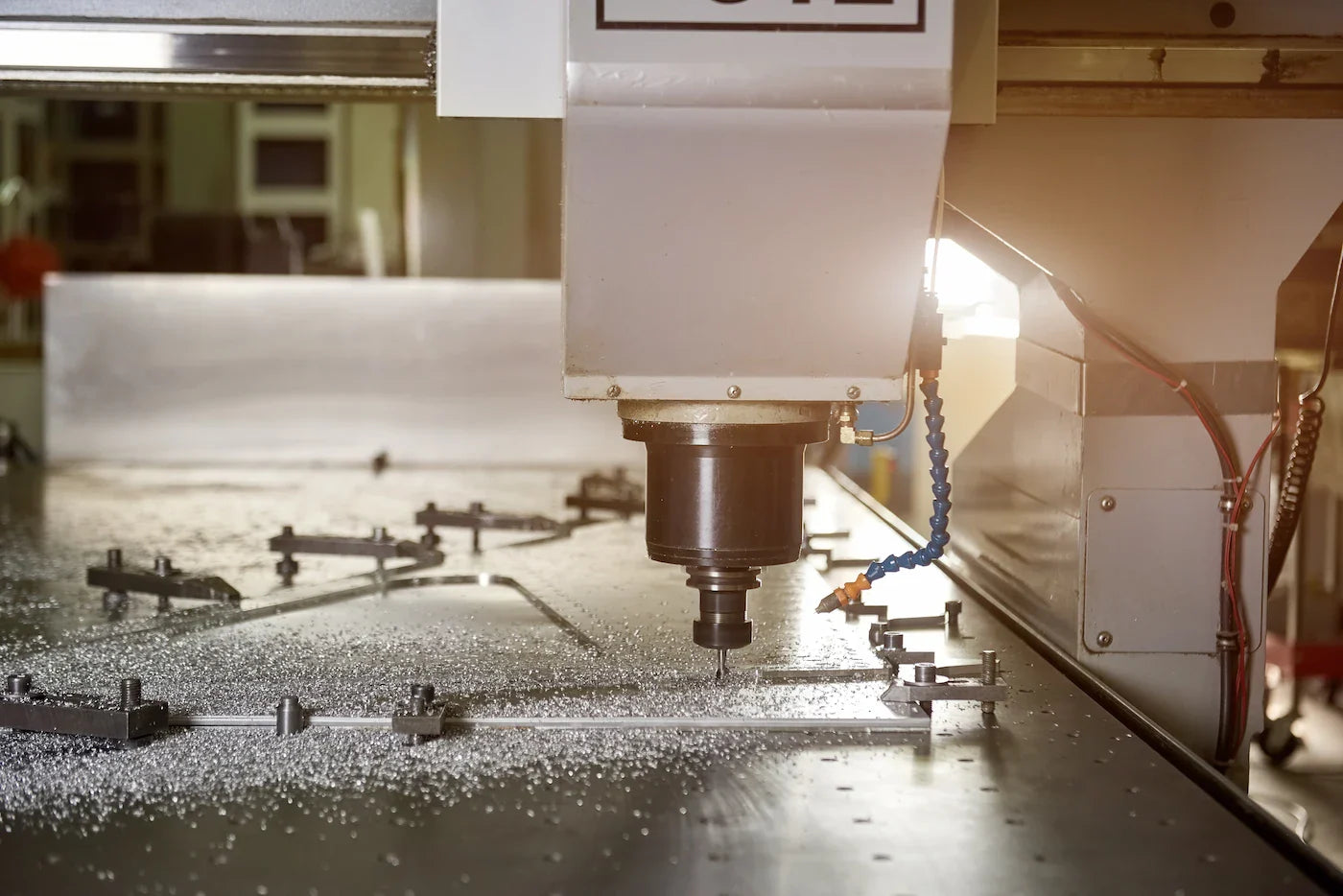

Buying a CNC machine based on “bigger is better” is one of the fastest ways to waste capital.
Buying too small is just as bad — you’ll hit limits, turn down work, or fight awkward setups that slow production.
CNC machine size isn’t about overall footprint.
It’s about usable table travel, work envelope, part size, tooling clearance, and the type of jobs you actually run.
If you understand those variables, choosing the right CNC machine size becomes straightforward.
If you don’t, you’ll either overspend or underbuy.
This guide breaks down CNC machine size in practical shop terms — not brochure specs.
What CNC Machine Size Actually Means
When people talk about CNC size, they usually mean:
-
X-axis travel
-
Y-axis travel
-
Z-axis travel
That’s the machine’s work envelope.
Example:
A machine with:
-
40" X travel
-
20" Y travel
-
25" Z travel
Does not automatically mean you can machine a 40" × 20" part.
Why?
Because fixtures, vises, clamps, and tool length consume usable space.
Real usable cutting area is often smaller than advertised travel.
Table Travel vs Usable Work Area
This is where many buyers get it wrong.
If a vertical machining center (VMC) lists:
X travel: 40"
That’s spindle movement, not guaranteed part capacity.
You must subtract:
-
Vise width
-
Fixture overhang
-
Clamp clearance
-
Tool stick-out
-
Workholding hardware
In many real-world cases:
A 40" X travel machine may realistically support:
30–34" long parts comfortably.
If you routinely machine 36" parts, that machine is tight.
Best For / Not For
This guide is best for:
-
Shops upgrading from manual to CNC
-
Fabricators adding machining capability
-
Buyers comparing 20", 30", and 40" travel machines
-
Shops expanding into larger part work
Not for:
-
Hobby desktop CNC routers
-
Ultra-high-end 5-axis production centers
-
Specialty gantry systems (different sizing logic)
Why Oversizing a CNC Machine Is Expensive
Larger CNC machines mean:
-
Higher purchase cost
-
Larger footprint
-
Higher power requirements
-
Increased tooling cost
-
Higher maintenance expense
And often:
-
Slower spindle acceleration
-
More inertia
-
Longer cycle times for small parts
If your typical part is 8" × 8", buying a 50" travel machine hurts ROI.
Machine mass affects speed.
Why Undersizing Is Risky
Buying too small means:
-
Turning down larger jobs
-
Re-fixturing multiple times
-
Inconsistent setups
-
Reduced repeatability
-
Customer limitations
Shops that “grow into” capacity often wish they bought slightly larger.
The key is controlled margin — not doubling capacity unnecessarily.
The 3 Core Sizing Variables
To determine CNC machine size correctly, evaluate:
-
Maximum part dimensions
-
Typical part dimensions
-
Future job trajectory
All three matter.
If your largest part is 36", but 80% of your work is under 18", that influences machine class.
Simple Decision Rules (If X → Then Y)
If 90% of your parts are under 12" → 20" class machine may be enough.
If you routinely machine 24–30" parts → 30–40" travel class.
If you work on structural components over 40" → consider 50"+ or gantry.
If you’re unsure about growth → add 10–20% margin, not 100%.
X, Y, and Z Travel Explained
X-Axis (Length)
Most critical for long parts.
If you machine brackets, plates, housings — X travel limits length.
Y-Axis (Width)
Often overlooked.
If your parts are wide plates or require multiple vises side-by-side, Y travel matters significantly.
A machine with narrow Y travel restricts multi-part setups.
Z-Axis (Height)
Z travel impacts:
-
Tall fixtures
-
Deep pockets
-
Tool length clearance
-
4th-axis rotary height
If you plan to add a rotary table, you need extra Z clearance.
Many buyers forget this.
CNC Machine Size Classes (Vertical Machining Centers)
Here’s a practical breakdown:
Small VMC (20"–24" X Travel)
Best for:
-
Small brackets
-
Production of small components
-
High-speed small part machining
Limitations:
-
Larger plate work restricted
-
Fixture stacking limited
Mid-Size VMC (30"–40" X Travel)
Most common class.
Best for:
-
General machining
-
Fabrication shop expansion
-
Mixed part sizes
Balance of:
-
Flexibility
-
Cost
-
Productivity
This is often the sweet spot.
Large VMC (50"+ X Travel)
Best for:
-
Structural machining
-
Large plate work
-
Heavy components
-
Oversized housings
Downside:
-
Higher cost
-
Slower small-part efficiency
-
Large floor footprint
Work Envelope vs Fixture Strategy
Machine size should match fixture strategy.
If you plan to:
-
Run 2–3 vises side-by-side
-
Machine multiple parts per cycle
-
Run tombstone setups
You need additional Y travel.
Multi-part efficiency is often more important than single large part capacity.
Fixture Stack Height and Z Clearance
Many shops buy a machine with just enough Z travel for part height.
Then they add:
-
Rotary table
-
4th axis
-
Hydraulic fixture
-
Extended tool holders
Now Z travel is insufficient.
Always account for:
-
Part height
-
Fixture height
-
Tool stick-out
-
Clearance above workpiece
Add buffer.
CNC Machine Footprint vs Shop Space
Machine travel isn’t machine footprint.
A 40" travel VMC may require:
-
8–10 feet width
-
10–12 feet depth
-
Overhead clearance
Don’t buy a machine that disrupts workflow.
Bigger machine in cramped shop reduces productivity.
Production Volume Matters
If you run high production of small parts:
Smaller machine:
-
Faster acceleration
-
Shorter tool change travel
-
Better energy efficiency
If you run job shop work:
Mid-size machine offers flexibility.
If you run heavy industrial contracts:
Large capacity becomes necessary.
Tool Changer and Spindle Considerations
Larger machines often include:
-
Larger tool changers
-
Bigger spindle motors
-
Higher torque
But if your work doesn’t require heavy material removal, that’s wasted capital.
Machine size should match spindle horsepower requirements.
4th Axis and Rotary Tables
If you plan to add:
-
4th axis rotary
-
Trunnion
-
Indexing system
You must factor in:
-
Additional height
-
Clearance during rotation
-
Y-axis width
Many mid-size machines lose usable space once a rotary is installed.
Plan ahead.
When to Step Up a Size Class
Upgrade machine class if:
-
You frequently re-fixture long parts
-
You split machining operations due to travel limits
-
Customers request larger plate work
-
You foresee contract growth
Do not upgrade based on one occasional large job.
When to Stay Smaller
Stay smaller if:
-
Most jobs are compact
-
Shop space is limited
-
Power capacity is constrained
-
Cash flow is tight
-
Production speed matters more than envelope size
Small, efficient machines often outperform oversized ones in real production.
Comparing 30" vs 40" Travel Machines
Common buyer dilemma.
30" Travel
Pros:
-
Lower cost
-
Smaller footprint
-
Faster acceleration
Cons:
-
Tight for 30"+ parts
-
Limited fixture stacking
40" Travel
Pros:
-
More flexibility
-
Handles wider plate work
-
Better for growth
Cons:
-
Higher cost
-
Larger footprint
If you routinely machine 28–32" parts, 40" travel gives margin.
If most parts are under 20", 30" may be optimal.
Gantry vs Standard VMC
For very large plate work (60"+):
Gantry systems may be better.
However:
-
Higher cost
-
Larger space requirements
-
Often slower for small parts
Don’t jump to gantry unless your workload demands it.
Honest Disqualifier
Do not buy a large CNC machine if:
-
Your average part fits in one vise
-
You don’t have consistent large contracts
-
Shop space is limited
-
Electrical service is constrained
-
You are financing aggressively
Oversized machines increase overhead.
Bigger monthly payments increase pressure.
Growth should be calculated, not speculative.
Real-World Example
Shop A:
Machines brackets under 12".
Buys 50" travel machine “for growth.”
Outcome:
-
Slower cycle times
-
Underutilized capacity
-
Higher cost per part
Shop B:
Machines 36" plates regularly.
Buys 30" travel machine.
Outcome:
-
Constant re-fixturing
-
Lost contracts
-
Limited growth
Right-sizing prevents both problems.
FAQ
How much CNC travel do I need?
Base it on your largest regular part, not your largest rare job.
Should I oversize for future growth?
Add modest margin (10–20%), not double capacity.
Does larger machine mean more rigidity?
Not always. Machine construction matters more than travel length.
Is bigger CNC machine slower?
For small parts, yes. More mass means slower acceleration.
Can I machine longer parts than X travel?
Only with repositioning and re-fixturing — which reduces accuracy and efficiency.
Final Takeaway
CNC machine size is not about bragging rights.
It’s about:
-
Maximum part dimensions
-
Fixture strategy
-
Production efficiency
-
Shop space
-
Growth trajectory
Buy based on real workload data.
Measure:
-
Largest recurring part
-
Average part size
-
Fixture height
-
Clearance requirements
Then choose the machine that covers your needs with controlled margin — not unnecessary excess.
Right-sized machines:
-
Improve ROI
-
Increase productivity
-
Reduce wasted capital
-
Support steady growth
Bigger isn’t better.
Correctly matched is better.
