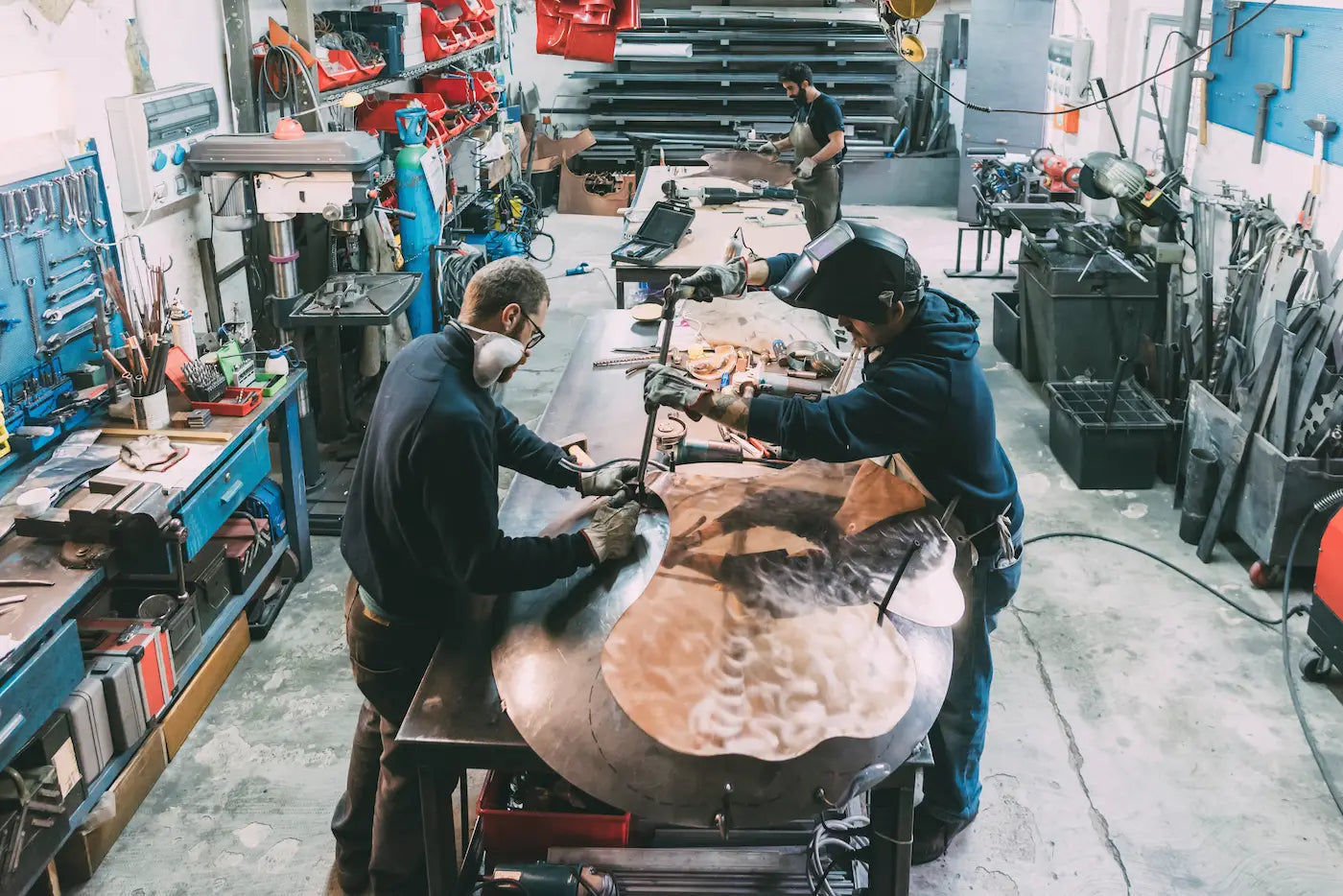

Shop Layout for Metal Fabrication
(How Smart Layout Increases Productivity, Safety, and Profit)
In a metal fabrication shop, layout isn’t just about where machines fit.
It determines:
-
Workflow efficiency
-
Material handling time
-
Safety
-
Throughput
-
Operator fatigue
-
Scalability
Many small fabrication shops grow organically. A welder gets placed where there’s room. A band saw gets pushed against a wall. A press brake ends up wherever power is available.
Over time, that reactive layout costs money.
If you’re searching for “metal fabrication shop layout ideas” or “how to design a fabrication shop floor plan,” this guide breaks down how to design a layout that improves productivity instead of slowing it down.
Why Shop Layout Matters More Than Equipment
You can have excellent equipment and still run an inefficient shop.
Poor layout leads to:
-
Excess walking
-
Material congestion
-
Safety hazards
-
Rework due to poor staging
-
Slower production cycles
In production environments, wasted motion adds up quickly.
A well-planned fabrication shop layout reduces unnecessary movement and improves workflow clarity.
Layout isn’t cosmetic.
It’s operational.
The Core Principle: Workflow Direction
The most efficient fabrication shops follow a logical flow:
Material In → Cutting → Forming → Machining → Welding → Finishing → Assembly → Shipping
When layout follows process order:
-
Material moves forward
-
Backtracking is minimized
-
Confusion decreases
When layout is random:
-
Parts cross paths
-
Operators compete for space
-
Mistakes increase
Start by mapping your actual workflow.
Then arrange machines in process order.
Best For / Not For
This Guide Is Best For:
-
Small to mid-size fabrication shops
-
Garage shops scaling up
-
Owners reorganizing workspace
-
Shops adding new equipment
Not For:
-
Large industrial plants with dedicated engineering teams
This focuses on practical layout improvements.
Step 1: Define Functional Zones
Every fabrication shop should define clear zones:
-
Raw material storage
-
Cutting area
-
Forming area
-
Machining area
-
Welding area
-
Grinding and finishing area
-
Assembly area
-
Shipping and staging
Even in smaller spaces, visual separation improves efficiency.
Zones prevent workflow confusion.
Raw Material Storage
Material storage should be:
-
Near shop entrance
-
Close to cutting equipment
-
Accessible by forklift or cart
Stacking materials randomly creates:
-
Searching time
-
Damage risk
-
Congestion
Organize stock by:
-
Thickness
-
Material type
-
Common use
Clear labeling reduces wasted time.
Cutting Area Layout
The cutting area often includes:
-
Band saw
-
Cold saw
-
Plasma cutter
-
Shear
Cutting generates debris and sparks.
It should be:
-
Near material storage
-
Away from assembly and finishing
-
Well ventilated
Avoid placing cutting operations in central traffic paths.
Keep offcuts and scrap bins nearby to maintain cleanliness.
Forming Area (Press Brake)
Press brakes require:
-
Clearance for long sheets
-
Straight feed-in path
-
Room for operator movement
Avoid placing press brakes:
-
Against walls that restrict material length
-
In narrow aisles
Plan for full bed length clearance.
Material flow should move directly from cutting to forming.
Machining Area
CNC mills and lathes require:
-
Stable floor space
-
Electrical access
-
Coolant containment
-
Tool storage
Keep machining areas:
-
Isolated from grinding dust
-
Organized with tooling nearby
-
Clear of heavy welding debris
Clean environments improve machine longevity and accuracy.
Welding Area
Welding generates:
-
Fumes
-
Spatter
-
Heat
-
Sparks
The welding zone should include:
-
Ventilation
-
Fire-resistant surfaces
-
Clear access to power
Avoid placing welding directly next to machining centers.
Protect sensitive equipment from spatter and debris.
Grinding and Finishing
Grinding is messy.
Dust and sparks travel.
Keep grinding stations:
-
Away from precision equipment
-
Near welding area
-
Properly ventilated
Containment reduces contamination.
Assembly and Staging
Assembly requires:
-
Flat surfaces
-
Clear space
-
Access to hardware
It should be:
-
Downstream from fabrication processes
-
Close to shipping
Avoid assembling in cutting or welding zones.
Final assembly should feel controlled, not chaotic.
Shipping and Finished Goods
Finished goods staging should:
-
Be near exits
-
Not block production
-
Have labeled space
Mixing finished parts with raw material creates confusion and potential damage.
Clear separation improves accountability.
Material Handling Efficiency
Material movement consumes time.
Minimize:
-
Long carries
-
Forklift travel
-
Backtracking
Use:
-
Carts
-
Roller tables
-
Dedicated pathways
Shorter travel equals higher efficiency.
Aisle Width and Safety
Crowded shops slow down work.
Ensure:
-
Clear walking paths
-
Forklift clearance
-
Emergency exits unobstructed
Aisles should not double as storage.
Safety improves productivity.
Electrical and Air Infrastructure
As shops grow, layout must consider:
-
220V outlets
-
Air drops
-
Cable routing
-
Hose management
Avoid:
-
Extension cord dependence
-
Air hose tangles
-
Power cords across walkways
Install overhead drops where possible.
Infrastructure supports clean layout.
Lighting Matters
Fabrication requires visual clarity.
Poor lighting leads to:
-
Mistakes
-
Rework
-
Eye fatigue
Ensure:
-
Task lighting at weld stations
-
Even overhead lighting
-
Shadow reduction
Lighting affects quality as much as equipment.
Simple Layout Rules
If operators walk more than necessary → Rearrange.
If materials cross paths frequently → Reevaluate flow.
If scrap accumulates in aisles → Redesign storage.
If workflow feels chaotic → Zones likely unclear.
Layout problems show up as friction.
Scaling from Garage to Production
Garage layouts are often reactive.
Production layouts are intentional.
As you grow:
-
Add defined zones
-
Create material flow direction
-
Remove bottlenecks
-
Expand staging areas
Layout evolves with capacity.
Don’t let growth happen randomly.
When to Redesign Your Shop Layout
Redesign when:
-
Adding major equipment
-
Increasing production volume
-
Experiencing congestion
-
Hiring additional operators
Periodic reassessment prevents inefficiency creep.
Common Layout Mistakes
-
Machines placed by convenience
-
Material storage scattered
-
No separation between dirty and clean processes
-
Overcrowded center floor
-
Ignoring future expansion
Fixing layout early saves costly rework later.
Honest Disqualifier
If your shop:
-
Handles occasional small projects
-
Has minimal equipment
-
Doesn’t experience congestion
Major redesign may not be necessary.
But planning ahead prevents future problems.
FAQ
What is the best layout for a fabrication shop?
One that follows process flow from raw material to shipping.
How much space do I need around a press brake?
Enough clearance for full material length plus operator movement.
Should welding be near machining?
No — isolate to prevent contamination.
How wide should aisles be?
Wide enough for safe movement and material handling equipment.
Final Takeaway
Shop layout for metal fabrication directly impacts:
-
Productivity
-
Safety
-
Workflow
-
Profitability
Organize your shop around:
Material flow
Defined zones
Clear pathways
Infrastructure planning
Future growth
Reactive layouts create friction.
Intentional layouts create efficiency.
In fabrication, time is money.
And your floor plan determines how much of it you waste.
