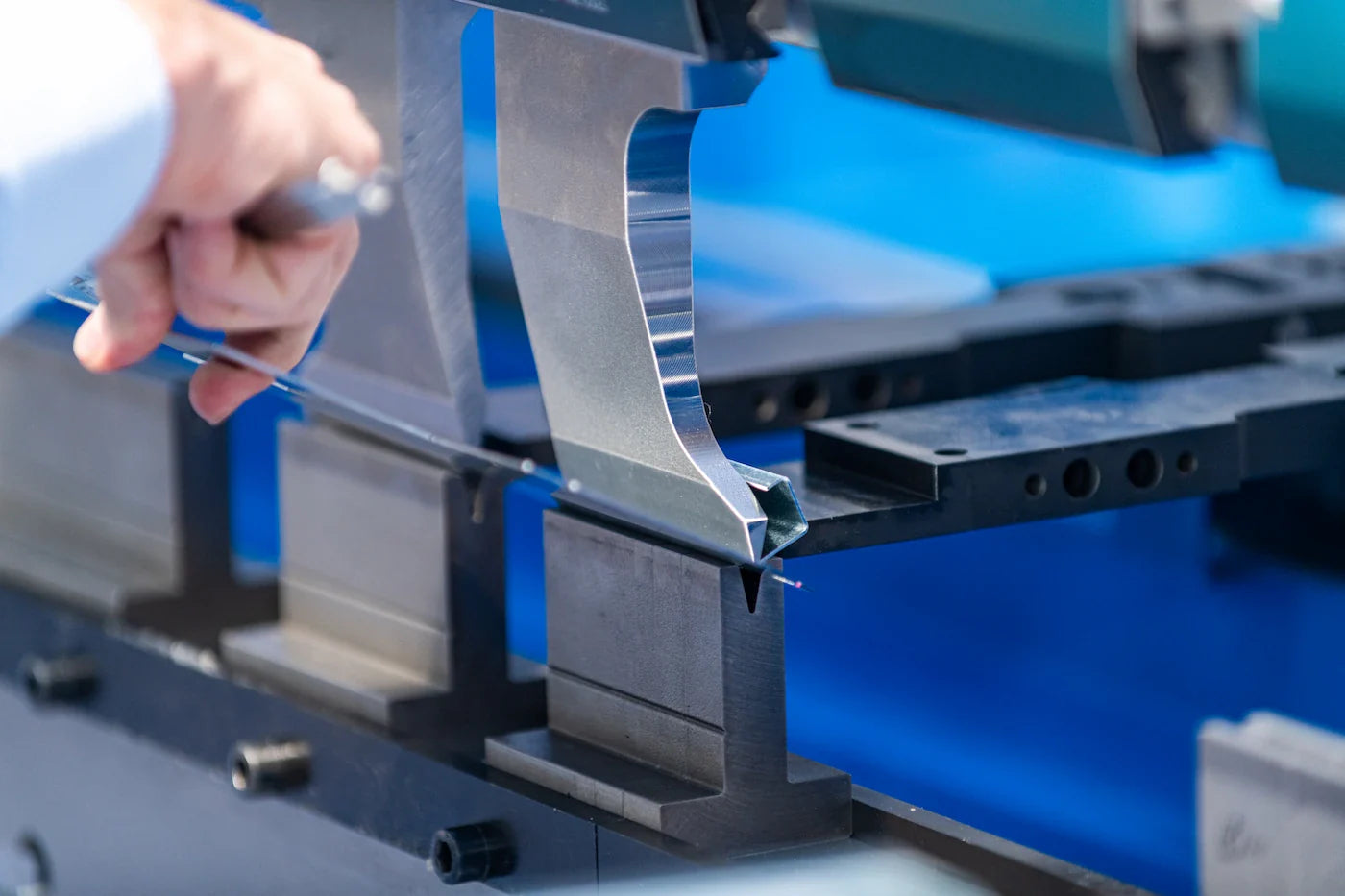

Buying the wrong press brake size creates problems you feel immediately.
Too small, and you’re re-positioning parts, fighting deflection, and turning down work.
Too large, and you’ve tied up capital in capacity you don’t use — while slowing down small-part production.
When people search “what size press brake do I need?” they usually focus on tonnage.
But tonnage is only half the decision.
Bed length, usable capacity, deflection control, and real-world part mix matter just as much.
This guide breaks down how to choose the correct press brake bed length and capacity based on actual shop workloads — not brochure specs.
What “Press Brake Size” Actually Means
Press brake size typically refers to:
-
Tonnage rating (force capacity)
-
Bed length (working length)
-
Open height
-
Throat depth
-
Ram stroke
Most buyers only compare tonnage.
That’s a mistake.
A 135-ton brake with an 8-foot bed behaves very differently than a 135-ton brake with a 12-foot bed.
Capacity must be evaluated per foot — not as a single number.
Step 1: Determine Your Maximum Bend Length
Before discussing tonnage, start with length.
Ask:
-
What is the longest part I bend regularly?
-
What is the longest part I expect within 12–24 months?
-
Do I run full-length bends or segmented bends?
If your longest recurring part is 96", you need a machine capable of handling that — without repositioning.
Repositioning introduces:
-
Alignment error
-
Time loss
-
Inconsistent angles
Bed Length vs Part Length
Important distinction:
A 10-foot press brake does not guarantee 10 feet of usable bending space.
You must account for:
-
End stops
-
Tooling overhang
-
Clearance at frame sides
Real usable length is slightly less than advertised.
Build margin.
Step 2: Understand Tonnage Per Foot
Press brake tonnage must be divided across the length of the bend.
Example:
135-ton brake
10-foot bed
That equals:
13.5 tons per foot average capacity
If bending 1/4" steel requires ~50 tons per foot, you cannot bend 10 feet of 1/4" on that machine.
You can bend shorter sections — but not full length.
This is where buyers get trapped.
Best For / Not For
This Guide Is Best For:
-
Fabrication shops upgrading brakes
-
Buyers comparing 8', 10', and 12' machines
-
Shops moving into thicker material
-
Owners expanding structural capabilities
Not For:
-
Hobby press brake buyers
-
CNC micro-bending operations
-
Ultra-heavy industrial forming (500+ ton class)
This focuses on small-to-mid fabrication shops.
Common Press Brake Length Classes
6–8 Foot Brakes
Best for:
-
Brackets
-
Small panels
-
Light fabrication
-
HVAC work
Advantages:
-
Lower cost
-
Smaller footprint
-
Faster setup for short parts
Limitations:
-
Cannot handle long panels
-
Limited structural capability
10-Foot Brakes (Most Common)
Best for:
-
General fabrication
-
Mixed work
-
Structural light plate
-
Commercial metal projects
Advantages:
-
Balanced flexibility
-
Handles most standard sheet lengths
-
Strong resale value
Most job shops land here.
12-Foot Brakes
Best for:
-
Long panels
-
Structural plate
-
Architectural components
-
Custom large assemblies
Advantages:
-
Expanded capacity
-
Growth flexibility
Downside:
-
Higher cost
-
Larger footprint
-
More deflection concerns
Step 3: Match Bed Length to Real Jobs
Ask yourself:
Do I bend full-length panels often?
If yes, buy for that.
If you only occasionally bend long parts, consider subcontracting instead of oversizing.
Oversizing for rare jobs hurts ROI.
Throat Depth and Why It Matters
Throat depth determines how far into a part you can bend.
If you fabricate:
-
Deep channels
-
Large box sections
-
Offset flanges
You need sufficient throat depth.
Standard brakes often have 7–10" throat.
For large parts, this becomes limiting.
Open Height and Stroke
Open height impacts:
-
Tall part bending
-
Box and pan work
-
Multi-bend assemblies
If you bend tall formed pieces, verify open height clearance.
Stroke length affects:
-
Tool changes
-
Setup flexibility
-
Deep die usage
Don’t ignore vertical capacity.
Simple Decision Rules (If X → Then Y)
If your longest part is 6 feet → 8-foot brake likely enough.
If your longest recurring part is 9–10 feet → 10-foot minimum.
If you bend architectural panels → 12-foot brake preferred.
If you only bend brackets under 24" → don’t oversize.
If you bend 1/4" full length at 10 feet → 175-ton class minimum.
If you bend 3/8" structural at 12 feet → 220-ton+ class.
The Deflection Problem
Longer brakes deflect more under load.
Even if tonnage is sufficient, without compensation:
-
Center angle opens
-
Ends overbend
-
Parts become inconsistent
Long beds require:
-
Crowning systems
-
Proper machine mass
-
Frame rigidity
Length increases mechanical stress.
Bigger isn’t automatically better.
Comparing 135-Ton 10-Foot vs 175-Ton 12-Foot
135-Ton 10-Foot
Best for:
-
Mixed fabrication
-
1/4" plate up to moderate lengths
-
Standard sheet sizes
Lower cost, manageable footprint.
175-Ton 12-Foot
Best for:
-
Structural plate
-
Long architectural panels
-
Growth flexibility
Higher cost, larger space requirement.
If 90% of your work fits under 8 feet, the 12-foot machine may be unnecessary.
Production Efficiency vs Maximum Size
Larger brakes:
-
Cycle slower
-
Require more floor space
-
Increase energy usage
If you primarily bend small parts, a large brake reduces efficiency.
Correct sizing improves throughput.
Tooling Considerations
Bed length affects tooling cost.
Longer brakes require:
-
Longer dies
-
More expensive tool segments
-
Larger storage systems
Tooling expense scales with machine length.
Budget accordingly.
Shop Space and Infrastructure
A 12-foot press brake requires:
-
Reinforced floor
-
Adequate electrical service
-
Rigging access
-
Clearance behind and in front
Space limitations alone may eliminate larger machines.
Measure shop before shopping.
Future Growth vs Present Reality
Buy for:
-
Real recurring workload
-
Reasonable projected growth
-
Confirmed contracts
Don’t buy for hypothetical jobs.
Adding 10–20% margin is smart.
Doubling capacity is usually not.
When to Go Larger Than Needed
Go larger if:
-
You have steady long-panel work
-
Structural contracts are increasing
-
Growth is proven
-
You want to eliminate subcontracting
But only when volume supports it.
When to Stay Smaller
Stay smaller if:
-
Most parts are under 4 feet
-
Shop space is limited
-
Cash flow is tight
-
Structural work is occasional
Capital tied up in oversized equipment restricts flexibility.
Real-World Example
Shop A:
Bends 1/8"–3/16" panels under 5 feet.
Buys 12-foot 220-ton brake.
Outcome:
-
Underutilized capacity
-
Slower small part cycles
-
Higher overhead
Shop B:
Bends 10-foot architectural panels weekly.
Buys 8-foot brake.
Outcome:
-
Repositioning errors
-
Lost contracts
-
Customer frustration
Correct sizing prevents both problems.
FAQ
What size press brake do I need?
Size it based on longest recurring part and required tonnage per foot.
Is 10-foot brake enough?
For most general fabrication shops, yes.
Should I buy bigger for safety?
Add reasonable margin — not extreme excess.
Does longer bed reduce accuracy?
Without proper crowning, yes.
How much tonnage do I need?
Depends on thickness, die opening, and length.
Honest Disqualifier
If your shop:
-
Only bends brackets
-
Rarely exceeds 36" length
-
Has limited floor space
-
Operates on tight margins
A 12-foot press brake is overkill.
If you routinely bend long structural components, an 8-foot brake will limit you.
Match machine to work.
Final Takeaway
Choosing the right press brake size requires evaluating:
-
Maximum part length
-
Average part length
-
Tonnage per foot requirements
-
Throat depth
-
Open height
-
Shop space
-
Growth trajectory
Focus on real workload data.
Divide tonnage by bed length.
Build modest margin.
Avoid buying based on maximum thickness claims alone.
Correctly sized press brakes:
-
Improve accuracy
-
Increase productivity
-
Reduce rework
-
Protect capital
Bigger is not better.
Correctly matched is better.
